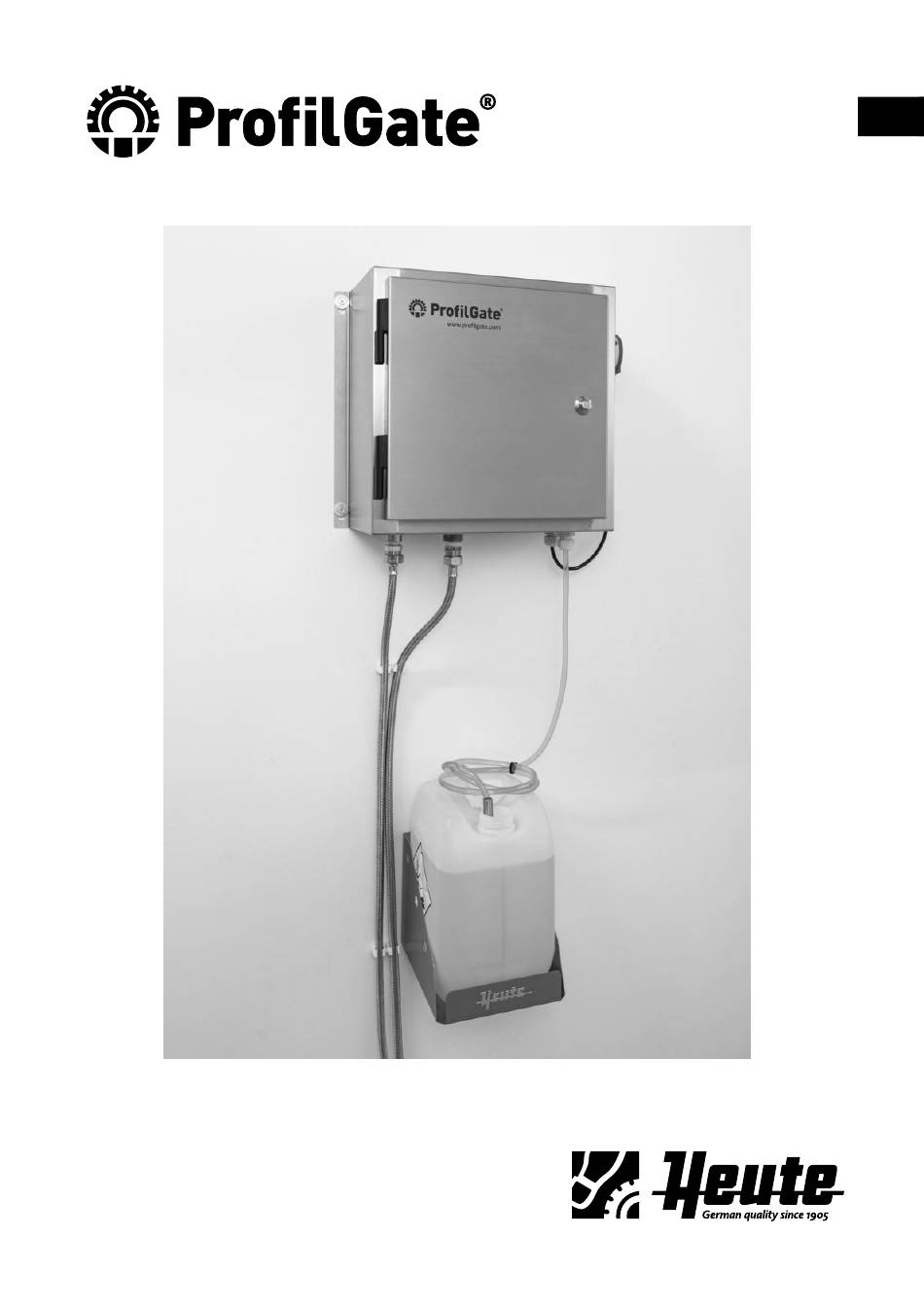

- Page 1 Operating Manual ProfilGate® Dosing station...
-
Page 2: Dimensions And Views
Dimensions and views Inlet cleaning/disinfection liquid Electronic conection 1x230V/N/PE Water inlet 3/4" Filling 1/2" Technical data ProfilGate® aqua Dosing station Art.-Nr. 005-9520 Min./Max. Water Pressure (bar) 2,0 - 4,5 bar Water Intake Pipe 3/4 " ProfilGate®Tray Filling Pipe 1/2 " Max. -
Page 3: Important - Read First
The ProfilGate dosing station of HEUTE Maschinenfabrik is built and and the CE mark are immediately invalidated. tested according to the current safety regulations. The proper function and operational safety can only be guaranteed if the Always use the machine indoors only. -
Page 4: Table Of Contents
Welcome Authorized representative Steffen Moersch, same address as manufacturer. Dear customer, thank you for purchasing our HEUTE dosing station. These operating instructions are part of the machine and contain Christian Löwe (Managing Director) important information on commissioning, operation, maintenance. HEUTE Maschinenfabrik GmbH & Co. KG... -
Page 5: Installation And Commissioning
Installation and commissioning Water connections The supply with fresh water is carried out by means of pipe Set up laying at the 3/4" connection with water pressure 2.0 - 4.5 bar (min./max.), according to Fig. 2. The dosing station does not The dosing station is factory-set for fixing to a building wall. -
Page 6: Default Setting And Operation
To achieve the desired water/liquid concentration, the Electrical connection appropriate nozzle must be selected - see Venturi injector setting 230 V AC 50 Hz with input fuse 2,5A mt. (table below). The information in the table applies exclusively as Make absolutely sure that the required supply guide values to facilitate the selection of the nozzle of the desired voltage matches the voltage provided in your concentration. -
Page 7: Cleaning
Cleaning The intervals at which the dosing station should be cleaned (flushed) depend on the operating circumstances. Shorter cleaning intervals should be selected in the case of a high degree of use. Dosing system - rinsing We recommend flushing the system for the additional liquid on a regular basis. -
Page 8: Circuit Diagram
Circuit diagram... -
Page 9: Instruction Time Switch
Time switch AlphaRex 3 D21 - 1-channel 4 126 31 / 32 / 33 - 047 61 / 63 / 6047 60 ® Safety notes This product should be installed in line with installation rules, preferably by a qualified electrician. Incorrect installation and use can lead to risk of electric shock or fire. - Page 10 Supply voltage Overview of programmed switching times for the week. Resolution 0.5h 0 0 0 0 0 Function Switch status Receptacle for data key Day, Time, Date max. 16 A max. 250 V AC Operating principle: Typ 1.B. S. T. 600 W 70 μF 2000 VA 2000 W...
- Page 11 Set time/date, summertime/wintertime ³ Set language Summertime: ± 1 hour Europe: Factory set SPECIAL: The switchover to/from summertime can be freely programmed by entering a start date and end date and is then executed each year on the same day of the week, e.g.
- Page 12 Modes Auto - Automatic operation • • Constant ON • Constant OFF • Extra The switch status imposed by the program is inverted (manual override). With the next effective switch command, the time switch resumes control of on/off switching. Contrast Adjustment ²...
- Page 13 º Hour counter Displays the total relay ON time, (0 to 65535 h) and the date of the last reset. ¾ Random function • Power grid synchronisation to improve the accurac • Cycle functio • Automatic channel switchin Function to simulate presence. Function active: the programmed switching cycles are shifted at random within the range of ±...
- Page 14 ¹ Holiday After activation the holiday program is executed between 0:00h on the start date and 24:00h on the end date (Constant ON/OFF). After the holiday program has run once, it must be reactivated. Activating and deactivating grid synchronisation Only available in EXPERT mode. The default setting is PASSIVE.
- Page 15 15:30:00 15:00:00 15:10:00 15:20:00 0:10:00 0:10:00 0:10:00 15:32:00 Program n Program 1 Relais Chanal 1 0:04:00 0:04:00 0:04:00 Warning: Elektrical shock - Disconnect all power from the device before Reset dismantling the module and replacing the battery. Always use a Li cell type battery (LiMnO 2 ) CR2477, 3V high temperature Warning! type min +85 °C The memory will be cleared, and all...
- Page 16 This manual is protected by copyright. All rights reserved. Copying, reproduction, translation or conversion into any electronic medium or machine-readable form in whole or in part is only permitted with the express written consent of HEUTE Maschinenfabrik GmbH & Co. KG is permitted.
