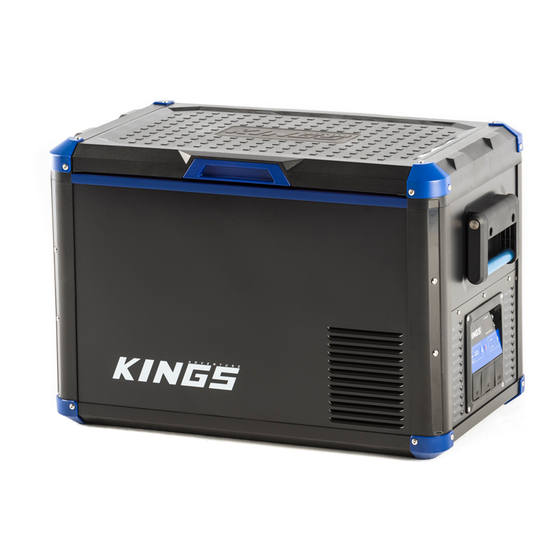

- Page 1 USER MANUAL 45L, 60L, 75L & 90L FRIDGE/FREEZERS SKU’S: AKFR-FR45L001, AKFR-FR60L001, AKFR-FR75L_01 & AKFR-FR90L_02...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY 2. SPECIFICATIONS 2.1 Single Zone 2.2 Dual Zone 3. DIMENSIONS 3.1 45L Fridge/Freezer 3.2 60L Fridge/Freezer 3.3 75L Fridge/Freezer 3.4 90L Fridge/Freezer 4. OVERVIEW 5. INSTALLATION 6. POWER MANAGEMENT 7. BATTERY MONITOR/PROTECTION 8. CONNECTION INFORMATION 8.1 DC Connection 8.2 AC Connection 9. -
Page 3: Safety
1. SAFETY • Please read the user manual and safety instructions carefully before using the appliance. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Specifications
2. SPECIFICATIONS 2.1 SINGLE ZONE AKFR-FR45L001 AKFR-FR60L001 MODEL # FCD45K FCD60K EXTERNAL DIMENSIONS 713 x 405 x 461 mm 768 x 470 x 461 mm NET WEIGHT 23.6kg 25.3kg COOLING SYSTEM SECOP BD35F INSTALLED POWER SUPPLY VOLTAGE DC 12V/24V, AC 100-240V TEMPERATURE SETTING -18°C to +10°C... -
Page 5: Dimensions
3. DIMENSIONS 3.1 45L FRIDGE/FREEZER 3.2 60L FRIDGE/FREEZER 3.3 75L FRIDGE/FREEZER 3.4 90L FRIDGE/FREEZER V1.4... -
Page 6: Overview
4. OVERVIEW NUMBER ITEM Lid Latches Control Panel Carry Handle DC Power Input Panel AC Power Input Panel 12V/24V DC Power Cable 240V AC Power Cable V1.4... -
Page 7: Installation
5. INSTALLATION It is important that your appliance is installed and operated in accordance with the manufacturers instructions to guarantee the performance, efficiency and operation. • Position the appliance in a safe and secure location. Limit exposure to heat sources or direct sunlight which can affect the units’ performance and efficiency. -
Page 8: Connection Information
8. CONNECTION INFORMATION 8.1 DC CONNECTION The unit is equipped with an electronic control system that will prevent polarity reversal. In the event that the battery connection is reversed, the unit will not start or operate. The power inlet socket is fitted with a 15A fuse for protection. Plug the 12/24V connection cable into the DC voltage socket on the rear and then connect it to the cigarette lighter or a suitable 12V or 24V power source. -
Page 9: Powering On
9. POWERING ON Connect to the desired input voltage and press and hold the button for 2-3 seconds to turn the unit on, the display will show the current internal fridge temperature. 10. CELSIUS/FARENHEIT FUNCTION When the appliance is on, press the buttons (positioned at right side of control panel) at the same time to enter the Celsius and Fahrenheit function menu. -
Page 10: Adjusting The Temperature
12. ADJUSTING THE TEMPERATURE 12.1 SINGLE ZONE The Temperature Controller provides the ability to set the desired temperature level and displays information on the cabinet and set temperature. When your appliance is first connected to AC or DC input the digital read out will show the current cabinet temperature, to adjust the temperature follow these steps: To increase the cabinet temperature press... -
Page 11: Power Tips
36 – 48 Hours before your trip the unit should be running. All Adventure Kings Fridge/Freezers have either a 240 Volt connection built in or via the included external 240 Volt adapter. The fridge is no more or less efficient on 12 or 240 Volt power but to ensure your batteries are fully charged, ideally use the 2 days before your trip to cool your fridge and contents, this is an ideal time to make sure the battery your fridge will be running from is fully charged. -
Page 12: Differential
16. DIFFERENTIAL A differential is the measurement between the hottest and coldest part of a cooling cycle. Common differentials can be 2 – 5ºC, meaning the difference between the warmest and coldest part of a cooling cycle could be up to 5ºC. This is not a product fault and the same measurement exists for your fridge at home. -
Page 13: Troubleshooting
18. TROUBLESHOOTING 18.1 FRIDGE TROUBLESHOOTING FLOW CHART Fridge concern is not cooling, running for only a short period, error code shown etc. STEP The above concerns can have several causes. The following helps confirm where the issue lies. Rest the fridge. If the fridge has turned on and off too quickly, a number of errors can occur. Disconnect STEP the fridge from all power sources for 15 Minutes. -
Page 14: Warranty
19. WARRANTY 60 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 60 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
