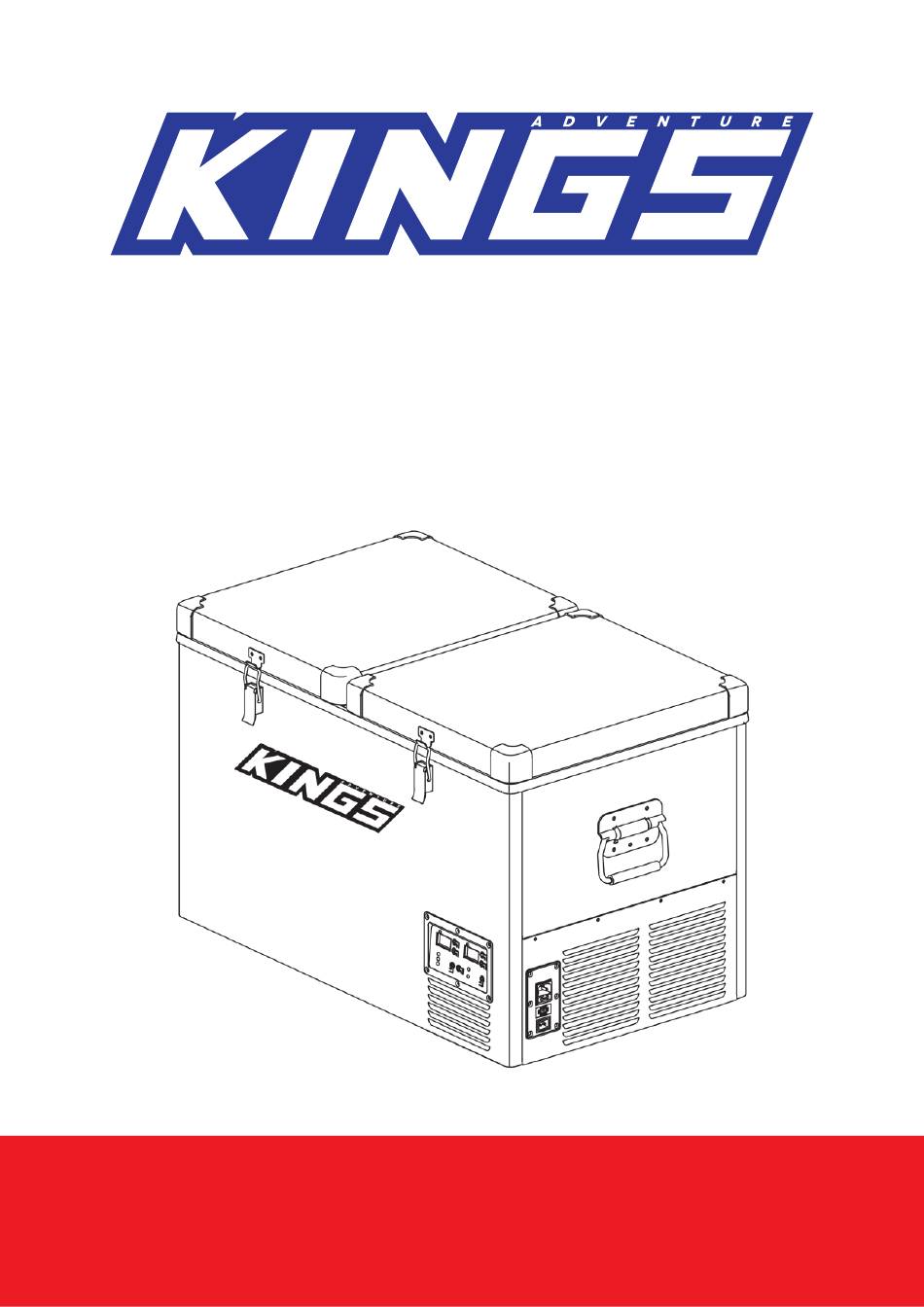

- Page 1 70L Fridge USER MANUAL AKFR-FR70L_01 V1.8 YCD70K PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY 2. OVERVIEW 3. INSTALLATION 4. POWER MANAGEMENT 4.1 POWER REQUIREMENTS 4.2 DISTANCE CABLE GAUGE FOR DC INPUT 5. CONNECTION INFORMATION 5.1 DC CONNECTION 5.2 AC CONNECTION 6. POWERING ON 7. ADJUSTING THE TEMPERATURE 8. MAX/MIN SETTING 9. BATTERY MONITOR/PROTECTION 10. -
Page 3: Safety
1. SAFETY • Do not operate the fridge if it is visibly damaged. • The fridge may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards. • Should your fridge need to be repaired, please contact customer service. •... -
Page 4: Overview
2. OVERVIEW 1. Lid latches 2. Control Panel 3. Carry Handle 4. Power Input Panel 5. 12V/24V DC power cable 6. 240V AC Power cable 7. Drain plug... -
Page 5: Installation
3. INSTALLATION It is important that your appliance is installed and operated in accordance with the manufacturers instructions to guarantee the performance, efficiency and operation. • Position the appliance in a safe and secure location. Limit exposure to heat sources or direct sunlight which can affect the units’... -
Page 6: Connection Information
5. CONNECTION INFORMATION 5.1 DC CONNECTION: The unit is equipped with an electronic control system that will prevent polarity reversal. In the event that the battery connection is reversed, the unit will not start or operate. The power inlet socket is fitted with a 15A fuse for protection. Plug the 12/24V connection cable into the DC voltage socket on the rear and then connect it to the cigarette lighter or a suitable 12V or 24V power source. -
Page 7: Powering On
6. POWERING ON Connect to the desired input voltage and press and hold the on/off button for 2-3 seconds to turn the unit on, the display will show the current internal fridge temperature. 7. ADJUSTING THE TEMPERATURE The temperature controller provides the ability to set the desired temperature level and displays information on the fridge and set temperature. -
Page 8: Battery Monitor/Protection
4. If ice forms on the Internal walls or lid, defrost the appliance. 5. Select the desired temperature in relation to the intended use, avoid setting unnecessarily low temperatures. 11. SPECIFICATIONS MODEL: YCD70K GROSS CAPACITY: 70 Litres EXTERNAL DIMENSIONS: 790 (H) x 465 (W) x 515 (D) -
Page 9: 12. Warranty Card
24 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 24 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
