Fast XFI eDash Instructions Manual

Thank you for choosing FAST
read this instruction sheet carefully before beginning installation, and also take a moment to review the
included limited warranty information. Contact us toll free at 1.877.334.8355 or at
www.fuelairspark.com
QTY
1
1
1
1
1
1
eDash Notes
• The mini-USB port on the top of the eDash is used to connect the eDash to a computer in the
event that an eDash update becomes available. The supplied USB cable is not used in normal
operation of the eDash.
• Please do not attempt to operate the eDash while driving. For safety, have a passenger monitor
live data or adjust settings as needed if the vehicle is moving.
• The eDash is compatible with mounting brackets that fit a Garmin Nuvi 2455LT GPS unit. A
suction cup mount for the eDash is included in the kit.
The eDash has a touch screen calibration procedure that can be accessed by pressing and
•
continuing to hold anywhere on the screen as the eDash is powered on. After about 4 seconds,
the calibration screen will appear and walk you through the short calibration process. The
purpose of this calibration is to sync up the touch sensitive screen with the graphics on the
display so that where you see a "button" on the screen is also where you need to touch to select
Toll Free: 1.877.334.8355
www.fuelairspark.com

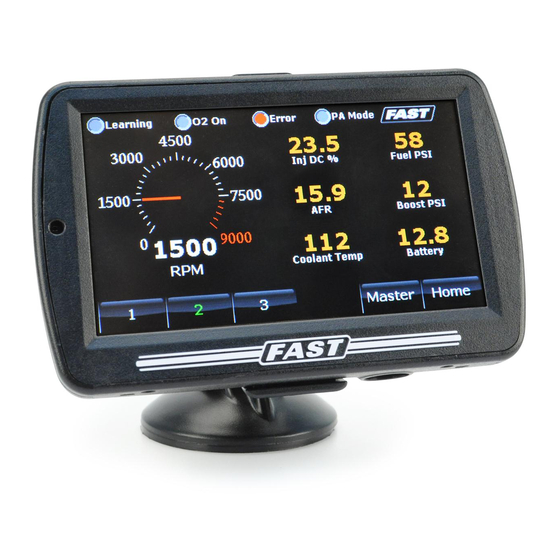

XFI eDash
PN 301517
™
products; we are proud to be your manufacturer of choice. Please
under Tech Help with any questions.
PART#
301517B
30310
30319 Handheld Cable to CALPORT Adapter
30321
30493
170671
3400 Democrat Rd.
Memphis, TN 38118
Phone: 901.260.3278
DESCRIPTION
eDash
Handheld Cable
nd
XFI 2 Comm Port Pigtail
Suction Cup Mount
USB Cable, A to Mini-B
™
FAST
INSTRUCTIONS
Part # FAST4-207
Part #???
Revised 6/16/14
Revised ??????
1
