SCALE-TEC POINT Quick Start Manual

QUICK START GUIDE:
Use this Quick Start Guide to help you get set up and running
immediately. Refer to our online help center at scale-tec.com for
more information on operating your POINT scale indicator.

PACKAGE CONTENTS

Quick Start Guide POINT Unit
1 2
POINT®
Quick Start Guide
7602008 - REVD
3 Adapter Module

TOOLS REQUIRED

1 #4 Phillips Screwdriver 2 Android 7.0 or iOS 12.2 Device
*NOTE
POINT mobile app and internet
connectivity to Android or iOS
device is required for initial set
up. However, internet service
(Cellular data/WiFi) is not
needed to function in the field.

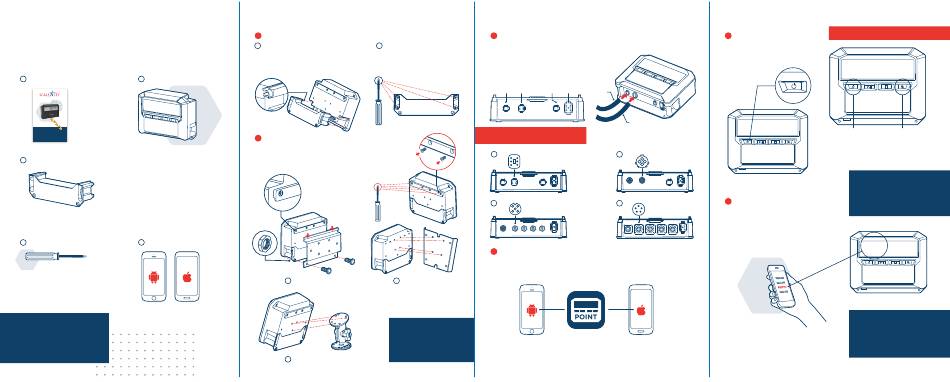

PRODUCT SETUP

1

ASSEMBLE UNITS

1 Remove both the POINT unit and adapter When the adapter is flush and
2
module from packaging. Slide the adapter in place, use a #4 Phillips
module into the rails located on the back screwdriver and tighten the 4
and bottom of the POINT unit. captive screws.
2

MOUNTING OPTIONS

The POINT unit mounts to three different systems:
Rail Mount, V-Plate Mount & Ram Mount. Refer to the
illustration below that matches the mount you have.
1 Rail Mount 2 V-Plate Mount
*NOTE
To mount the Ram Mount,
remove the hardware from
the Rail Mount and secure
the Ram Mount to the rear
of the enclosure.
3 Ram Mount
3

CABLE CONNECTIONS

Plug power and load cell cables into the
Adapter Module. Refer to the connector cable
that matches your specific adapter module (as
indicated on packaging). Do not turn on the
unit until you have completed Step 4.
GPS Auxiliary
Power Load
Cell Port Port
Power
Cable
Load Cell
Cable
ADAPTER MODULE LOAD CELL
CONNECTOR CONFIGURATIONS
DT6 AMP
1 2
M12 CROWN
4
3
4

APP DOWNLOAD

Your mobile device must be connected to the internet
to complete this step. Download the Scale-Tec
POINT mobile app. Register and log into the app.
Scale-Tec
ANDROID iOS
POINT
Search for "Scale-Tec Search for "Scale-Tec
POINT" to download from POINT" to download from
the Google Play Store. the Apple App Store.

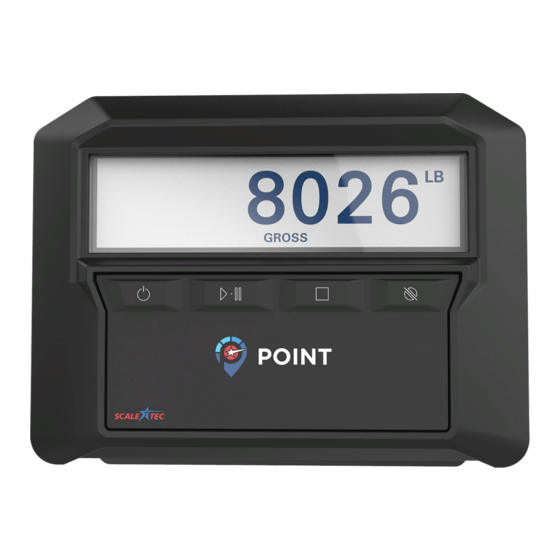

BASIC INDICATOR OVERVIEW

5

POWER ON

Press the power button to
power on the device.
Power Button Zero Button
Press to power on. Press and hold
Press and hold for 3 for 3 seconds to
seconds to power off. zero the scale.
*NOTE
If the POINT unit displays
UNLOAD or LOAD at the bottom
of the screen on initial power up,
6

ACTIVATE DEVICE WITH APP

press the square stop button to
place POINT into Gross Mode.
To correctly calibrate POINT, it is required
to connect your profile to your POINT unit
through the mobile app. Open the POINT
app on your mobile device and follow the
on-screen prompts to create your profile
#XXXX-XXX
and complete the setup process.
*NOTE
After connecting to POINT, you
will be notified if there is a
WARNING: Never charge your
firmware update available. If you
tractor battery with POINT
see this notification, follow the
connected to power source.
prompts to install the update.
This will void your warranty.
