Technical Specifications
Optical Inputs
2 x fiber optic Inputs
Duplex (Singlemode) using LC/PC Connectors
SMPTE 297M - 2006
Hot pluggable
Input range (wavelength) 1260nm to 1620nm
RX sensitivity -10dBm / -9dBm @ 12Gbit/s
RX active LEDs on side of module
SMF (Singlemode) fiber
SDI Outputs
2 x SDI video on 75 Ohm BNC connector
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
Multi-standard operation from 1.5Gbit/s to 12Gbit/s
Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
+12VDC power supply (included)
( supports external power input from 7 - 24 VDC )
Power LED on side of module
Size
105mm x 40mm x 22mm ( 4.13" x 1.57" x 0.86")
Model #
ORR 1402
Includes
Module, 12V DC power supply and wall mounting
brackets ( fiber optic cable not included)
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®
ORR 1402

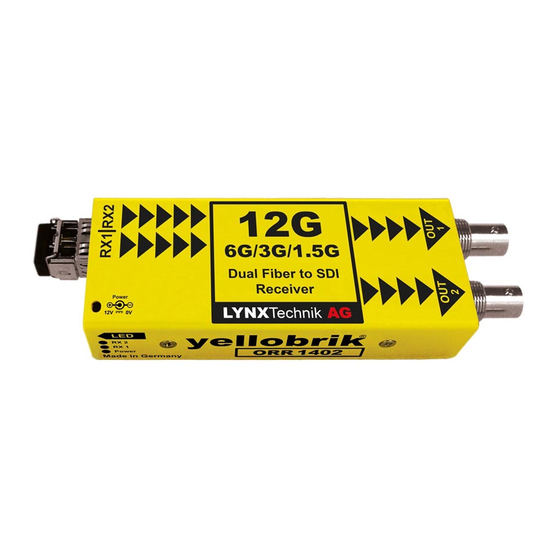

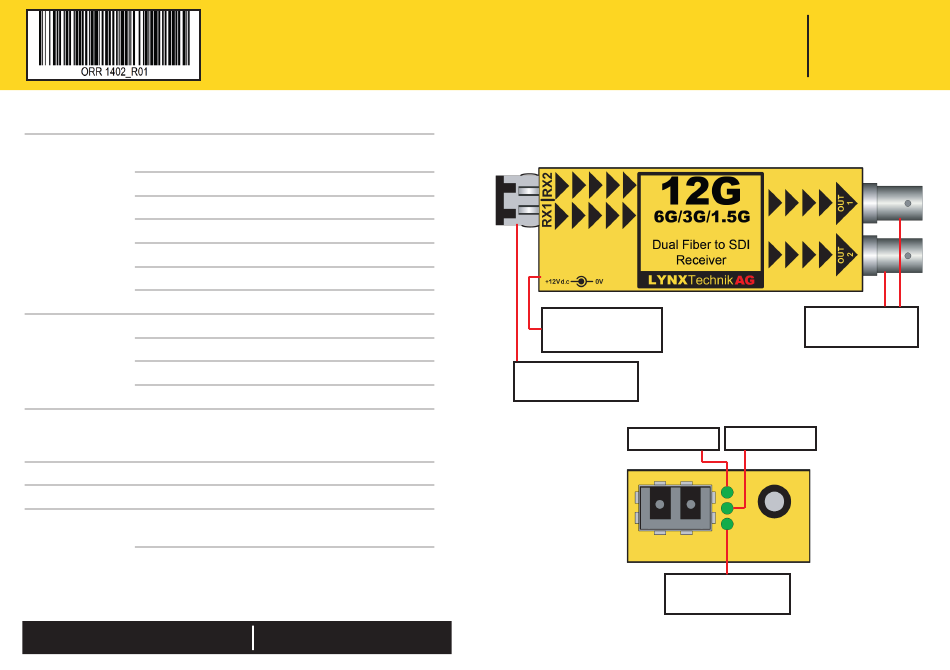

Dual Channel 12Gbit Fiber to SDI Receiver
DC Power Input
LC Fiber Optic
Inputs (2)
Quick
®
Reference
RX 2 Active
RX 1 Active
Power
Connected
SDI Video
Outputs (2)
