Technical Specifications
Optical Inputs
2 x fiber optic Inputs
Duplex (Singlemode) using LC/PC Connectors
SMPTE 297M - 2006
Hot pluggable
Input range (wavelength) 1260nm to 1620nm
RX sensitivity -3dBm to -16dBm
RX active LEDs on side of module
SMF (Singlemode) fiber
SDI Outputs
2 x SDI video on 75 Ohm BNC connector
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
+12VDC power supply (included)
( supports external power input from 9 - 14 VDC )
Power LED on side of module
Size
105mm x 40mm x 22mm ( 4.13" x 1.57" x 0.86")
Model #
ORR 1802
Includes
Module, 12V DC power supply and wall mounting
brackets (fiber optic cable not included)
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment

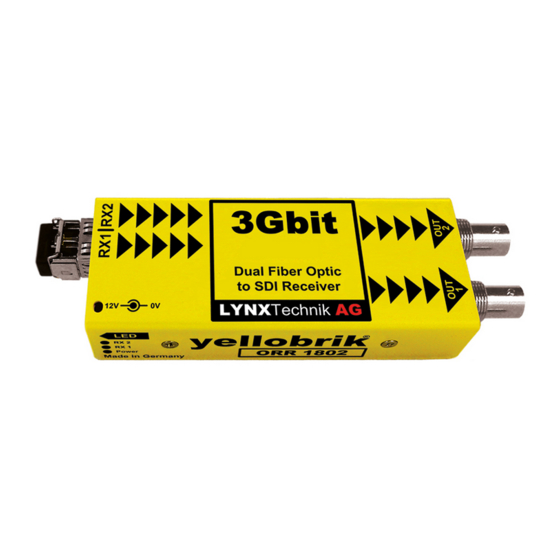

yellobrik
®
ORR 1802
Dual SD/HD/3G Fiber to SDI Receivers
DC Power Input
LC Fiber Optic
Inputs (2)
Quick
®
Reference
RX 1 Active
RX 2 Active
Power
Connected
SDI Video
Outputs (2)
Advertisement
Table of Contents
Related Manuals for LYNXTechnik Yellobrik ORR 1802
Summary of Contents for LYNXTechnik Yellobrik ORR 1802
- Page 1 ORR 1802 Includes Module, 12V DC power supply and wall mounting brackets (fiber optic cable not included) We are constantly adding additional yellobrik modules. Please visit our website for the latest product updates. www.lynx-technik.com Power Connected LYNXTechnik ® Broadcast Television Equipment...
- Page 2 Connections Power Lead Strain Relief The SDI video outputs are connected to the 75 Ohm BNC connections The module has a small hole in the case located above the power (up to 3Gbit). The fiber input connection is LC Duplex SMF connection to prevent the power lead being accidentally pulled out.
