Technical Specifications
Fiber Input
1 x fiber optic Input
LC, ST or SC connection
Singlemode
SMPTE 297M - 2006
Input range (wavelength) 1260nm to 1620nm
RX sensitivity -3dBm to -19dBm
Fiber Input
1 x Fiber Optic Input
LC Connection
Multimode
SMPTE 297M - 2006
Input range (wavelength) 780nm to 880nm
RX sensitivity 0dBm to -15dBm
SDI Output
2 x SDI video on 75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
+12VDC power supply (included)
Supports external power input from 9 - 14 VDC
Power LED on side of module. Power Consumption 1.4W
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik
AG
yellobrik
®
Broadcast Television Equipment
yellobrik
®

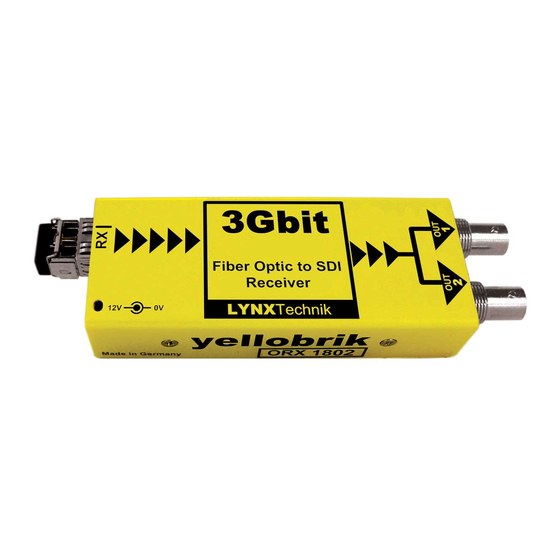

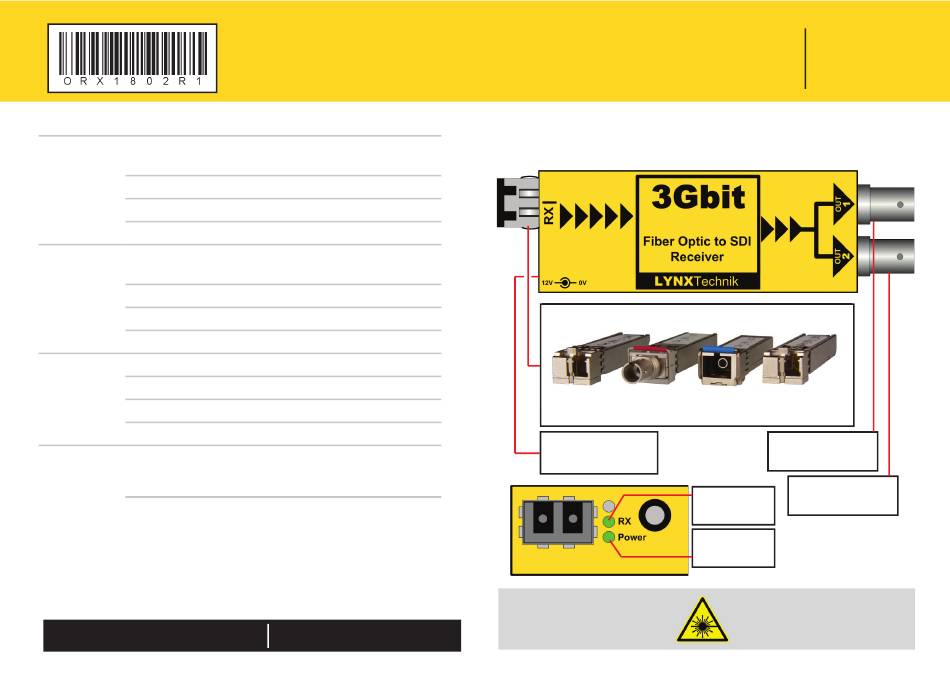

ORX 1802 (LC,ST,SC,MM)
3Gbit Fiber Optic to SDI Receiver
Fiber Input - Four options are available
Fiber Input - Four options are available
LC
LC
Singlemode
Singlemode
DC Power Input
WARNING
WARNING
CLASS 1M LASER PRODUCT
Quick
®
Reference
LC
LC
ST
ST
SC
SC
Multimode
Singlemode
SDI Video
Output 1
SDI Video
Receiving
Output 2
Data
Power
Connected
LASER RADIATION
Do not view directly with
optical instruments
Advertisement
Table of Contents
Related Manuals for LYNXTechnik Yellobrik ORX 1802
Summary of Contents for LYNXTechnik Yellobrik ORX 1802
- Page 1 Data Power Connected We are constantly adding additional yellobrik modules. Please visit our website for the latest product updates. www.lynx-technik.com WARNING WARNING LASER RADIATION Do not view directly with LYNXTechnik ® optical instruments CLASS 1M LASER PRODUCT Broadcast Television Equipment...
- Page 2 Connections Power The SDI video outputs are connected to the corresponding 75 Ohm The module requires a 12V DC power input and a LED is provided to BNC connections provided. The fiber connection is made to the fiber confirm power is connected. A power supply is provided, but if SFP sub module as indicated on the module.
