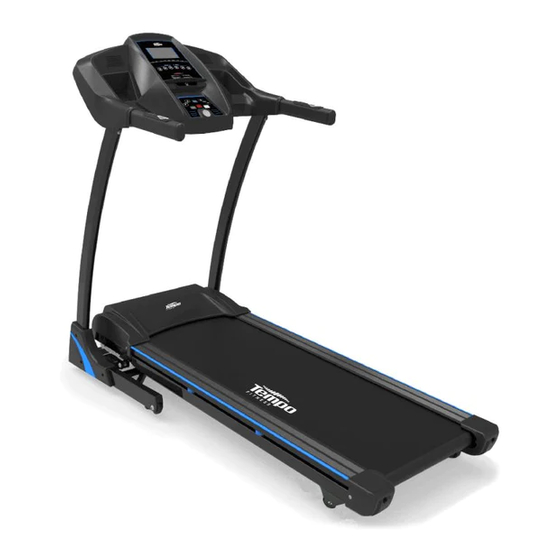

Summary of Contents for JOHNSON HEALTH TECH. Tempo Fitness T106

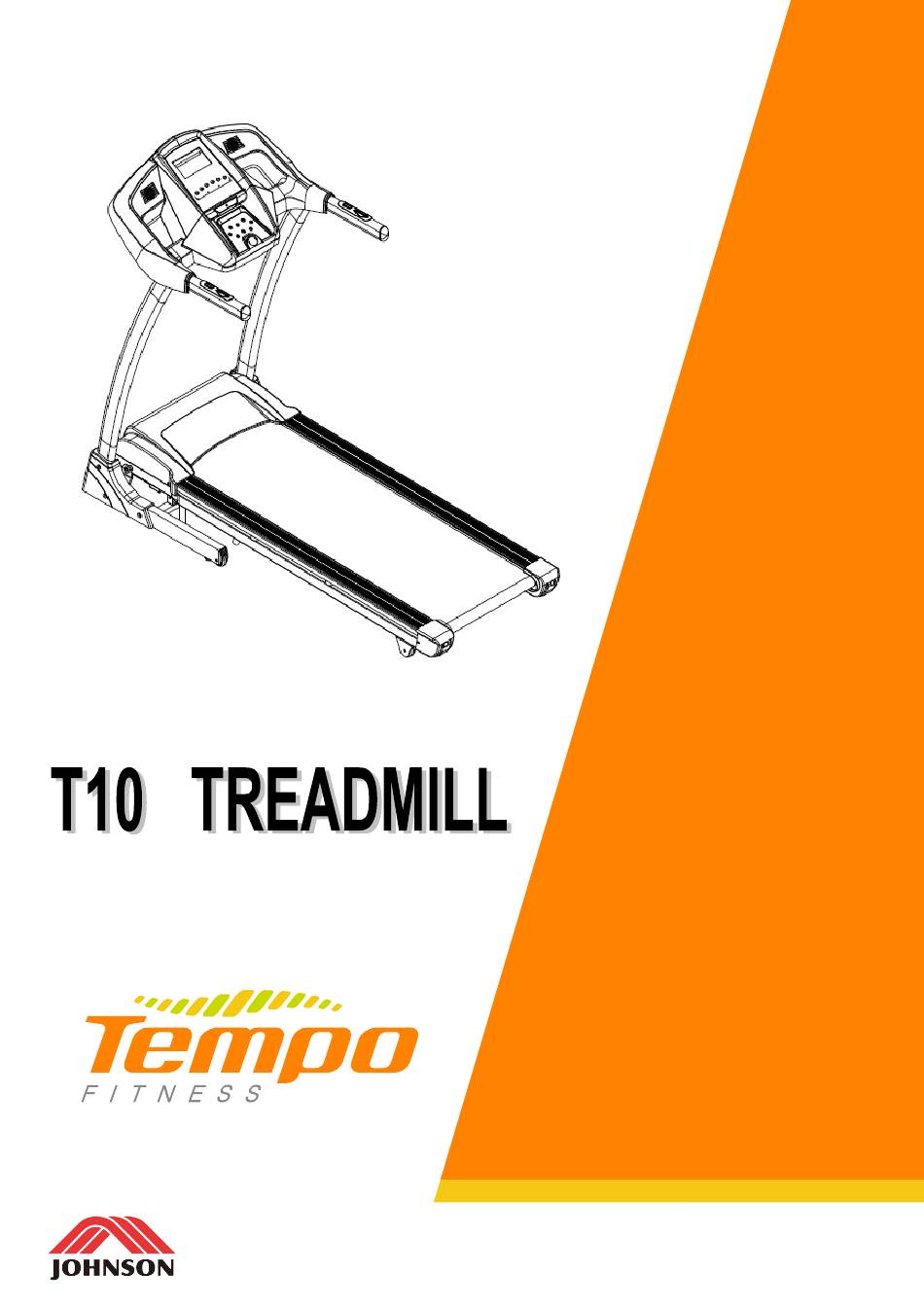

- Page 1 USER MANUAL A brand of Johnson Health Tec h www.johnsonhealthtec h.com.au...
-
Page 2: Important Safety Instruction
Contents PAGE 1 - IMPORTANT SAFETY INSTRUCTIONS PAGE 4 - ASSEMBLY LIST PAGE 6 - PRODUCT PARTS LIST PAGE 7 – PRODUCT ASSEMBLY INSTRUCTIONS PAGE 10 – PRODUCT DESCRIPTION PAGE 15- ROUTINE MAINTENANCE IMPORTANT SAFETY INSTRUCTION Before using the treadmill please read the below: A. -
Page 3: Pre-Assembly Check List
Warning Grounding Instruction The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of least resistance for electric current to reduce the risk of electric shock. The product is equipped with an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 4: Exploded Drawing
Exploded drawing... -
Page 5: Parts List
Parts list Name QTY. Name QTY. Main frame Hexagon socket head cap screws Base frame Hexagon socket head cap screws Left upright tube Hexagon socket head cap screws Right upright tube Hexagon socket head cap screws Electronic watch stand Hexagon socket head cap screws Incline motor Large flat head socket hexagon screw Incline bracket... -
Page 6: Assembly Steps
Assembly steps STEP 1: Take out every part and tool set and lay flat on the floor. Lift up the upright tube as per the arrow direction. Be careful not press the computer wire when unfolding. STEP 2: Use the screw M8*15（58），M8*45（61）and nut M8（71）with spacer（73）to fix the tube，then use screw M4*10（68）fix the side cover(30)。... - Page 7 STEP 3. Connecting the Signal wire in the right-hand tube (As shown below)，and use the screw M8*15（58）fix the console stand on the tube. STEP 4. Put on the safety key and MP3 line.
-
Page 8: Before Use
Before use Starting the treadmill LOCATION Place the treadmill on flat floor before use. POWER SUPPLY Ensure that the power lead is plugged into a suitable, live, mains socket. ON/OFF SWITCH 1. Ensure that the SAFETY KEY is attached to the console. 2. -
Page 9: Using The Treadmill
Note: You have to clean the strap and pulley groove regularly. Attaching the safety key Attach the SAFETY KEY to the console before turning the machine on. Attach the clip to your clothing at your waist before beginning your workout. If the SAFETY KEY disconnects during use, the treadmill will slow down and stop. -
Page 10: Program & Mode
Window displayer 1. Speed: Display the present speed 2. Time: Display the time of manual mode or count backward time under the program and mode 3. Distance: Display the accumulative distance under the manual and program mode or count backwards distance of the mode working 4. - Page 11 System including 9 built-in program (see below chart) A. When standby, press the button “Prog”, distance window will show “POX”, time window blinking displayer, you can adjust the setting value of time by “speed +” “speed - ”,press the “start” key and treadmill will start. B.
-
Page 12: Folding & Unfolding & Moving
（ ） Physical fat test Under the condition of standby, you can enter into FAT test system by pressing the “program” button，The window will display “FAT”. You can set the parameter by pressing “model” button( 1--gender, 2-age ,3-height, 4-weight) ， You can reset the data by pressing “SPEED+”,“SPEED-”.It will display “5”... - Page 13 WARNING: To prevent injury, make sure you have a firm hold of the deck before folding or building. NOTE: Do not hold the belt as it may slip during the lifting process. WARNING: To prevent injury, ensure the deck is securely locked in position, before attempting to move the treadmill.
- Page 14 Console ※ Error E01 E02 E03 E04 E05 E06 code 1：E01: A: E01: Communication error between the console and controller when start machine. B: Solution: Check the 4 core wire connection between console and the controller whether unconnected or damaged. if the connecting line is firm, replace the IC board or the controller board to check whether it is the problem of the controller, or not, replace the console or IC if also appears E01.
-
Page 15: Maintenance
Maintenance Advice of Lubrication After using the running belt for a period of time, the running belt must be lubricated by special lubrication. Less than 3 times per week: once every 5 months From 4 to 7 times per week: once every 2 months More than 7 times per week: once every month... -
Page 16: Workout Tips
• Relieve insomnia Beginners Guidelines If you’re beginning an exercise program, you should check with your doctor if: You have been diagnosed with heart problems, high blood pressure or other medical conditions. You have not exercised for over a year. If you are over 35 and do not currently exercise. -
Page 17: Warranty
Inner thigh stretch Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees toward the floor. Hold for 15 counts. WARRANTY: Tempo Fitness Cardio Frame 5 years Drive Motor (Tread Only) - Page 18 Johnson Health Tech Australia 78 Logis Boulevard Dandenong South VIC 3175 johnsonhealthtech.com.au © 2018 Johnson Health Tech Australia. All Rights Reserved. Product specifications subject to change without notice. AUTHORIZED TEMPO FITNESS DISTRIBUTOR...
