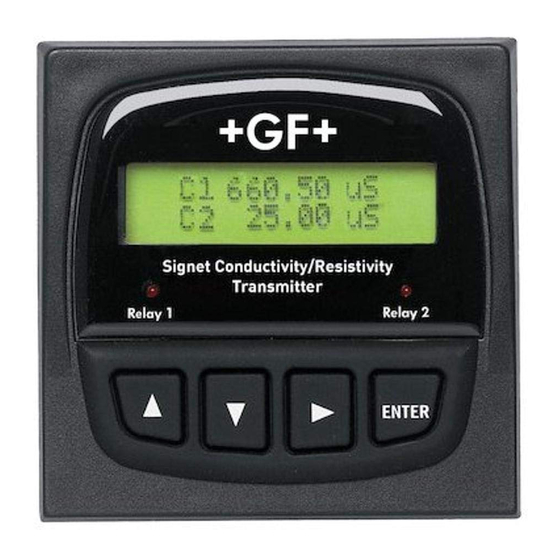

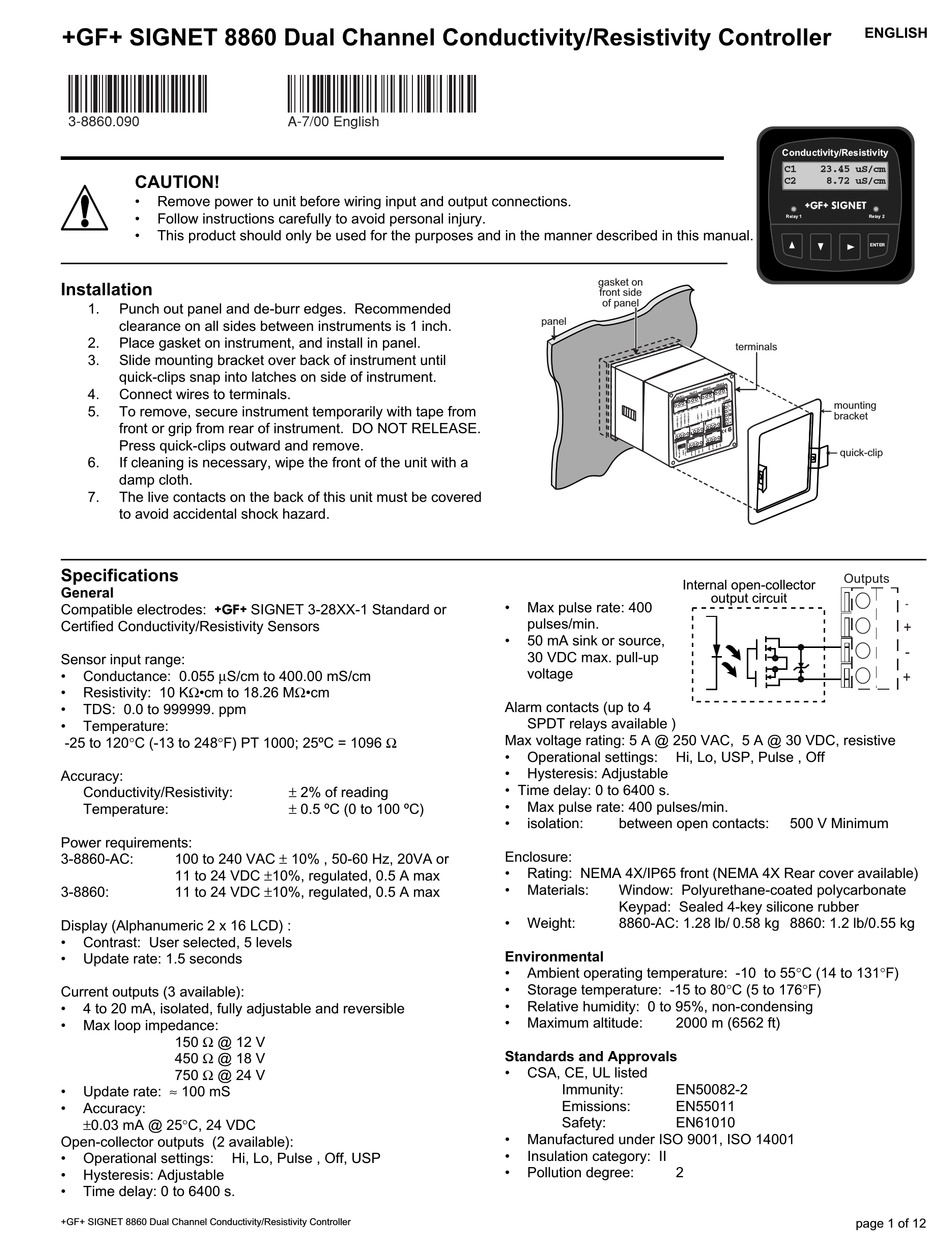

+GF+ SIGNET 8860 Dual Channel Conductivity/Resistivity Controller
3-8860.090
CAUTION!
• Remove power to unit before wiring input and output connections.
• Follow instructions carefully to avoid personal injury.
• This product should only be used for the purposes and in the manner described in this manual.
Installation
1. Punch out panel and de-burr edges. Recommended
clearance on all sides between instruments is 1 inch.
2. Place gasket on instrument, and install in panel.
3. Slide mounting bracket over back of instrument until
quick-clips snap into latches on side of instrument.
4. Connect wires to terminals.
5. To remove, secure instrument temporarily with tape from
front or grip from rear of instrument. DO NOT RELEASE.
Press quick-clips outward and remove.
6. If cleaning is necessary, wipe the front of the unit with a
damp cloth.
7. The live contacts on the back of this unit must be covered
to avoid accidental shock hazard.
Specifications
General
Compatible electrodes: ‡ SIGNET 3-28XX-1 Standard or
Certified Conductivity/Resistivity Sensors
Sensor input range:
Conductance: 0.055 µS/cm to 400.00 mS/cm
•
• Resistivity: 10 KΩ•cm to 18.26 MΩ•cm
• TDS: 0.0 to 999999. ppm
• Temperature:
-25 to 120°C (-13 to 248°F) PT 1000; 25ºC = 1096 Ω
Accuracy:
Conductivity/Resistivity:
Temperature:
Power requirements:
100 to 240 VAC ± 10% , 50-60 Hz, 20VA or
3-8860-AC:
11 to 24 VDC ±10%, regulated, 0.5 A max
11 to 24 VDC ±10%, regulated, 0.5 A max
3-8860:
Display (Alphanumeric 2 x 16 LCD) :
• Contrast: User selected, 5 levels
• Update rate: 1.5 seconds
Current outputs (3 available):
• 4 to 20 mA, isolated, fully adjustable and reversible
• Max loop impedance:
150 Ω @ 12 V
450 Ω @ 18 V
750 Ω @ 24 V
Update rate: ≈ 100 mS
•
• Accuracy:
±0.03 mA @ 25°C, 24 VDC
Open-collector outputs (2 available):
• Operational settings: Hi, Lo, Pulse , Off, USP
• Hysteresis: Adjustable
• Time delay: 0 to 6400 s.
+GF+ SIGNET 8860 Dual Channel Conductivity/Resistivity Controller
A-7/00 English
± 2% of reading
± 0.5 ºC (0 to 100 ºC)
gasket on
front side
of panel
panel
Internal open-collector
• Max pulse rate: 400
pulses/min.
• 50 mA sink or source,
30 VDC max. pull-up
voltage
Alarm contacts (up to 4
SPDT relays available )
Max voltage rating: 5 A @ 250 VAC, 5 A @ 30 VDC, resistive
• Operational settings: Hi, Lo, USP, Pulse , Off
• Hysteresis: Adjustable
• Time delay: 0 to 6400 s.
• Max pulse rate: 400 pulses/min.
• isolation: between open contacts:
Enclosure:
• Rating: NEMA 4X/IP65 front (NEMA 4X Rear cover available)
• Materials: Window: Polyurethane-coated polycarbonate
Keypad: Sealed 4-key silicone rubber
• Weight: 8860-AC: 1.28 lb/ 0.58 kg 8860: 1.2 lb/0.55 kg
Environmental
• Ambient operating temperature: -10 to 55°C (14 to 131°F)
• Storage temperature: -15 to 80°C (5 to 176°F)
• Relative humidity: 0 to 95%, non-condensing
• Maximum altitude: 2000 m (6562 ft)
Standards and Approvals
• CSA, CE, UL listed
Immunity: EN50082-2
Emissions: EN55011
Safety: EN61010
• Manufactured under ISO 9001, ISO 14001
• Insulation category: II
• Pollution degree: 2
ENGLISH
Conductivity/Resistivity
C1 23.45 uS/cm
C2 8.72 uS/cm
Relay 1 Relay 2
ENTER
terminals
mounting
bracket
quick-clip
Outputs
output circuit
500 V Minimum
page 1 of 12
-
+
-
+
