Item # 1005 889 664
Model # HDP00007
USE AND CARE GUIDE

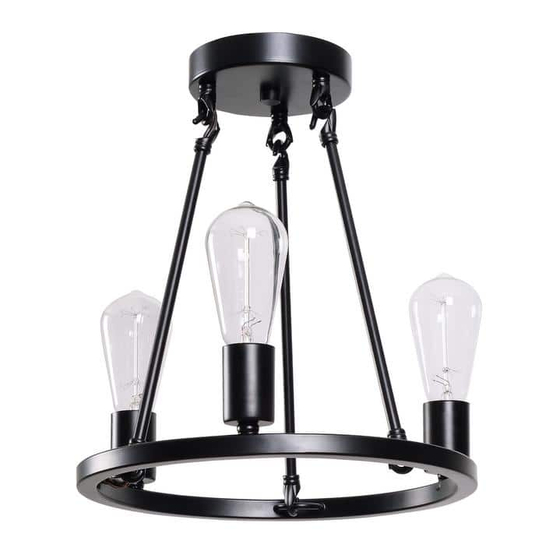

STRATTON 3 LIGHT SEMI-FLUSH
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this light xture. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY HDP00007
Summary of Contents for HAMPTON BAY HDP00007
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this light xture. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Assembly . -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. Inspect each part for defects that may have occurred during shipping. Keep your receipt and these instructions for proof of purchase. NOTE: This light xture requires the use of three 120V, 60Hz, 60-Watt max., medium-base type S21 (ST64) bulbs (included). -
Page 4: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Column assembly Fixture body Bulb... -
Page 5: Assembly
Assembly Installation Assembling the light fixture Installing the cross bar □ Carefully unpack the xture, lay out all parts on clean DANGER: Ensure the power is off at the main fuse box surface. prior to beginning installation. This xture can be assembled up or down. □... - Page 6 Installation (continued) Hanging the light fixture Connecting the wires □ Push all excess wires into the outlet box. □ Install the xture bare copper ground wire (1) under the □ Raise the canopy (A) to the ceiling and secure in ground screw (EE) on the cross bar (BB).
-
Page 7: Care And Cleaning
Installation (continued) Assembling the bulbs □ Prior to installing the bulbs, inspect sockets for silica packet. If packet is present, then remove and throw away. Do not expose it to children or pets. □ Install three 120V, 60Hz, 60-Watt medium-base type S21 (ST64) bulbs (D) (included) into the sockets of the light xture. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
