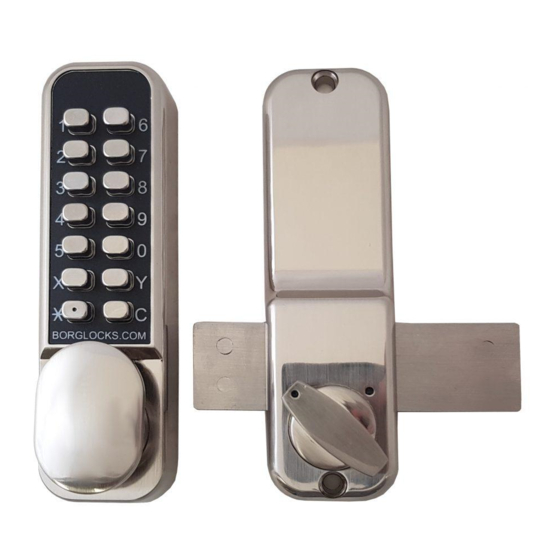

Borg Locks BL2005 Parts List, Installation And General Information

Download this manual

BL2005

Parts List

Please make sure you have received all

the following parts:

(1)

Keypad

(2)

Inside Handle

(3)

Neoprene seals x2

(4)

Spindles (Only one is used)

(5)

Surface lock keep

(6)

Morticed lock keep

(7)

Tweezers (For code changing)

(8)

Fixing bolts. 4 Supplied

(9)

Spare tumblers. 2 x Coded

(10)

Code card

2 x Uncoded

Need help?

Do you have a question about the BL2005 and is the answer not in the manual?

Page 1 BL2005 Parts List Please make sure you have received all the following parts: Keypad Inside Handle Neoprene seals x2 Spindles (Only one is used) Surface lock keep Morticed lock keep Tweezers (For code changing) Fixing bolts. 4 Supplied Spare tumblers. 2 x Coded...
Page 2 Special Notes 3. Latch Support Post Before commencing installation, check that all parts are workly correctly: Press the code according to the code card and then the knob should turn and return easily under spring pressure. If you intend to change the code, you should do so before installing the lock.
Page 3 5. Fixing the Lock How to change your code number Remove the lock from the door. Remove the 4 retaining screws from the back of the keypad. Take extra care to keep the keypad on a flat surface, when you are removing the plate due to all of the small components inside.
Page 4 Turn the bolt handle towards the left. Lay the keypad on a table as shown on drawing below. Turn over the bolt as shown in the drawing below and replace the plate and screws removed earlier...
