Borg Locks BL4409 Manual

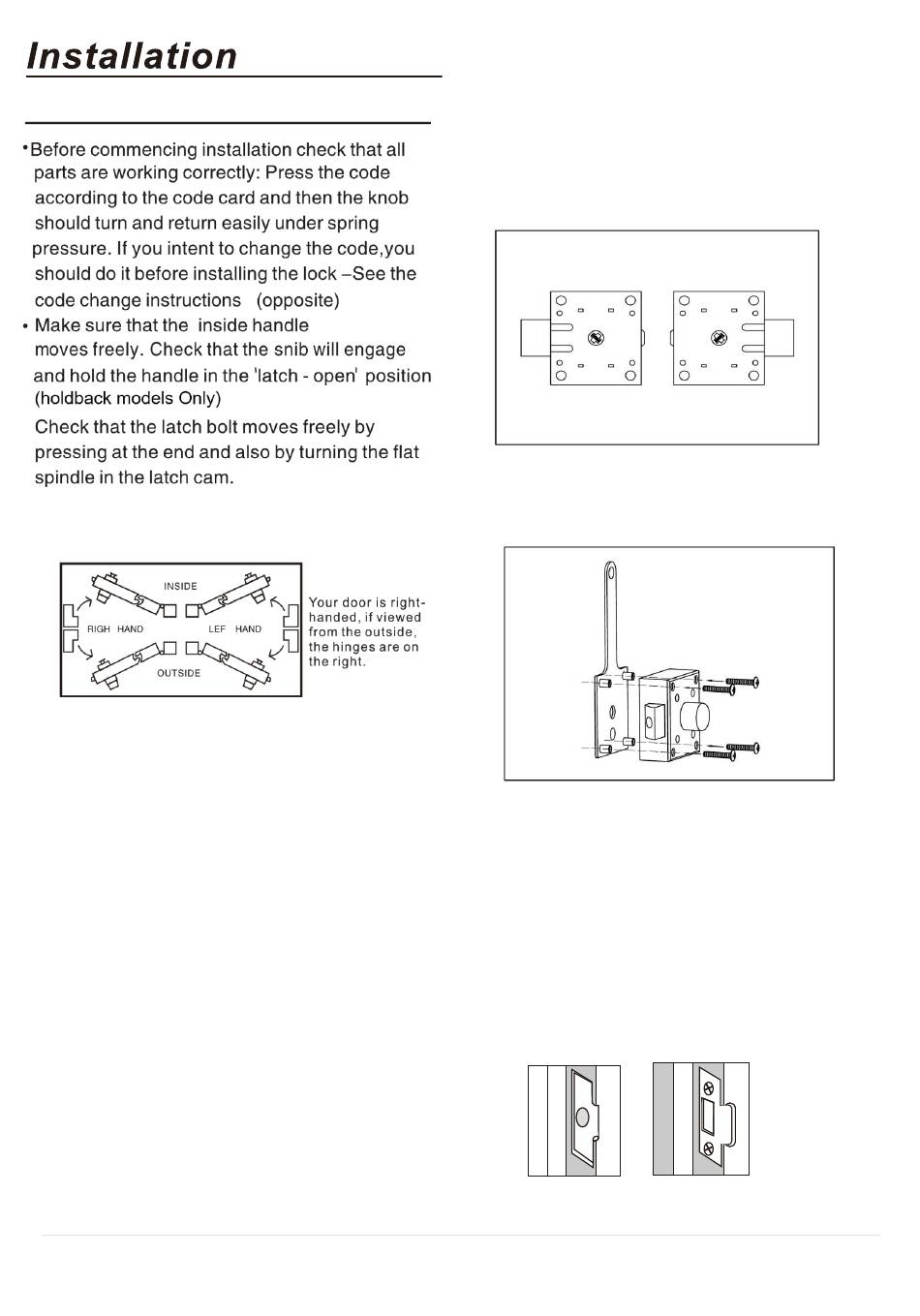

Special note
1. Determine your door type
When fitting to a left-hand door, remove the
rubber grommet from the base of the handle
and remove the exposed grub screw.
Lift the handle off, turn it 180°and slide back.
(Refit the grub screw and grommet).
2. Apply the template
Tape the template to the door, make
sure that you fold it along the line
Mark and drill 2 10mm holes
3. Position and fix the slam
latch, support plate and keypad
Hold the keypad with its gasket and slam
latch support plate in position and with the
fixing screws supplied secure to the door
4. Position the spindle
Locate the spindle in the back of the keypad,
ensuring that it engages with the latch
correctly dependant on the hand of the door

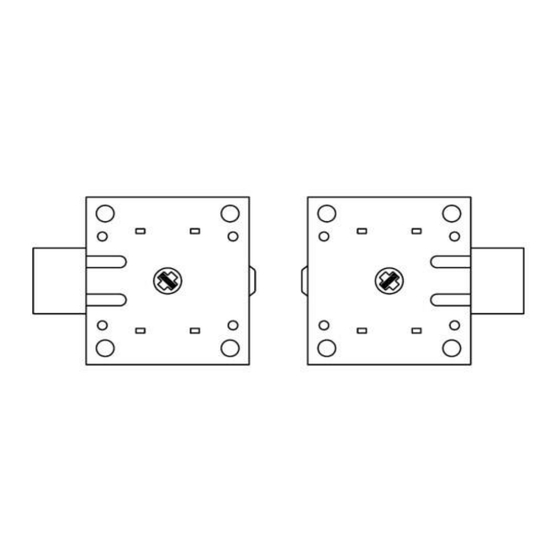

5. Fix the slam latch
Using the fixing bolts supplied fix the slam
latch to the slam latch support plate
6. Fit the strike plate. Mortice
Position the strike plate on the door edge so
that it lines up with the latch bolt.
Drill and cut a recess for the latch bolt.
Fit the strike plate using only one wood screw
at first to ensure that it is positioned correctly.
When satisfied with its position secure the
strike with the 2nd screw.
1 | P a g e
