Savant Wally Quick Reference Manual

Wally 5.5 inch In-Wall Touch Screen
Quick Reference Guide
Box Contents
(1) Wally 5.5 inch In-Wall Touch Screen
(1) Installation Kit
(1) Mounting Bracket (For standard 1-gang electrical box)
(2) Mounting Bracket Screws (6-32 x 1 in.)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Dimensions and Weight (Product)
See LCD Display Specifications
Standards
Ethernet 10/100/1000 Gigabit Ethernet Adapter
Power
PoE 802.3af compliant
Regulatory
FCC Part
15
Safety and
Class B
Emissions
RoHs Compliant
Minimum Supported Release
Savant OS da Vinci 8.4
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, IP Addresses for all devices can be managed from a single
UI avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
Network Changes
If the IP Address range in your network has changed, Savant
recommends the following steps to refresh any IP connection and
ensure that the display is communicating with the network correctly.
Using a paper clip or similar, press and release the Reset button
-
on the side of the touch panel (See
section). Allow the display to reset and obtain a new IP Address.
ITP-E5500x | 009-1474-00 | 170515
Copyright © 2017 Savant Systems, LLC
section.
CE WEEE

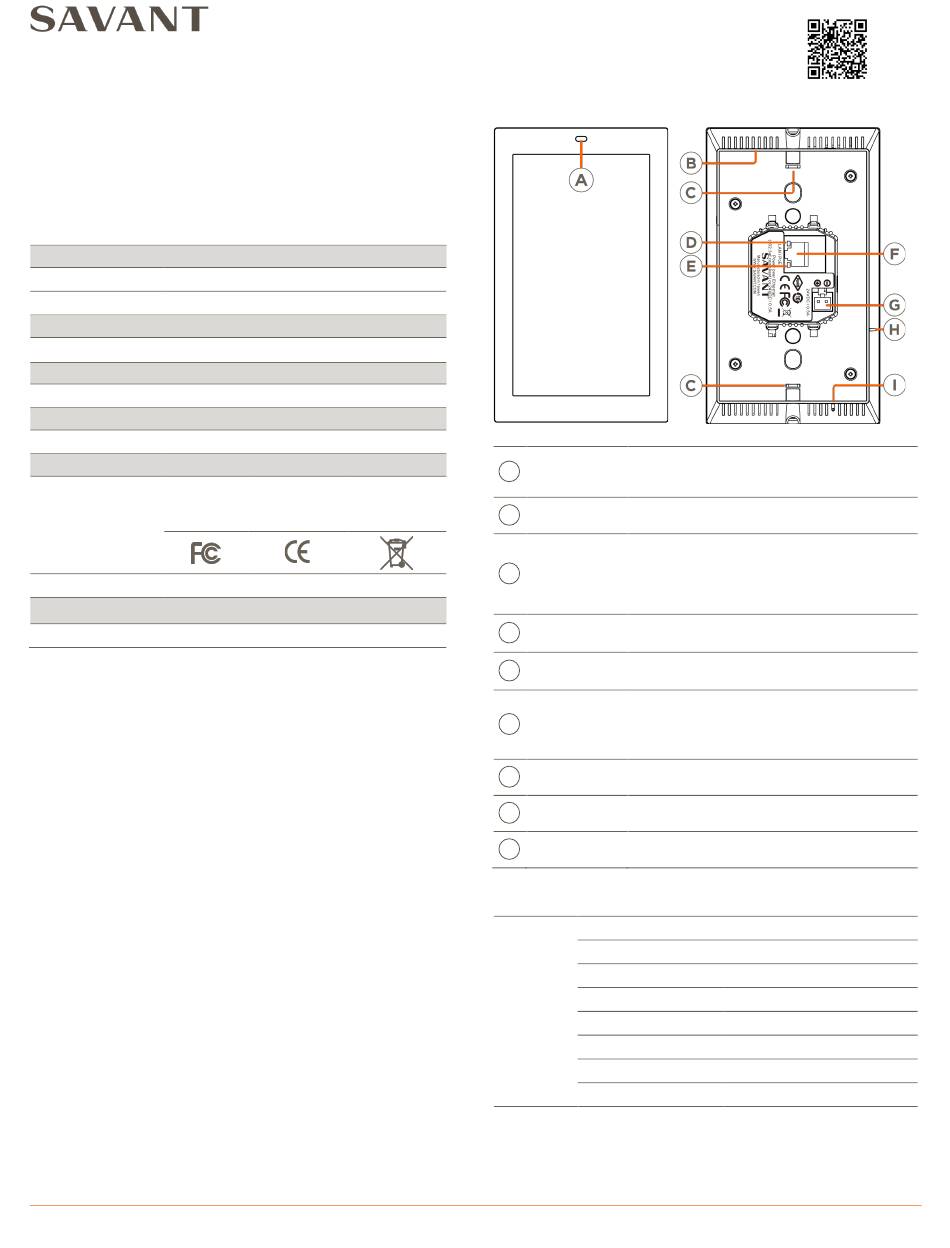

Rear Panel
descriptions
Front Panel
Proximity
A
Sensor
Embedded
B
Speaker
Mounting
C
Slots
D
Link LED
Link Activity
E
LED
F
Ethernet
Alternate
G
Power Input
H
Reset Button
Embedded
I
Microphone
LCD Display Specifications
Viewing Image (IPS)
Resolution
Height
Width
ITP-E5500x
Depth (overall)
Depth (mounting)
Weight (display only)
Weight (ship)
1 of 2
For Product Info
Rear Panel
Sensor (proximity) mounted in front panel
will wake up the display when movement is
detected in front of display.
For future use
Slots for mounting touch panel to mounting
bracket. Insert tabs from the mounting
bracket into these slots. Once inserted,
secure the touch panel to the bracket using
the two captive screws.
Solid Orange - Link is established.
Off – No link established
Green Blinking - Indicates data activity.
Off – No Activity
8-pin RJ-45 port:
10/100/1000 Base-T auto-negotiating
-
port with link and activity LEDs
PoE – 802.3af compliant
-
Not Used
Using a paperclip or similar, press and
release Reset button to reset the display.
For future use
5.5 in (13.97 cm)
720 x 1280 | 16.7M colors
5.85 in (14.86 cm)
3.44 in (8.74 cm)
1.33 in (3.38 cm)
1.00 in (2.51 cm)
0.35 lb (0.16 kg)
0.75 lb (0.34 kg)
