Item #1005 588 302
Model #CX2121AMEVB
USE AND CARE GUIDE

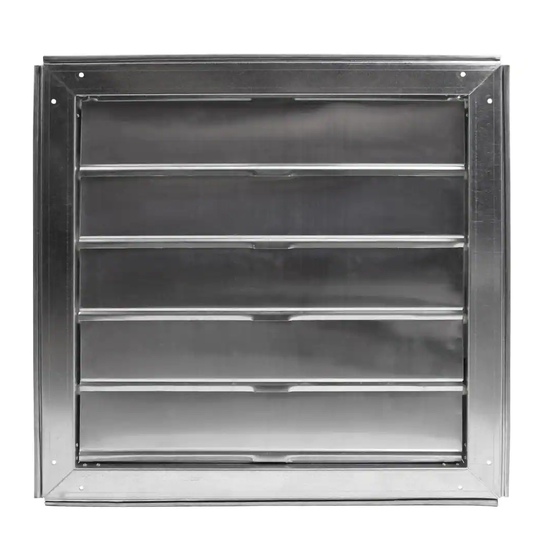

SHUTTER FOR THE CX1500EVB GABLE MOUNTED VENTILATOR
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Everbilt through the purchase of this ventilator shutter. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Everbilt!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everbilt CX2121AMEVB
Summary of Contents for Everbilt CX2121AMEVB
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Everbilt through the purchase of this ventilator shutter. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Pre-Installation . -
Page 3: Tools Required
Pre-Installation DIMENSIONS □ Physical Dimensions: 22 in. x 22 in. □ Rough Opening: 18.5 in. x 18.5 in. TOOLS REQUIRED Sheet Personal Phillips Wood Portable metal protective screwdriver screws electric drill screws equipment PACKAGE CONTENTS Part Description Shutter HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. -
Page 4: Installation
Installation Preparing the installation location Cutting the rough opening □ Locate a suitable location along the wall away from This installation requires an 18.5 in. x 18.5 in. rough opening. prevailing winds. If multiple units are to be installed, units □... - Page 5 Installation (continued) Framing the installation location □ Using conventional framing methods in accordance with local building requirements and codes, build a frame around the rough opening to support the unit and maintain structural integrity of the wall as needed. □ Use lumber of the same dimensions as your joists and fasten them to the edges of the frame opening using #12D nails (not included) to create a complete square frame then replace the insulation around the frame.
-
Page 6: Operation
Operation Ensure there is adequate air intake (10 sq ft) available prior to operation. Shutters will open and close, with air flow increase or decrease, once properly installed on the host fan. - Page 8 Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
