USER MANUAL
QNET Physics and Dynamics Board for NI ELVIS
Set Up and Configuration
CAPTIVATE. MOTIVATE. GRADUATE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QNET Physics and Dynamics and is the answer not in the manual?

Questions and answers

Related Manuals for Quanser QNET Physics and Dynamics

Summary of Contents for Quanser QNET Physics and Dynamics

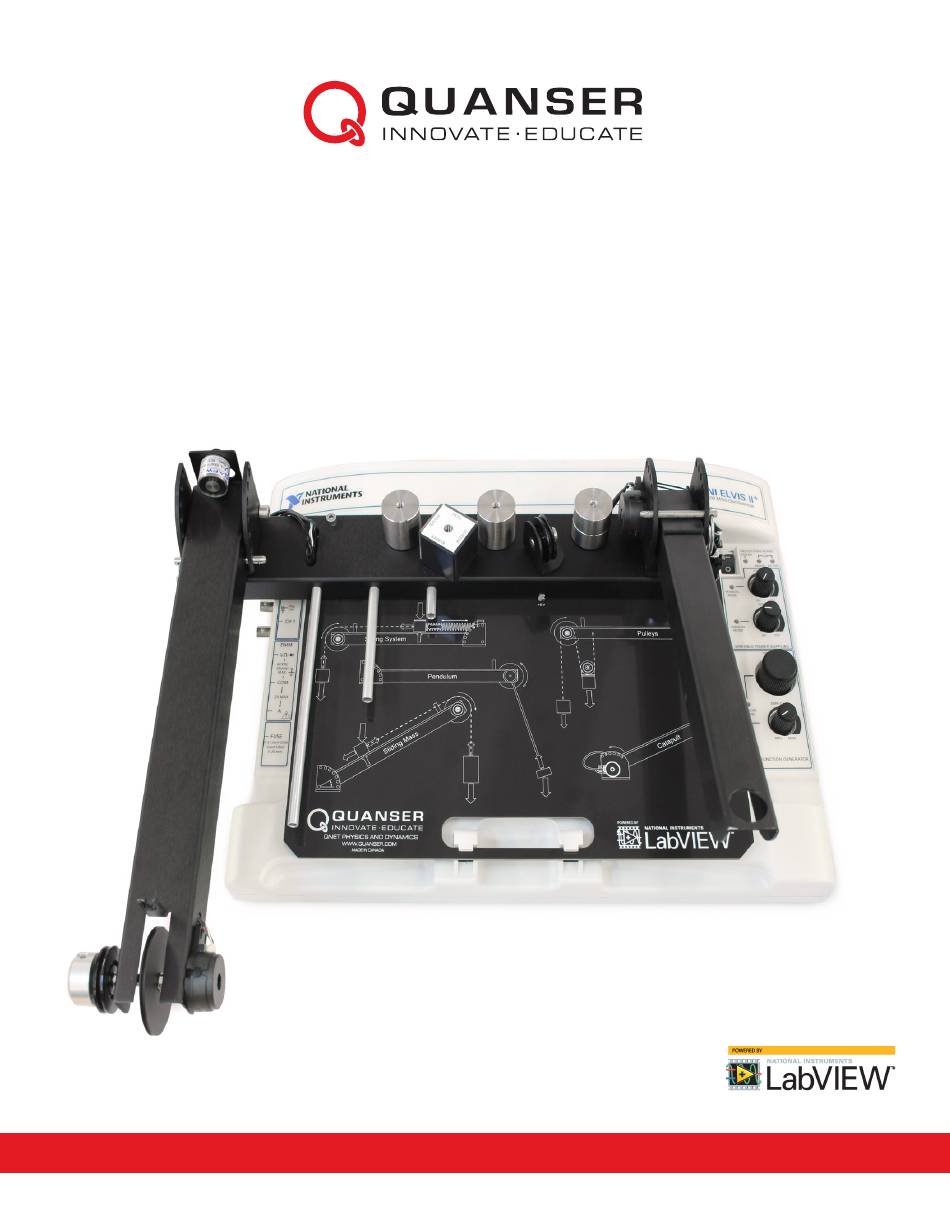

  • Page 1 USER MANUAL QNET Physics and Dynamics Board for NI ELVIS Set Up and Configuration CAPTIVATE. MOTIVATE. GRADUATE.
  • Page 2 Phone: 1-905-940-3575 Fax: 1-905-940-3576 For more information on the solutions Quanser Inc. offers, please visit the web site at: http://www.quanser.com This document and the software described in it are provided subject to a license agreement. Neither the software nor this document may be used or copied except as specified under the terms of that license agreement.

  • Page 3: Table Of Contents

    Introduction System Hardware System Schematic Hardware Components Environmental System Parameters QNET Physics and Dynamics and NI ELVIS II Setup QNET Physics and Dynamics Components NI ELVIS II Components NI ELVIS II Setup Procedure Troubleshooting General Software Issues General Hardware Issues v 1.0...
  • Page 4 The following symbols and definitions are interchangeably used throughout the User Manual: Symbol Description Caution: consult documentation for additional information Direct Current ∣ On (Power) [on NI ELVIS II unit] ○ Off (Power) [on NI ELVIS II unit] Table 0.1: Symbols QNET PHYSICS AND DYNAMICS - User Manual...

  • Page 5: Introduction

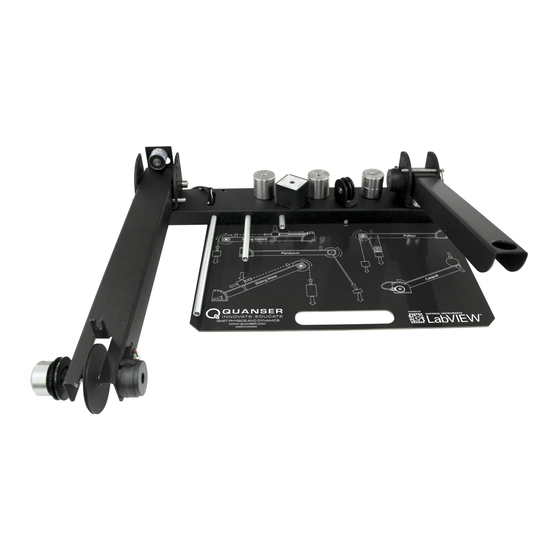

    1 Introduction The Quanser QNET Physics and Dynamics for NI ELVIS II, pictured in Figure 1.1, is a versatile physics and dynamics system designed to teach and demonstrate the basic physical and dynamical principles in a variety of ways. The system is comprised of a catapult with adjustable release angle equipped with an rotational encoder as well as a sliding mass arm with an adjustable incline.

  • Page 6: System Hardware

    2 System Hardware 2.1 System Schematic The QNET Physics and Dynamics provides the communication interface with the NI ELVIS II for the electromagnet release commands and encoder ports. The interaction between the different system components on the QNET Physics and Dynamics is illustrated in Figure 2.1. The NI ELVIS II is interfaced to the PC or laptop via USB link. The NI ELVIS II block reads the angular encoder inputs of the catapult axis and the pulley on the sliding mass arm.

  • Page 7: Hardware Components

    2.2 Hardware Components The main components comprising the QNET Physics and Dynamics are labeled in Figure 2.3 and are listed in Table 2.1. Description Description Electromagnet sliding mass arm 100 g weight Adjustable joint sliding mass arm Multisided sliding mass cube...

  • Page 8: Environmental

    2.2.1 Electromagnets The QNET Physics and Dynamics includes two electromagnets to electronically control the behaviour of the sliding mass and catapult experiments. The QNET Physics and Dynamics incorporates the APW Company electromagnets model EM075-6-222-01. The complete specification sheet of the electromagnets is available online at: http://catalog.apwcompany.com/Asset/6035.pdf...

  • Page 9: System Parameters

    2.4 System Parameters Table 2.2 lists and characterizes the main parameters associated with the QNET Physics and Dynamics. Symbol Description Value Encoder Encoder line count 512 lines /rev Encoder line count in quadrature 2048 lines /rev Sliding Mass Experiment Weight sliding mass cube...

  • Page 10: Qnet Physics And Dynamics And Ni Elvis Ii Setup

    NI ELVIS II Setup The procedure to install a QNET Physics and Dynamics module on the NI ELVIS II is detailed in this section. The NI ELVIS II components used in the installation procedure are located and marked by an ID number in Figure 3.1, and described in Table 3.1.

  • Page 11: Ni Elvis Ii Setup Procedure

    Do NOT make the following connections while power is supplied to the hardware! Caution 1. Place the small opening on the front of the QNET Physics and Dynamics over the mounting bracket on the NI ELVIS II. 2. Slide the PCI connector of the QNET Physics and Dynamics module end into the female connector on the NI ELVIS II.
  • Page 12 Figure 3.2: Ready and Power LEDs on NI ELVIS II QNET PHYSICS AND DYNAMICS - User Manual...

  • Page 13: Troubleshooting

    4 Troubleshooting 4.1 General Software Issues Q1 When I try to open a QNET Physics and Dynamics VI, it says there are some missing VIs and they have a CD or Sim in the name? The LabVIEW™ Control Design and Simulation Toolkit is not installed.
  • Page 14 Quanser QNET add-on boards for the NI ELVIS platform teach introductory control topics in undergraduate labs cost-effectively. All QNETs are offered with comprehensive, ABET*-aligned courseware that have been developed to enhance the student learning experience.
