Quanser QNET Physics and Dynamics Quick Start Manual

Quick Start Guide:
STEP 1

Check Components and Details

Make sure your QNET Physics and Dynamics experiment includes the following components:
1a
1
5
STEP 2

Additional Components Required

To complete your QNET Physics and Dynamics board setup, you will also need the following hardware:
1
STEP 3

Install LabVIEW and Add-Ons

Make sure the following versions of LabVIEW™ and required add-ons are installed:
1. LabVIEW™ 2012 or later
2. NI DAQmx 9.5.5 or later
3. NI ELVISmx 4.4 or later
4. LabVIEW™ Control Design and Simulation Module 2012 or later
QNET Physics and Dynamics
1b 1c 1d
6
2
3
2
1e
3
4
Note:
available for download at www.ni.com/qnets

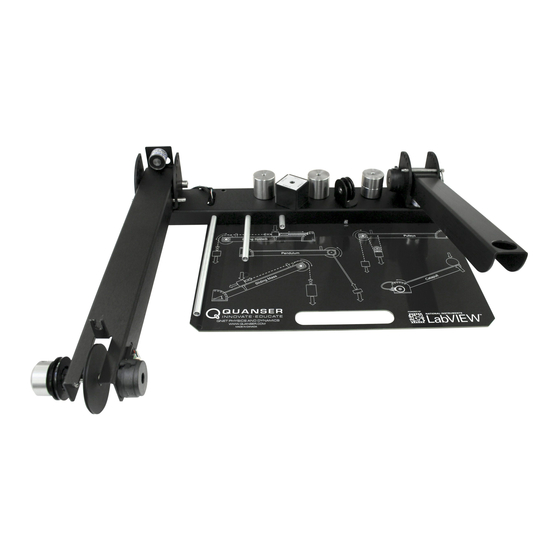

1. Quanser QNET Physics and
Dynamics board, including:
a) Two pendulum rods
b) Coupling
c) Sliding mass
d) Free pulley
e) Two 100g and two 50g free weights
2. Table Tennis Ball
3. Anchor Screws
4. Hex key
5. Extension spring
6. Cable
The QNET curriculum resources are
1. NI ELVIS II or NI ELVIS II
2. +5VDC / 5A, +15VDC / 2A,
-15VDC / 0.8A Power Supply
3. USB Cable
Note: All references to NI ELVIS II in
this guide apply to both NI ELVIS II
and NI ELVIS II devices.
+
workstation
+
