NOVA WIRELESS

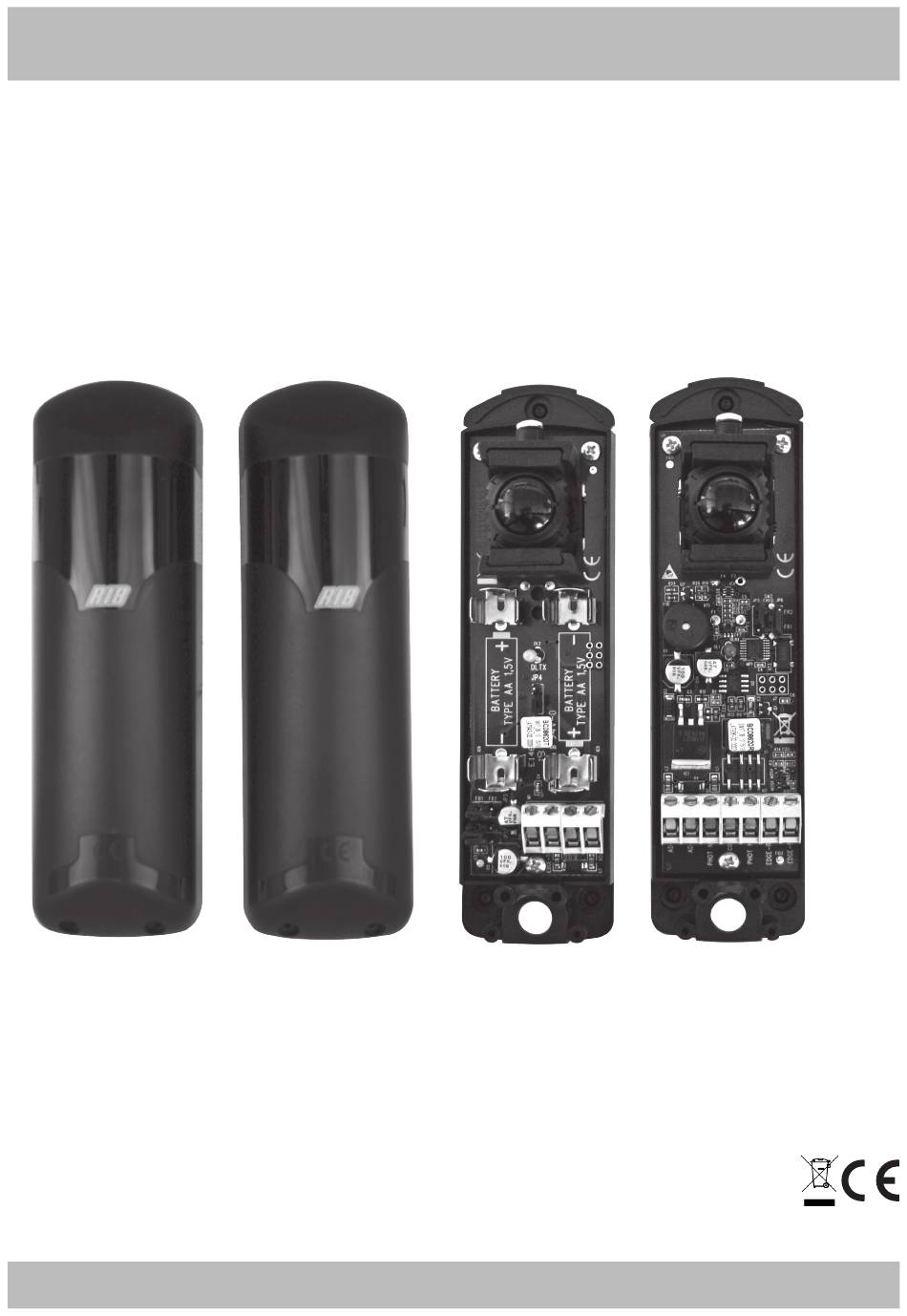

FOTOCELLULE - PHOTOCELLULES
PHOTOCELLS - FOTOZELLEN - FOTOCÉLULAS
cod. ACG8047
EN ISO 13849-2:2013 PL»c» CAT.2
(a condizione che il sistema di controllo effettui il monitoraggio del rilevatore almeno una volta per ogni ciclo porta)
(à condition que l'opérateur surveille le détecteur au moins une fois par cycle de porte)
(under the condition that the door control system monitors the sensor at least once per door cycle)
(unter der Bedingung dass der Türantrieb den Sensor mindestens einmal pro Türzyklus testet)
(con la condición de que el sistema de control de puertas supervise el sensor una vez como mínimo por ciclo de puerta)
ITALIANO pag. 02 / FRANÇAIS pag. 07 / ENGLISH page 12 / DEUTSCH pag. 17 / ESPAÑOL pag. 22
(Batterie AA non incluse - Piles AA non incluses - AA batteries not included - AA
Batterien nicht beiliegend - Baterías AA no incluidas)
