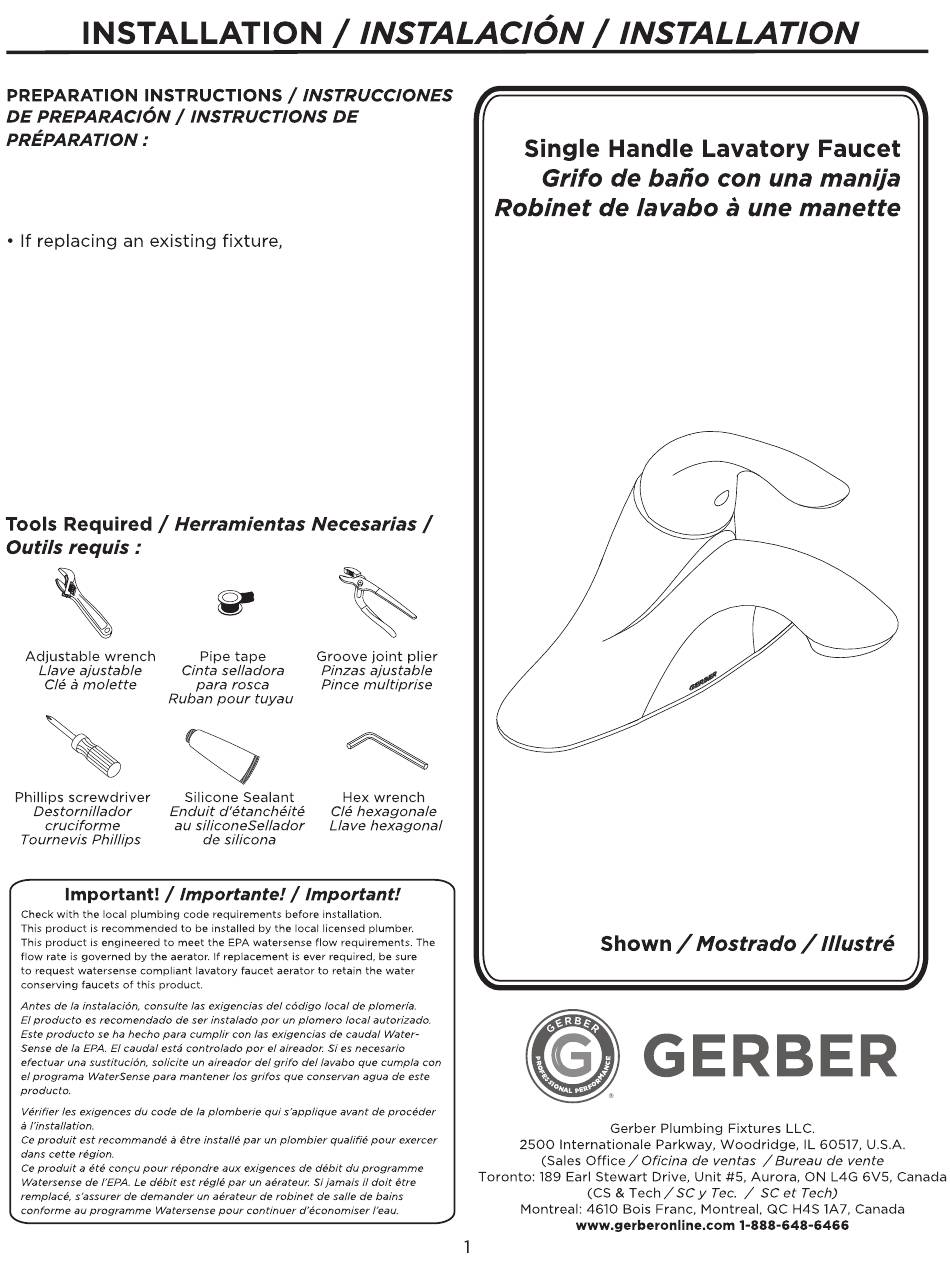

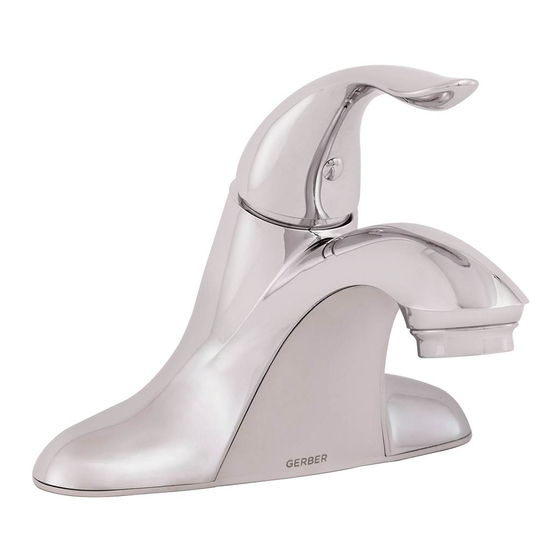

Si remplaçant une installation existante, enlevez le vieux raccord. Clean the sink mounting surfaces for your new • fitting Fregadero limpio en toda superficie para su nueva instalación. Nettoyer les surfaces de montage de lavabo pour votre nouvelle installation. 40-024 40-025 40-028...
Page 2
Faucet Installation Procedures/Instalación del Grifo/Procédures d’installation du robinet Shut off the main water supply before installation. Cierre el suministro de agua antes de instalar. Couper l’alimentation d’eau principale avant l’installation. Install the faucet through the holes. Instale el grifo a través del orificios de montaje. Insérer le robinet dans les trous de montage Figure 1 Attach the U washer onto the threaded rods.
Page 3
Tighten the end of shank with a wrench and slip the coupling nut onto the inlet port. Apriete la punta de la rosca con la llave y deslice la tuerca de conexión sobre las entradas. Serrer l’extrémité de la tige à l’aide de la clé et glisser l’écrou de raccord sur l’orifice d’entrée.
Page 4
Touch Down Drain Installation Instructions / Instrucciones para la instalación del desagüe touch down / Instructions d’installation de la bonde de vidange manuelle Check to make sure you have the following parts indicated below: Verifique que tenga todas las partes indicadas: Vérifier pour vous assurer que vous possédez les pièces au bas : 1.
Page 5
For drain cartridge replacement or cleaning Para sustituir o limpiar el cartucho de desagüe Pour remplacer ou nettoyer la cartouche de renvoi Remove the cartridge (2) from the drain: Reinstall the cartridge (2) into the drain collar, thread on the stopper cap.
Page 6
Trouble-Shooting/Guía de Solucionar Problemas/Dépannage If you've followed the instructions carefully and your faucet still does not work properly, take these corrective steps. Si usted ha seguido las instrucciones cuidadosamente y su grifo todavía no funciona correctamente, sigue estos pasos correctivos. Si vous avez suivi attentivement les instructions et que votre robinet ne fonctionne toujours pas correctement, apporter les correctifs suivants.
