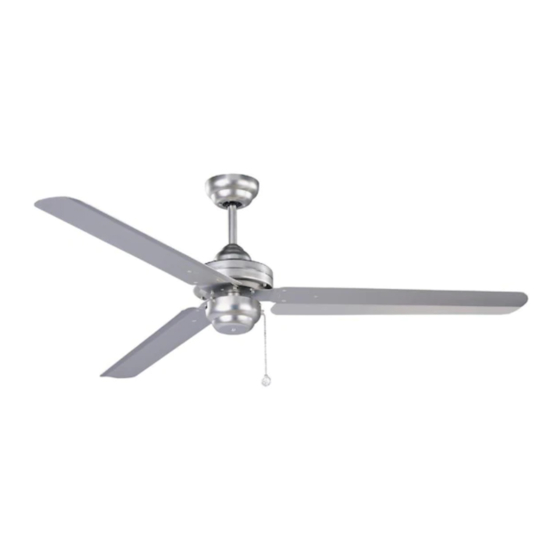

  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; Blade set (3) Hanger bracket assembly Downrod Coupling cover Fan motor assembly...

  • Page 3: Safety Rules

    3. SAFETY RULES To reduce the risk of electric shock, insure Do not operate the reverse switch while the fan electricity has been turned off at the circuit blades are in motion. The fan must be turned breaker or fuse box before beginning. off and the blades stopped before reversing the blades direction.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials.

  • Page 5: Hanging The Fan

    5. HANGING THE FAN Ceiling hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise.
  • Page 6 6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to prevent Hanger bracket the fan from falling. Secure the safety cable to the Safety cable ceiling joist with screw and washer, as illustrated in Figure 9. 7. MAKE THE ELECTRIC Figure 9 CONNECTIONS Remember to disconnect the power.

  • Page 7: Installation

    WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL POWER LINES 120V INJURY. MOUNT FAN ONLY ON AN OUTLET LIGHT BOX OR SUPPORTING SYSTEM MARKED GREEN GROUND ACCEPTABLE FOR FAN SUPPORT. WIRING GROUND TO MOUNTING BRACKET OR DOWNROD 8.
  • Page 8 9. ATTACHING THE FAN BLADES Step 1 Fasten blade assembly to motor using the screws supplied. (Fig. 14) Step 2 Repeat for the two remaining blades. Blades Screws Figure 14 10. INSTALLING THE SWITCH HOUSING NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box.
  • Page 9 11. OPERATING INSTRUCTIONS NOTE: Wait for fan to stop before changing the setting of the slide switch. Turn on the power and check the operation of your fan. 3-speed pull chain- it controls the fan speed as follows: 1 pulls- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off.
  • Page 10 12. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan. 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure.

  • Page 11: Troubleshooting

    13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check main and branch circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
