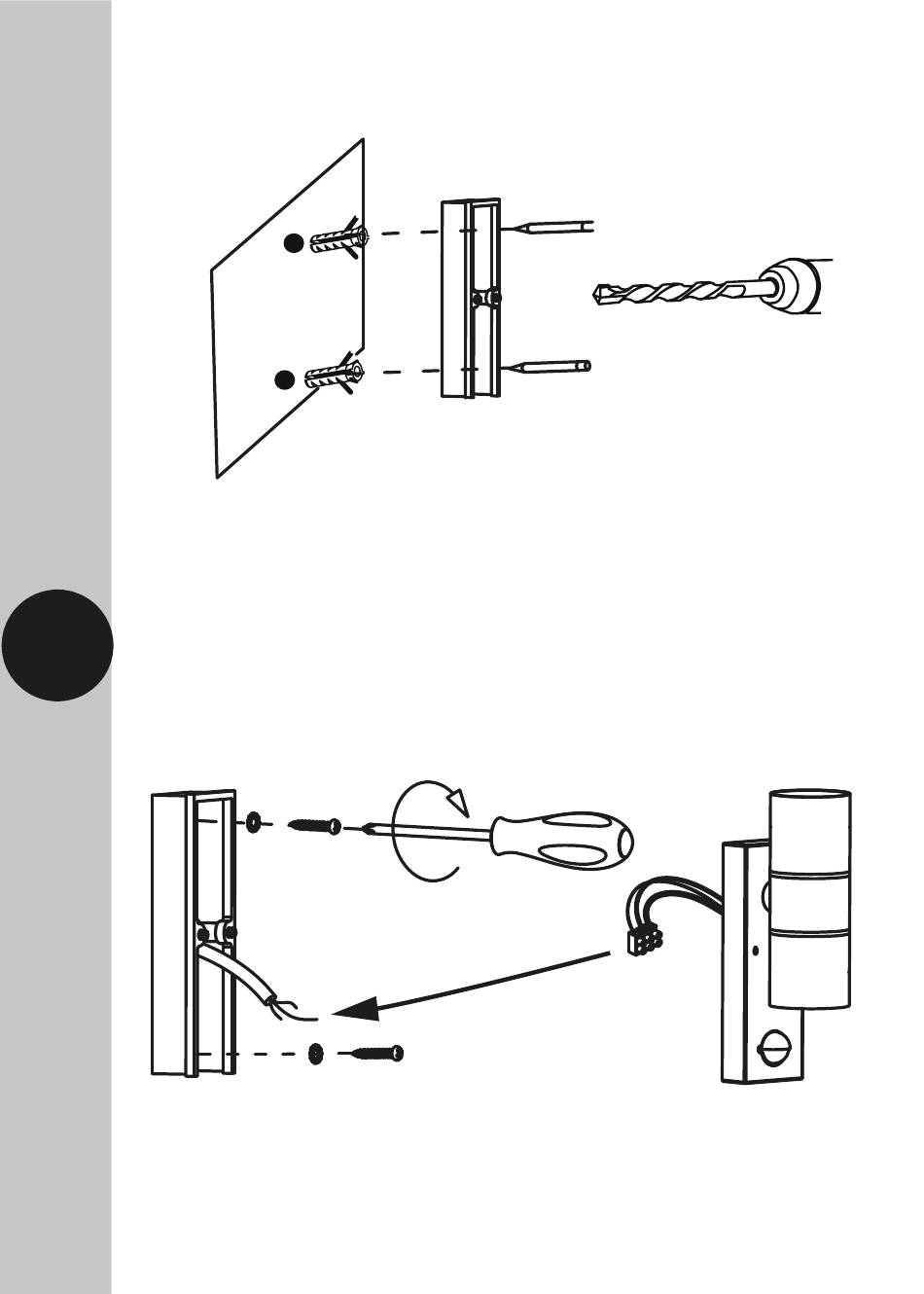

• Mark the position of the mouting holes on the wall using
the wall plate as a template.
• Drill the holes for the wall plugs ensuring not to infringe on
any gas/water pipes or electrical cables that may be hidden
below/behind the surface.
4
• Pass through the mains supply cable into the wall plate via
the grommet/cable grand ensuring there is a tight grip on
the cable to maintain the IP rating of the luminaire.
• Mount the wall plate to the wall, using the fittings provided.
• Connect the mains supply to the revelant terminals ensuring
the correct polarity is observed and that all bare conductors
are sleeved (see section 5. Connection Diagram).
