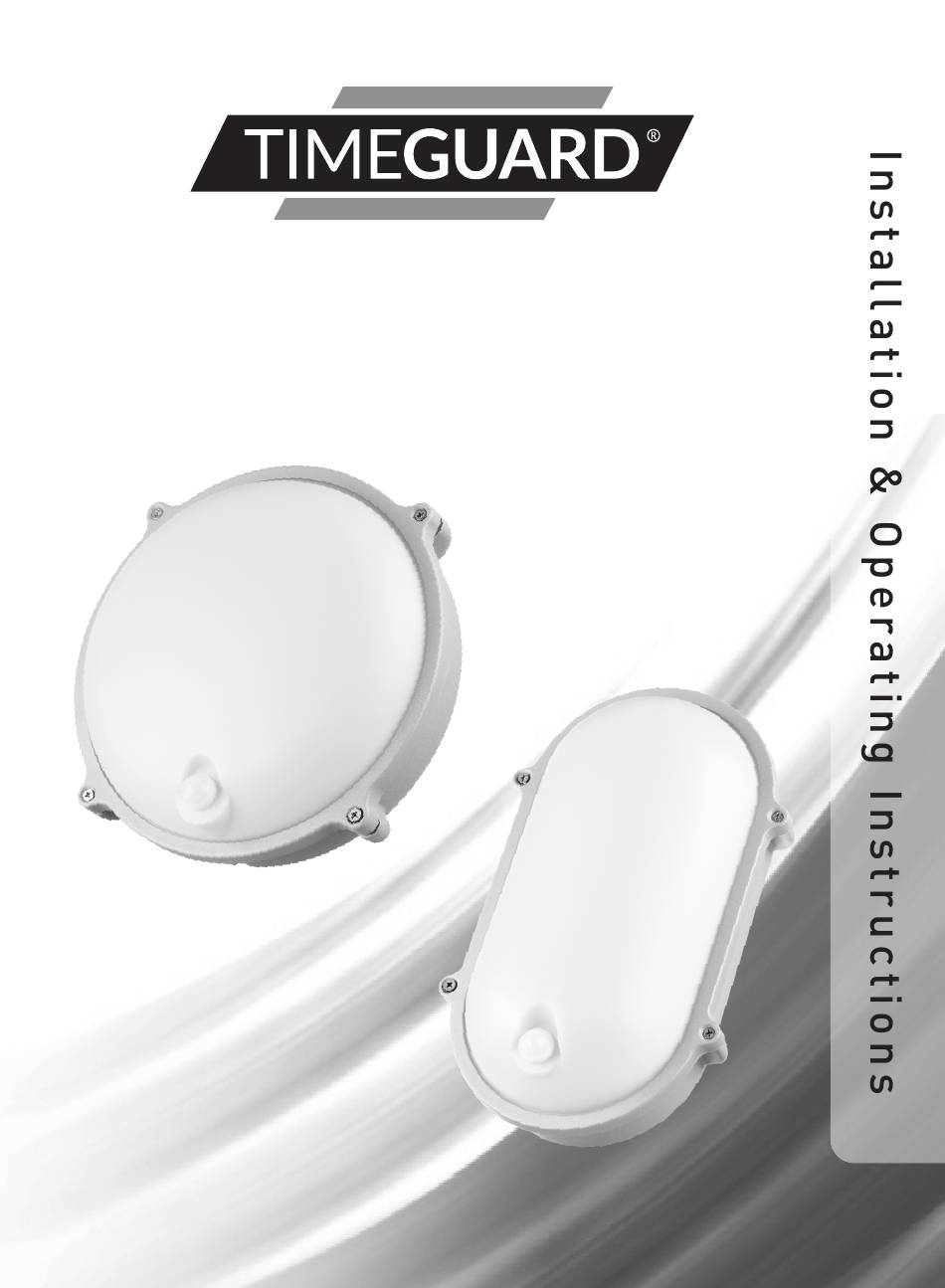

- Page 1 LED Energy Saver PIR Bulkhead Light Model: LEDBHR25WPIR Model: LEDBHO25WPIR...
- Page 2 1. General Information These instructions should be read carefully and retained for further reference and maintenance. Timeguard reserve the right to alter these instructions at any time. Note: Up to date instructions will always be available for download at www.timeguard.com/pdf-instructions 2.
- Page 3 • Time ON Adjustment: 10 seconds - 5 minutes • (LUX) level adjustment: 10 - 2000 • Manual Override: Yes (Pulse) • Colour Temperature 5000K • UKCA & CE Approved Model Watts Lumen Mounting Dimensions Output Hole Centres LEDBHO25WPIR 25W 2000lm 220mm H:270 W:165 D:86 LEDBHR25WPIR 25W...
- Page 4 • Reflective surfaces (i.e. pools of water, white painted walls, overhanging branches and other types of foliage) may cause false activation under heightened weather conditions. • During extreme weather conditions the PIR may exhibit unusual behaviour. Once normal weather resumes, the PIR will carryout normal operations.
- Page 5 • Secure the lens and bezel back into place using the 4 screws previously removed at the begining of the installation. 6. Connection Diagram -Lux+ -Sens+ -Time+ MAINS SUPPLY ISOLATION SWITCH Live (Brown or Red) Neutral (Blue or Black) Earth (Green/Yellow) 7.
- Page 6 8. Commissioning and Operation • Restore the power from the mains supply breaker or isolating switch and test for the correct operation. Walk Test Procedure • For best practise, ensure the diffuser is not hanging by the PIR control wire when setting / adjusting the PIR control dials. The diffuser will need supporting from the main housing to ensure the pin connector remains secure and operational.
- Page 7 Problem Cause/Solution The luminaire does Fautly light source. not switch on when Nearby light sources causing interference. in the detection area. Redirect the PIR or light source if possible. False activation. Heat sources as described in section 4. (Luminaire switches Reflective surfaces described in section 4.
- Page 8 If you experience problems, do not immediately return the unit to the store. Email the Timeguard Customer Helpline: HELPLINE helpline@timeguard.com or call the helpdesk on 020 8450 0515 Qualified Customer Support Coordinators will be online to assist in resolving your query. For a product brochure please contact: Timeguard Limited.
