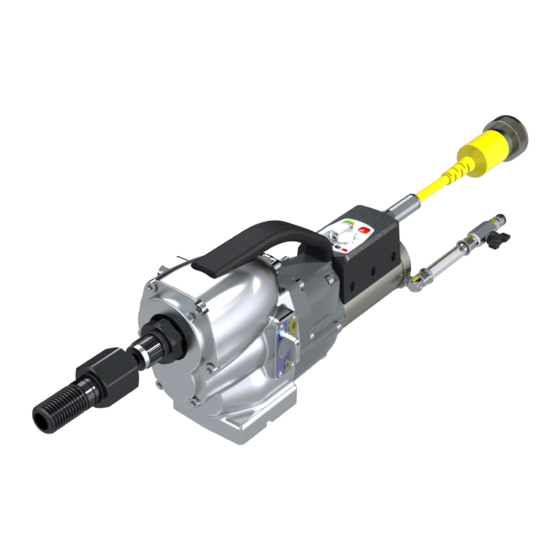

DR. BENDER
Innovative Power Tools
Operating Manual
Drive unit
HF III
Issued 05.2018
Alle Rechte vorbehalten / All rights reserved
DR. BENDER
We are on the internet at http://www.dr-bender.de
GmbH
Art No.: 102165
Art No.: 102429
GmbH • D-75382 Althengstett •
RX S / SL
Tel 07051-9291-0 • Fax 07051-9291-91
Subject to change
info@dr-bender.de
• email:
Advertisement
Table of Contents
Related Manuals for DR. BENDER RX S
Summary of Contents for DR. BENDER RX S
- Page 1 DR. BENDER GmbH Innovative Power Tools Operating Manual Drive unit RX S / SL HF III Issued 05.2018 Art No.: 102165 Subject to change Art No.: 102429 Alle Rechte vorbehalten / All rights reserved DR. BENDER GmbH • D-75382 Althengstett •...
- Page 2 Dr. BENDER GmbH Industriestrasse 22 75382 Althengstett declares that the machine RX S, RX SL conforms with the aforementioned Directive and the following Directives Machinery Directive of the European Parliament and Council (EC-RL 2006/42/EC) Electromagnetic compatibility (EMC) (2004/108/EC) Low Voltage Directive (2006/95/EC)
-
Page 3: Table Of Contents
Dimensions Technical data Noise emission and vibration [EN 50144] Operating temperatures Commissioning Mains connection Water connection Stone drilling machine RX S / SL Drill bits Safety instructions Repair and maintenance Daily maintenance Service after approx. 120 operating hours Quarterly Speed setting depending on cutting speed Warranty 10.0... -
Page 4: Symbol And Pictogram Description
Attention The safety instructions included in this operating manual must be followed! Custom models and design variants may deviate from the basic type in technical details. In the event of any discrepancies, we recommend that you contact DR.BENDER GmbH urgently. Always give the machine type and machine number in any correspondence. Symbol and pictograph description Warning Indicates instructions which may endanger your health or the functionality of the unit if... - Page 5 Safety signs on the machine Wear safety shoes Wear gloves Wear a safety helmet Wear protective goggles Wear ear protection Wear a breathing mask Pull the power plug before work on the device Read the instructions...
-
Page 6: Function Description
Function description On /off button Speed control Handle LED indicator UNC 1 ¼“ - Adapter Lever switch General instructions Technical description The BELUGA represents a whole new generation of drive units for stone cutting. The exceptionally com- prehensive modular system offers the flexibility needed today when performing cutting work in concrete and stone. -
Page 7: Applications
Applications The drive units BELUGA and the related Powerboxes can be used according to the data attached to the information plate. When you are using custom-built machines, the details on the quotation and the order confirmation also apply. The drive units and the Powerboxes are essentially Class I appliances, only this guarantees the full high- quality protection of the residual current circuit breaker. -
Page 8: Main Dimensions And Technical Data
Torque 400 V 3~ Gear 4 Torque 230 V 1~ Gear 1 Torque 230 V 1~ Gear 2 Torque 230 V 1~ Gear 3 Torque 230 V 1~ Gear 4 Degree of protection IP 67 Cooling medium Water Weight RX S / SL 17,0... -
Page 9: Noise Emission And Vibration [En 50144]
Connect the electrical power lead of the Beluga RX S / SL drive unit to the round socket located on the front of the Powerbox. Lock the bayonet sleeve of the plug socket until you hear it click, in order to maintain the required IP 67 protection. -
Page 10: Stone Drilling Machine Rx S / Sl
Stone drilling machine RX S / SL The Beluga RX S / SL is a very compact, completely redeveloped stone drilling machine for professional use. The machine can be operated from the 230 V 1~ mains or the 400 V 3~ mains. Thus it has a very broad range of uses. An outstanding feature is the four-speed gearbox. -
Page 11: Drill Bits
Drill bits You can use any drill bit with a connection thread of 1 ¼“ UNC or with a four-hole flange. Only use drill bits that are suitable for the stone type. Using only concentric drill bits that are not deformed prolongs the service life of the drive unit. -
Page 12: Repair And Maintenance
Repair and maintenance Warning Always disconnect from the mains before starting repair or maintenance work. After any repair, the unit must be checked by a qualified electrician (legal requirement pursuant to VBG4 since 1.1.1990). Daily maintenance Check that no water is leaking out of the unit. This may impair the electrical safety of the unit and lead to damage to the gearbox. -
Page 13: Warranty
Warranty Pursuant to our Terms & Conditions of Sale, we offer a warranty of 12 months from the date of purchase. This covers the free repair of material and production defects which are shown to have been caused prior to sale. An original sales receipt must always be produced when asserting a warranty claim. -
Page 14: Spare Parts Lists
11.0 Spare parts lists 11.1 Stone drilling machine RX SL Item Part no. Description 102429 Stone drilling machine RX SL 102428 Gear complete RX SL 201190 Motor complete 802403 Water hose 1 ** Wearing parts **... -
Page 15: Stone Drilling Machine Rx S
11.2 Stone drilling machine RX S Item Part no. Description 102431 Stone drilling machine RX S 102430 Gear complete RX S 201190 Motor complete 802403 Water hose 1 ** Wearing parts **... -
Page 16: Gear Rx Sl Complete
11.3 Gear complete RX SL... - Page 17 Item Part no. Description Item Part no. 102428 Gear complete 401684 O-ring 1 ** 102160 Lower flange 201189 Housing 101162 O-ring 1 ** 800077 Lock washer 901210 Rotary shaft seal 1 ** 900321 Allen head screw 102170 Drill spindle complete 900708 Rotary shaft seal 1 **...
-
Page 18: Gear Rx S Complete
11.4 Gear complete RX S... - Page 19 Item Part no. Description Item Part no. 102430 Gear complete 401684 O-ring 1 ** 102160 Lower flange 201189 Housing 101162 O-ring 1 ** 800077 Lock washer 901210 Rotary shaft seal 1 ** 900321 Allen head screw 102170 Drill spindle complete 900708 Rotary shaft seal 1 **...
-
Page 20: Motor Complete Rx S / Sl
11.5 Motor complete RX SL / S... - Page 21 Item Part no. Description 201190 Motor complete 201015 Motor housing 802407 Stator 302269 Rotor complete 901370 Groove ball bearing 1 ** 901094 Locking ring 800380 Snap ring 901208 Groove ball bearing 2 ** 801574 Bearing shim 401768 Distance bush 802354 Rotor resolver 901337 Shim...
