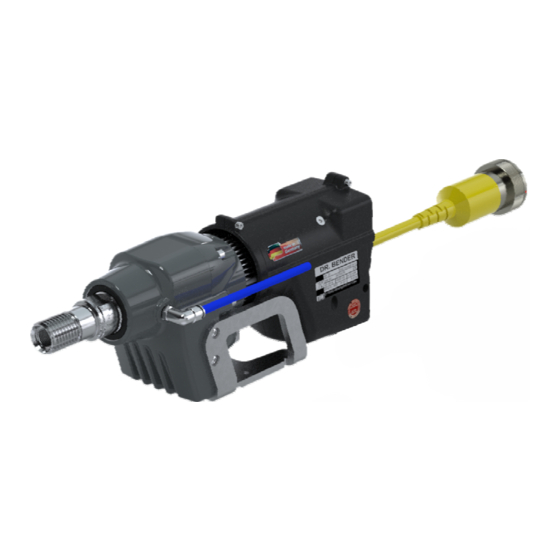

- Page 1 DR. BENDER GmbH Innovative Power Tools Operating Manual Beluga sXc / SXD Drive unit HF III Issued 11.2015 Subject to change All rights reserved DR. BENDER GmbH • D-75382 Althengstett • Tel 07051-9291-0 • Fax 07051-9291-91 We are on the internet at http://www.dr-bender.de info@dr-bender.de...
-
Page 2: Declaration Of Conformity
Industriestrasse 22 75382 Althengstett declares that the machine BELUGA SXC / SC BELUGA SXC / SCD D D D BELUGA SXC / SC BELUGA SXC / SC conforms with the aforementioned Directive and the following Directives Machinery Directive of the European Parliament and Council (EC-RL 2006/42/EC) -
Page 3: Table Of Contents
General instructions Technical description Applications Safety Transport and storage Transport Storage Main dimensions and technical data Dimensions 4.1.1 Beluga SXC 4.1.2 Beluga SXD Technical data 4.2.1 Beluga SXC 4.2.2 Beluga SXD Noise emission and vibration [EN 50144] Operating temperatures Commissioning... -
Page 4: Symbol And Pictogram Description
Attention The safety instructions included in this operating manual must be followed! Custom models and design variants may deviate from the basic type in technical details. In the event of any discrepancies, we recommend that you contact DR.BENDER GmbH urgently. Always give the machine type and machine number in any correspondence. - Page 5 Safety signs on the unit Wear safety shoes Wear protective gloves Wear protective helmet Wear protective goggles Wear ear protection Wear respiratory mask Disconnect power before working Read instructions...
-
Page 6: Function Description
Function description Beluga SXC Switch box halves Drill spindle Mains connection 1 ¼“ UNC Nameplate Base Water connection beluga SX D Mains connection Water connection Nameplate Drill spindle 1 ¼“ UNC Switch box Base Air inlet Operation panel... -
Page 7: General Instructions
General instruction Technical description The BELUGA SXC / SXD represent a whole new generation of drive units for stone cutting. The excep- tionally comprehensive modular system offers the flexibility needed today when performing cutting work in concrete and stone. To achieve this, newly developed high-frequency motor parts are used in the motor. -
Page 8: Safety
Safety Warning Before commissioning, check that the mains voltage and frequency match the data given on the information plate. ± 5 % voltage and/or ± 2 % frequency deviation are permitted. Repairs may only be performed by suitably qualified staff based on their training and experience. Pay particular attention to: the technical data and information on the permitted use (commissioning, standard operating conditions), which are included e.g. -
Page 9: Main Dimensions And Technical Data
Main dimensions and technical data Dimensions 4.1.1 Beluga SX C 4.1.2 Beluga SX D... -
Page 10: Technical Data
Sound power level Vibration dB(A) < 2,5 Operating temperatures If the system is sufficiently cooled, the Beluga SXD attains to the cooling water temperature. The plas- tic housing of the air cooled Beluga SXC attains temperatures of up to 45°C. -
Page 11: Commissioning
Commisionning Mains connection Attention Check whether the mains voltage matches the voltage given on the information plate. Check whether the mains voltage matches the voltage given on the information plate. Remove the protective covers on the plug sockets. These protective covers are designed to protect the socket against the ingress of water when the plug is not connected. -
Page 12: Operation Panel
Bedienung Beluga SXD / SXC Beluga SXD / SXC Beluga SXD / SXC Beluga SXD / SXC If the Powerbox will be connected to the net, the green LED flashes. This means that the power box is in standby mode. When you turn on the green pushbutton, the power box is switched on. -
Page 13: Drill Bits
Drill bits You can use any drill bit with a connection thread of 1 ¼“ UNC or with a four-hole flange or a six-hole flange. Only use drill bits that are suitable for the stone type. Using only concentric drill bits that are not deformed prolongs the service life of the drive unit. -
Page 14: Service After Approx. 120 Operating Hours
Service after 120 operating hours A service is due after 120 operating hours. The machine counts the operating hours itself and tells you when 120 operating hours are reached by a blue LED on the handle. All worn parts are replaced during this service. -
Page 15: Spare Parts Lists
11.0 Spare parts lists 11.1 Driving machine SXC Item Part no. Description 302189 Driving machine SXC 302197 Motor complete 302186 Gear complete 802463 Water connection complete 1 ** 802402 Thread nipple 802464 Hose 1 ** 801801 Ball valve complete 802465 Nipple 800040 O ring... -
Page 16: Driving Machine Sxd
11.2 Driving machine SXD Item Part no. Description 302221 Driving machine SXD 302222 Motor complete 302186 Gear complete 802402 Nipple 802464 Hose 1 ** Wearing parts **... -
Page 18: Motor Complete Sxc
11.3 Motor complete SXC... - Page 19 Item Part no. Description 302197 Motor complete SX C 102314 Motor housing 802022 Stator 302266 Rotor kompl. 901370 Groove ball bearing 1 ** 900801 Locking ring 1 ** 800380 Spring ring 901138 Shim ring 901208 Groove ball bearing 1 ** 801574 Cup spring 401768...
-
Page 20: Motor Complete Sxd
11.4 Motor complete SXD... - Page 21 Item Part no. Description 302222 Motor complete SX D 201015 Motor housing 802022 Stator 302266 Rotor complete 901370 Groove ball bearing 1 ** 900801 Locking ring 1 ** 800380 Spring ring 901138 Shim ring 901208 Groove ball bearing 1 ** 801574 Cup spring 401768...
-
Page 22: Gear Complete
11.5 Gear complete... - Page 23 Item Part no. Description 302186 Gear complete 201164 Gear housing 901139 Groove ball bearing 1 ** 900687 Shaft seal 2 ** 901354 Shim ring 302293 Drill spindle complete 901355 Taper roller bearing 1 ** 901202 Shaft seal 1 ** 901247 Parallel key 301597 Counter gear...
