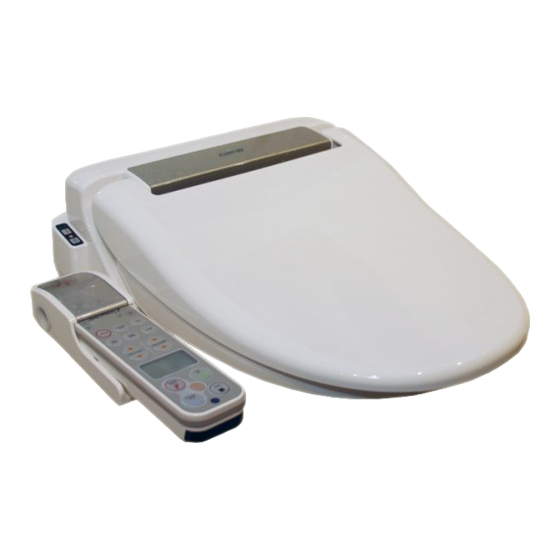

Coway Range of Bidets (PR01284)
https://ilcaustralia.org.au/products/1284
A range of bidet units which replace a conventional toilet
seat. They fit most standard toilets and can be installed onto
a specific over toilet frame. Available in electric and non-
electric. The electric models provide adjustable temperature,
pressure and range for the cleansing spray jet, adjustable
warm air drying and seat temperature. An elongated seat (for
larger users) is available for on some models. We
recommend checking your state or territory regulations as
some products must be installed by a licensed plumber to
comply with legislative requirements. Toilet raiser and
support arm options are available to attach to bidet.

General Details

Caution
Do not climb on the seat cover or body
Do not lean against the seat cover.
Do not insert a steel wire or sharp items into any part of the unit as it may cause electrical
hazards or damage.
Do not place a stove or heater close to the product as it may distort or catch fire.
Do not expose the product directly to the sun as the plastic could become discoloured.
The water pressure level should be set at 1 to protect the anal region.
To protect against low temperature burns, the temperature setting of the toilets, water and
air dryer should be set to Low or Off.

Method of Use

POWER: Plug the cord into the wall outlet. Press the Power button on the side control
panel.
CLEANING CYCLES:
Rear Cleansing (anal hygiene): Press the "Rear Cleansing" button while sitting on the
seat. Duration of wash cycle is pre set at 60 seconds. You can adjust nozzle position,
spray ranges, water temperature and pressure and move function.
Front Cleansing (feminine hygiene): Press the "Front Cleansing" button while sitting on
the seat. Duration of wash cycle is pre set at 60 seconds. You can adjust nozzle position,
water temperature, pressure and move function.
DRYING: Press the "Air Dryer" button and warm air blows out for 2 minutes. The
1300 885 886
Independent Living Centres Advisory
COWAY BA08 Bidet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR01284 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Coway PR01284

  • Page 1 1300 885 886 Independent Living Centres Advisory Product Details With suppliers in N/A Coway Range of Bidets (PR01284) https://ilcaustralia.org.au/products/1284 A range of bidet units which replace a conventional toilet seat. They fit most standard toilets and can be installed onto a specific over toilet frame.
  • Page 2 temperature is able to be adjusted using the up and down arrows. Cleaning Requirements Exterior Cleaning: Wipe the exterior parts with a soft sponge or cloth applying a small amount of neutral detergent. Do not use any detergents containing hydrochloric acid, solvents or benzene. Cleaning of Nozzles: Push "Nozzle Cleaning"...
  • Page 3 Arm supports and seat raisers: Throne toilet seat spacers (50mm and 80mm), Throne 3-in-1 toilet support arms and Throne bariatric toilet rails can be used with the bidets. Note - the Coway bidets raise the seat height by 50mm when installed.
  • Page 4 Model BA 08: Electronic bidet with wireless remote control unit. Features as per BA 07, with enema function and aerated water stream. Available with child seat that includes safety arms/handles. Also available in regular and elongated seat size. Load Capacity (supplier stated) 200 kg Model BA 07 : Electronic bidet with side control unit.
  • Page 5 Coway BA 08 Bidet Coway BA 08 Bidet Measurements of Coway bidet with 80mm toilet raiser Coway with toilet raiser (50 or 80mm height available) and arms Coway with toilet raiser and bariatric arms Maintenance Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
  • Page 6 Disclaimer Independent Living Centres Australia (ILCA) does not design or make products. ILCA cannot guarantee that all information given is correct. Prices shown are a rough guide. Some products may incur GST. Check with suppliers for up-to-date prices. The display of products at an ILCA centre, or details given in print, is only for your information.

This manual is also suitable for:

Ba 11Ba 12Ba 13Ba 15Ba 08Ba 07
