Summary of Contents for BEKA FOUNDATION BA418CF-F
- Page 1 Installation & Maintenance Instructions BA418CF-F Supplied by .com Call us on +44 (0)118 916 9420 | Email info@247able.com...
- Page 2 Installation & Maintenance Instructions BA418CF-F FOUNDATION™ fieldbus intrinsically safe panel mounting fieldbus indicator Reading Office Aberdeen Office Cutbush Park, Danehill, Lower Earley, Unit 6 Airside Business Park, Kirkhill Industrial Estate, Internet: www.able.co.uk Reading, Berkshire. RG6 4UT. UK. Dyce, Aberdeen. AB21 0GT. UK. e-procurement: www.247able.com Tel: +44 (0)118 9311188 Tel: +44 (0)1224 725999...
- Page 3 BA418CF-F FOUNDATION™ fieldbus Intrinsically safe Panel mounting Fieldbus Indicator Issue: 5 Issue: 5 December 2011...
-
Page 4: Table Of Contents
CONTENTS 1. Description 6. Accessories 1.1 Documentation 6.1 Scale marking 6.2 Tag number 6.3 Fieldbus Interface Guide 2. Intrinsic Safety Certification 2.1 ATEX certificate 2.2 Zones, gas groups and T rating 7. Index 2.3 Fieldbus connection 2.4 Certification Iabel Information Appendix 1 3. -
Page 5: Description
Fieldbus Displays and 200 o C Fieldbus Indicators 135 o C which can be requested via the BEKA web site At an ambient temperature between –40 and www.beka.co.uk Note: the guaranteed operating temperature range System design information for FM, cFM and IECEx of the Fieldbus Indicator is –20 to +70... -
Page 6: Fieldbus Connection
3.2 Non-FISCO Systems the ATEX certification and a statement that the For non-FISCO applications the BA418CF-F instrument is a FISCO Field Device, plus BEKA Fieldbus Indicator has a higher voltage entity associates name and location. IECEx approval intrinsic safety input parameter allowing connection information is also included. -
Page 7: Installation

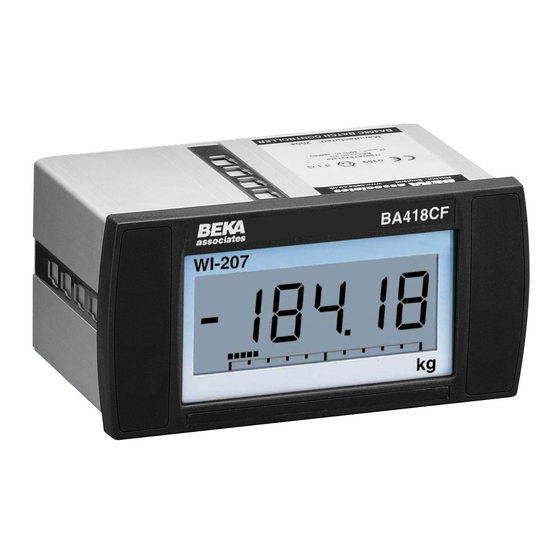

4. INSTALLATION 4.1 Location The BA418CF-F is housed in a robust aluminium enclosure with a toughened glass window mounted in a Noryl bezel. The front of the instrument provides IP66 protection and a gasket seals the joint between the instrument enclosure and the panel. -
Page 8: Installation Procedure
4.2 Installation Procedure a. Insert the BA418CF-F into the instrument panel cut-out from the front of the panel. b. Fix panel mounting clips to opposite sides of instrument tighten until instrument is secure. Four clips are required to achieve an IP66 seal between the instrument enclosure and the panel. -
Page 9: Maintenance
5.5 Guarantee bargraph Instruments which fail within the guarantee period segments should be returned to BEKA associates or our local activated and bargraph scale agent. It is helpful if a brief description of the fault flashing. symptoms is provided. -
Page 10: Accessories
6.3 Fieldbus Interface Guide The FOUNDATION™ fieldbus Interface Guide for Fieldbus Displays & Fieldbus Indicators contains commissioning information for the BA418CF-F. A copy may be requested from the BEKA sales office or from the BEKA web site at www.beka.co.uk... -
Page 11: Index
7. INDEX Subject Section Subject Section ATEX Directive Notified Body 1; 2.1 Codes Servicing Certification Scale marking ATEX CFM Canada 1.0; Appendix 1 Tag number EC-Type Examination 2.1 T rating FM USA Appendix 1 Appendices 1 & 2. IECEx Appendix 2 Terminal numbers Fig 3 Label ATEX... - Page 12 Zener barriers or www.beka.co.uk. galvanic isolators. US installations must comply with the BEKA associates Control Drawing CI410- 13, which is attached to this Appendix, and with A1.1 Intrinsic safey approval the National Electrical Code ANSI/NFPA70.
- Page 13 UNCLASSIFIED LOCATION HAZARDOUS (CLASSIFIED) LOCATION BA414DF LOCATIONS: Class I, Division 1, Groups A, B,C, D Class II, Division 1, Groups E, F & G Class III Class I, Zone 0, Group IIC NOTE 9 BA418CF LOCATIONS: NOTE 1 Class I, Division 1, Groups A, B,C, D Class I, Zone 0, Group IIC BA414DF and BA418CF BA414DF or...
- Page 14 To maintain IP66 protection between the BA418CF and the mounting panel: Four panel mounting clips should be used Minimum panel thickness should be 2mm (0.08inches) Steel 3mm (0.12inches) Aluminium Outside panel finish should be smooth, free from particle inclusions, runs or build-up around cut-out.
- Page 15 FISCO Rules The FISCO Concept allows the interconnection of intrinsically safe apparatus to associated apparatus not specifically examined in such combination. The criterion for such interconnection is that the voltage (Vmax), the current (Imax) and the power (Pmax) which intrinsically safe apparatus can receive and remain intrinsically safe, considering faults, must be equal or greater than the voltage (Uo, Voc or Vt), the current (Io, Isc or It) and the power (Po) which can be provided by the associated apparatus (supply unit).
- Page 16 HAZARDOUS (CLASSIFIED) LOCATION UNCLASSIFIED LOCATION BA414DF LOCATIONS: Class I, Division 2, Groups A, B,C, D Class II, Division 2, Groups E, F & G Class III Class I, Zone 2, Groups IIC BA418CF LOCATIONS: Class I, Division 2, Groups A, B,C, D NOTE 8 Class I, Zone 2, Groups IIC BA414DF and BA418CF...
- Page 17 FNICO non-linear power supply A FNICO non-linear fieldbus power supply shall be: FM Approved Associated Nonincendive Field Wiring Apparatus installed in the unclassified location complying with the following table: For Canadian Installations apparatus shall be CFM or CSA approved. FM Approved Nonincendive Field Wiring Apparatus installed in the classified location complying with the following table: For Canadian Installations apparatus shall be CFM or CSA approved.
- Page 18 When installed in a hazardous (classified) location the BA414DF Fieldbus Indicator shall be fitted with cable glands / conduit hubs selected from the following table. Metallic glands and hubs must be grounded – see note 6. Class Permitted gland or conduit hub Class I Any metallic or plastic cable gland or conduit hub that provides the required environmental protection.
- Page 19 FNICO Rules The FNICO Concept allows the interconnection of intrinsically safe apparatus to associated apparatus not specifically examined in such combination. The criterion for such interconnection is that the voltage (Vmax), the current (Imax) and the power (Pmax) which intrinsically safe apparatus can receive and remain intrinsically safe, considering faults, must be equal or greater than the voltage (Uo, Voc or Vt), the current (Io, Isc or It) and the power (Po) which can be provided by the associated apparatus (supply unit).
- Page 20 FISCO Field Device requirements specified in For additional information about the IECEx IEC60079-27. certification scheme and to view the BEKA associate certificates, please visit www.iecex.com The IECEx certificate may be downloaded from www.beka.co.uk, www.iecex.com or requested A2.1 IECEx Certificate of Conformity from the BEKA sales office.
