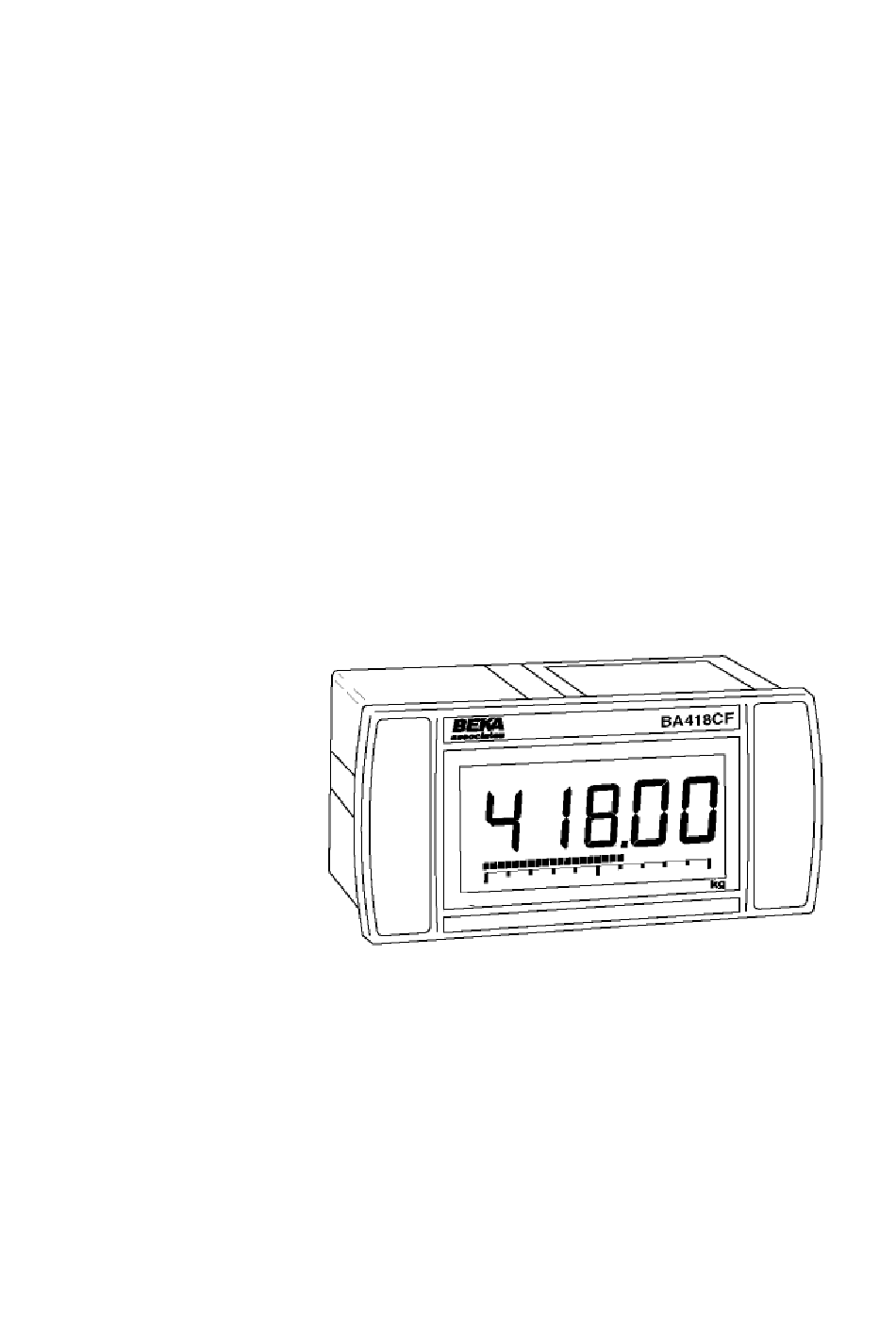

- Page 1 BA418CF-F FOUNDATION™ fieldbus Intrinsically safe Panel mounting Fieldbus Indicator Issue: 8 Issue: 8 27th March 2019...
-
Page 2: Table Of Contents
5.1 Fault finding during commissioning 5.2 Fault finding after commissioning 5.3 Servicing 5.4 Routine maintenance 5.5 Guarantee 5.6 Customer comments The BA418CF-F is CE marked to show compliance with the European Explosive Atmospheres Directive 2014/34/EU and the European EMC Directive 2014/30/EU... -
Page 3: Description
The BA418CF-F also has intrinsic safety and 2.2 Ex ia Zones, gas groups and T rating nonincendive FM and cFM Approval allowing The BA418CF-F has Group II Category 1G Ex ia installation Canada IIC T4 Ga –40 ≤ Ta ≤ 70 C FISCO and entity - see Appendix 1. -
Page 4: Ex Ic Zones, Gas Groups And T Rating
2.3 Ex ic Zones, gas groups and T rating The BA418CF-F also has Group II Category 3G Ex ic IIC T4 Gc –40 ≤ Ta ≤ 70 C entity parameter approval with a higher Ui input voltage than the Ex ia approval. -
Page 5: Ex Ic Entity Systems
Therefore these BA418CF-F parameters do not need to be considered. 3.3 Ex ic entity systems The BA418CF-F Fieldbus Indicator also has Ex ic certification with entity parameters for applications in Zone 2. The high Ui voltage allows the... -
Page 6: Installation
4. INSTALLATION 4.1 Location The BA418CF-F is housed in a robust aluminium enclosure with toughened glass window mounted in a Noryl bezel. The front of the instrument provides IP66 protection and a gasket seals the joint between the instrument enclosure and the panel. -
Page 7: Installation Procedure
4.2 Installation Procedure 4.3 EMC The BA418CF-F complies with the requirements of a. Insert the BA418CF-F into the instrument the European EMC Directive 2014/30/EU. panel cut-out from the front of the panel. specified immunity, all wiring should be in screened twisted pairs with the screens earthed at b. -
Page 8: Maintenance
If a BA418CF-F fails after it has been functioning correctly, the table shown in section 5.1 may help to identify the cause of the failure. -
Page 9: Accessories
6.2 Tag number The BA418CF-F can be supplied with a thermally printed tag number on the rear panel adjacent to the terminals. 6.3 Fieldbus Interface Guide The FOUNDATION™... - Page 10 APPENDIX 1 FM approval for use in the USA and FM and CFM Approval also allows the BA418CF-F cFM Approval for use in Canada to be connected to non-FISCO systems using the entity concept – see section 3.2 of this manual.
- Page 18 APPENDIX 2 A3.4 Versions of the BA418CF-F IECEx certification All versions of the BA418CF-F Fieldbus Indicator have IECEx, FM and cFM certification. A3.0 The IECEx Certification Scheme IECEx is a global certification scheme for explosion protected products which aims to harmonise international certification standards.
