- Page 1 Badge Reader for Connected Doorlock manual PA4010B1...
-
Page 2: Pack Content

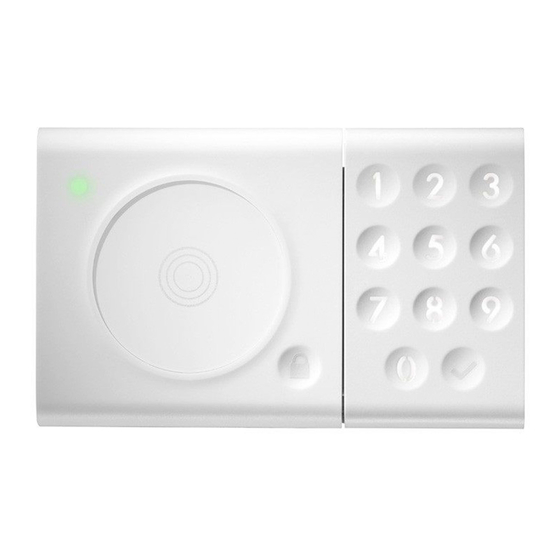

Badge Reader Pack content Badge Reader x1 (Optional Keypad) Card x1 Keyring x1 Bracelet x1 AAA batteries x3 Bolting kit . Wall mounting screws x3 . Wall mounting anchors x3 . Allen key to lock the product x1... - Page 3 Badge Reader Badge Reader installation Reader commissioning: open the top Insert the batteries, observing the cover of the reader. correct polarity, into the Badge Reader.
- Page 4 Badge Reader Reader configuration on Somfy Keys App Your Connected Doorlock has to be Click on «Badge Reader» and follow installed on your door and configured Somfy Keys instructions to register the on Somfy Keys application. product. Open Somfy Keys.
- Page 5 Badge Reader Installation of the Badge Reader CLICK Close the casing until hearing the Lock the casing with the Allen key by «click». The keypad lights for 3 turning the screw to the left. seconds.
- Page 6 Badge Reader Badge Reader fixing 2 choices to install the reader: by using Put your reader outside, near your the double face adhesive tape or the Connected Doorlock. bolting kit. Be sure to respect the following instructions: 5 m max...
- Page 7 Opening and closing mode of the Connected Doorlock With badges With codes Register your badges with Somfy Keys Create your codes on Somfy Keys application. In the «Badges» tab, enter application. In the «Doorlock» tab, go the serial number written on them.
-
Page 8: Reset Procedure
Badge Reader Reset procedure 3 SEC To reset the Badge Reader: 1- Open the Badge Reader. 2- Press for 3 seconds the Reset button. 3- The reader will beep and blink green 3 times. - Page 9 . If the battery compartment is not well closed, do not use the product and keep it out of the reach of children. Batteries change and end of life: . The Badge Reader will indicate you when you’ll have to replace the batteries. It’ll blink orange before each lock or unlock.
-
Page 10: Technical Characteristics
Badge Reader Technical characteristics Badge Reader technology <> Bluetooth lock 4.0 Badge Reader technology <> RFID Badge Radio frequency 2.4 GHz Radio frequency 13.56 MHz Frequency bands 2402 - 2480 MHz p.a.r < 25 mW Frequency bands 11.810 MHz - 15.310 MHz p.a.r < 83 dbμA/m @ 3m @ f = 13.56 MHz... - Page 11 Lights codes + Bip ! + Bip ! Successful operation! Low battery Access denied Badge Reader is equipped with a LED. It’ll inform you the correct execution of your order. Other codes: Time out Communication failed Badge or code not valid...
-
Page 12: General Safety Instructions
Before the installation, check the compatibility splashes, or immerse it. of this Somfy product with the associated equip- Do not attempt to repair it. ment and accessories. This manual describes installation and use of this product. -
Page 13: Warranty
Badge Reader Warranty This product has a warranty of 24 months from SOMFY ACTIVITES SA hereby declares that the the date of purchase. radio equipment covered by these instructions If a technical malfunctionning is noticed by complies with the requirements of the Radio... - Page 14 F - 74300 CLUSES www.somfy.fr Somfy is taking into account evolution and improvment consequently modifications could be done without notice. Non-contractual photos. Copyright 2018 Copyright c 2018 Somfy ACTIVITES SA. All rights reserved SOMFY ACTIVITES SA, capital 35.000.000 Euros, RCS Annecy 303.970.230 - 06/2017...
