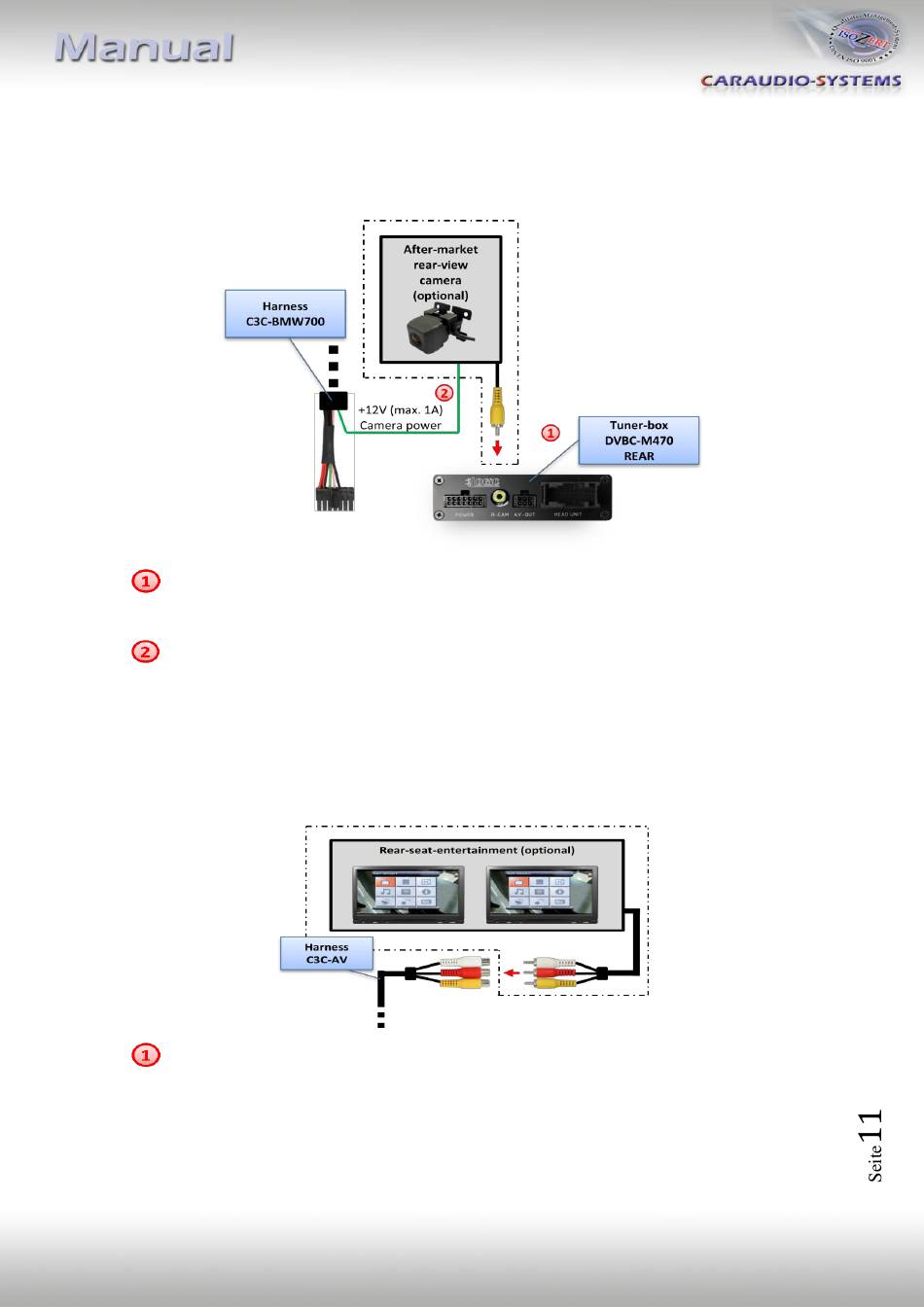

3.5.3. After-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector R-CAM IN of tuner-box DVBC-M470.
Connect the green wire of C3C-BMW700 to the camera power supply (+12V max. 1A)
The green wire is high (+12V) when reverse gear is engaged.
Note: Compatible with NTSC cameras only.
3.5.4. After-market rear-seat-entertainment
Using RCA-cables, connect the rear-seat-entertainment to the female RCA-connector
VIDEO OUT of tuner-box DVBC-M470.
Note: As the output is a full output, not shared with the video signal for the
navigation system, splitting the video with an RCA Y-cable might give a good enough
picture for two rear-seat-entertainment monitors. If not, or if connecting more than
two monitors, use a video splitter.
