LEONIE
23"
Model :
034723-F08
034723-H01
For installing under counter sink and top

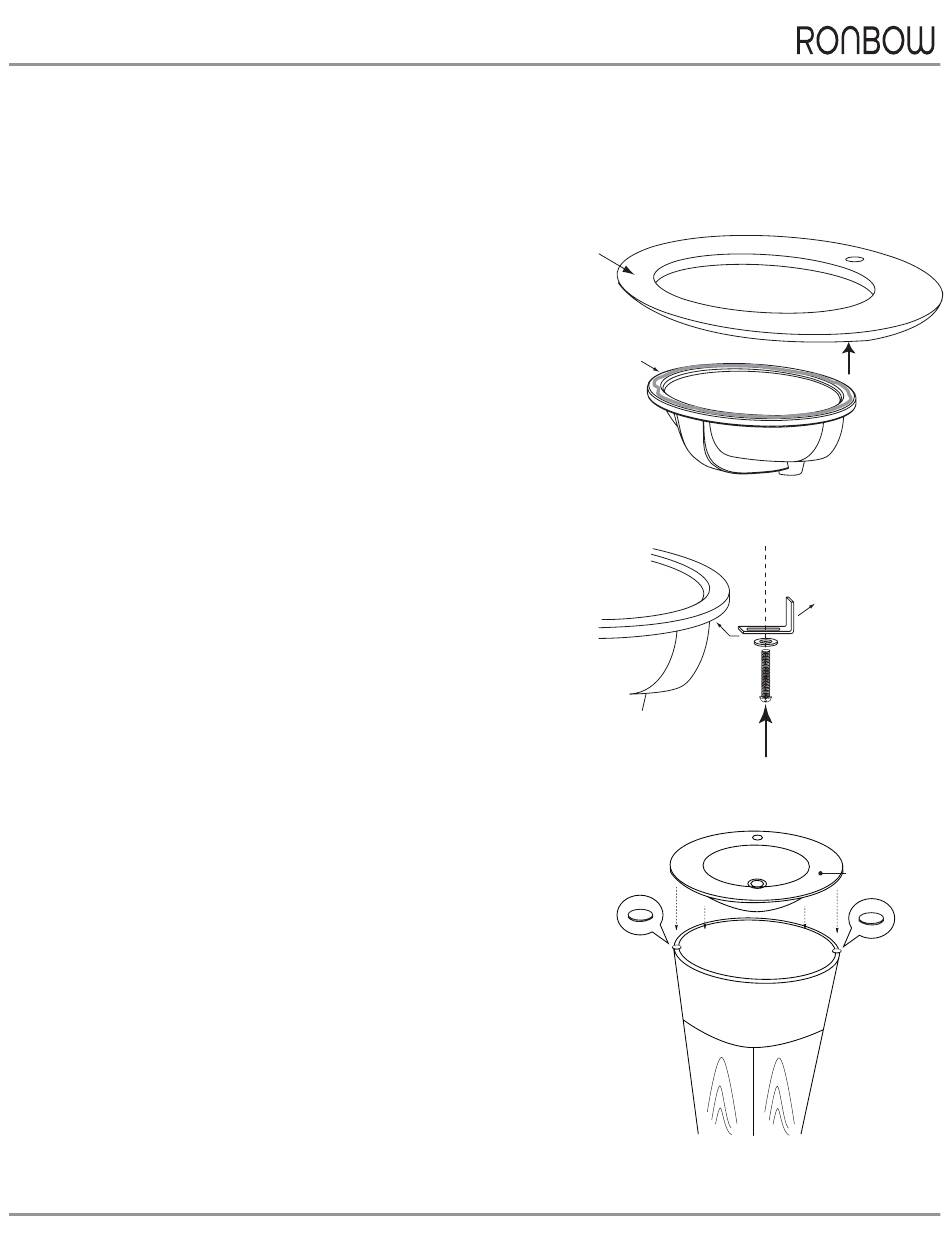

Step 1 :
Apply adhesive caulking around the
topside of rim near the edge, Carefully
raise sink in place, align, and press firmly
See Figure 1.
Step 2 :
Attach 4 undermount-clips to hold
lavatory in place
See Figure 2.
Step 3 :
Secure top & back splash to cabinet by
using adhesive caulk
See Figure 3.
INSTALLATION GUIDE
Sink :
Countertop :
200555
218023
INSTALLATION SHEET
307023
367023
Figure 1.
Counter top
adhesive caulking
Figure 2.
Figure 3.
silicon pad
ronbow.com
Contempo Collection
Undermount Clip
to be continued on next page
Stone Counter
silicon pad
REV. 061915
