Ronbow CONTEMPO DEVON 032523 Installation Sheet

Hide thumbs

DEVON

23" / 31" / 36"

MODEL:

032523

032531

032536

NOTE:

For installing under counter sink with

counter top.

STEP 1:

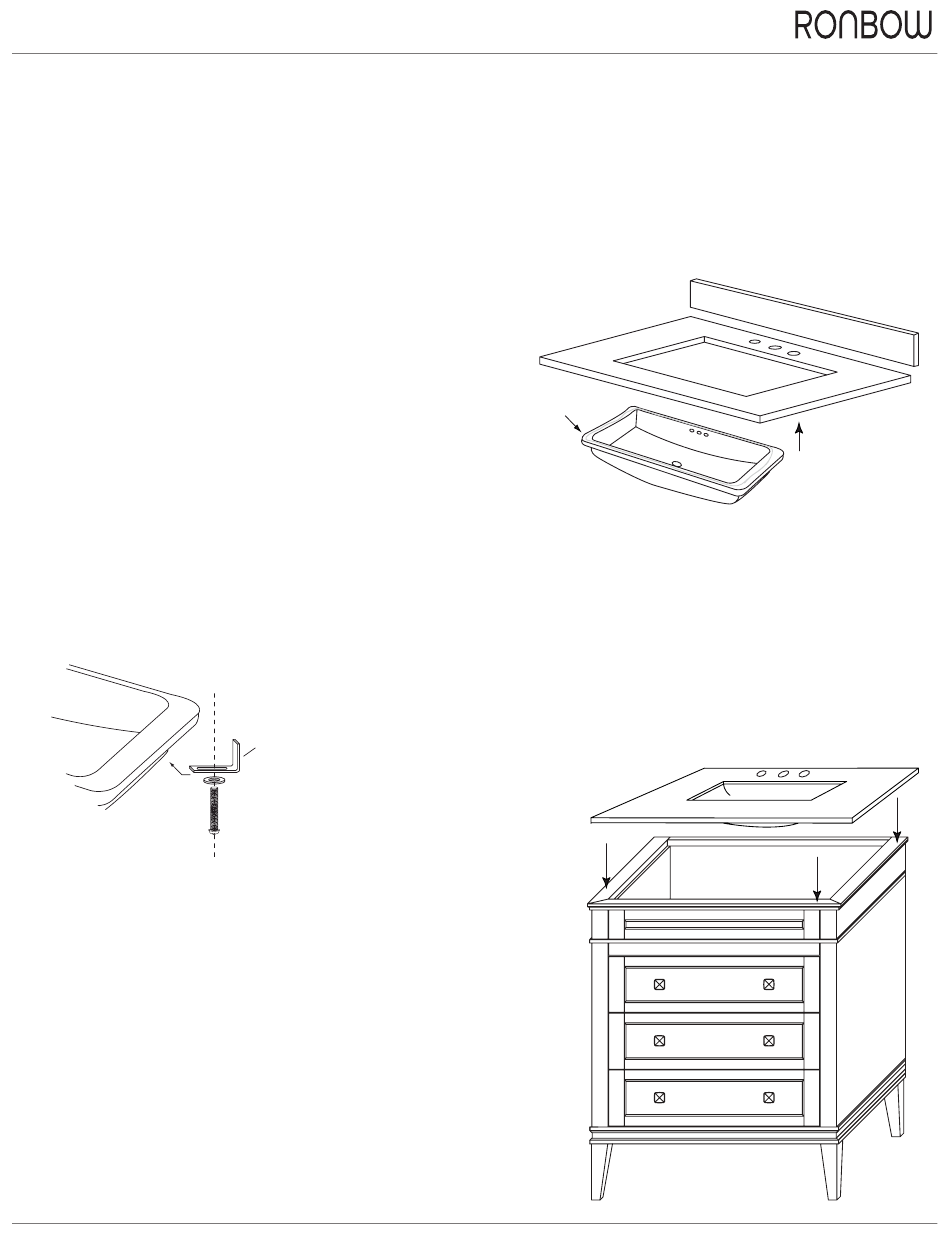

Apply adhesive caulking around the

topside of rim near the edge. Carefully raise

sink in place, align, and press firmly.

See Figure 1.

STEP 2:

Attach 4 undermount-clips to hold

lavatory in place

See Figure 2.

Figure 2.

STEP 3:

Secure top & back splash to cabinet

by using adhesive caulk

See Figure 3.

INSTALLATION GUIDE

INSTALLATION SHEET

Figure 1.

Undermount Clip

Figure 3.

Adhesive Caulking

ronbow.com

CONTEMPO COLLECTION

Back Splash

Counter Top

REV. 061915
