- Page 1 USER MANUAL AKASO DL12 Mirror Dash Cam V1.2...
-
Page 2: Table Of Contents
CONTENTS What’s in the Box Camera Overview Installation Formatting the MicroSD Card Setting Play Videos on Computer Specifications Precautions Q&A Contact Us... -
Page 3: What's In The Box
What’s in the Box DL12 Dual Dash Cam * 1 Rear Camera * 1 GPS * 1 Rear Camera Car Charger Adapter * 1 Screws * 2 Extension Cable * 1 Double-sided Pry Tool * 1 Cable Clips * 5... -
Page 4: Camera Overview

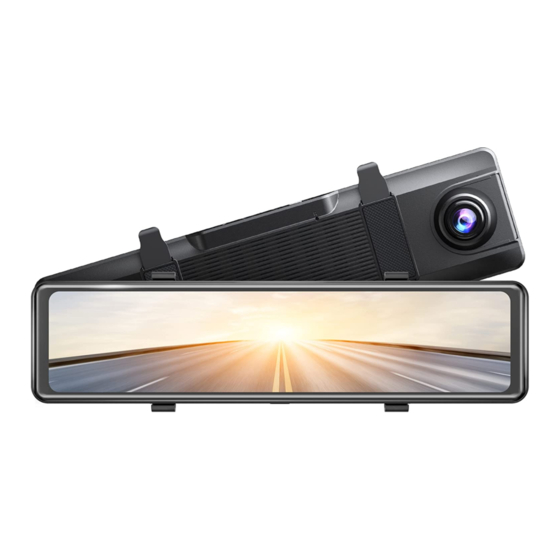

CAMERA OVERVIEW USB Power Port GPS Port Rear Camera IN MicroSD Card Slot Touch Screen Back Clasp Reset Back Clasp Front Camera Speaker Power Button / Screen Saver... -
Page 5: Installation
INSTALLATION 1. Insert the microSD card into the mirror dash cam. 2. Attach the mirror dash cam on the rear view mirror by straps. 3. Connect the car charger to the car cigarette lighter port, then connect the USB connector to the USB power port of the mirror dash cam. 4. - Page 6 7. Use the pry tool to hide the cables, please refer to the following instructions. Cable Clip A-Pillar A-Pillar 8. Install the rear camera. ① Installation position options. Position 1: Install the rear camera on the rear windshield. Position 1 is designed for live stream rear review only, not for reversing guide.
- Page 7 Position 2: Install the rear camera near the license plate. Position 2 is highly recommended. The back image is crisp and clear for both rear viewing and reversing guide. To use the reversing function, install the rear camera in position 2, then connect the red trigger cable of rear camera extension cable to the positive lead of the car reversing lamp.
-
Page 8: Formatting The Microsd Card
FORMATTING THE MICROSD CARD 1. Press to stop recording, if necessary. Tap to enter the Settings interface. 2. Select "Format" then tap the "OK" icon to format the microSD card. Format Back Resolution Loop Record Time-Lapse Record Audio G-Sensor Parking Guard License Screen Saver Video Encode... -
Page 9: Setting
SETTING After turning on the camera, click the screen and press to stop recording. 00:00:54 2020-01-03 03:33:16 PM The time displayed in the top-left corner indicates how long has been recorded. When the time displays “0:00:00”, that means the card is full. If turning on ”Loop Record”, you don’t need to change or format the card, it still records and the latest file will automatically overwrite the existed file. - Page 10 Double click any of the videos , it will be played on the screen. Click the icon in front of a video name to choose the video. Click the Select All button to choose all the videos, click “Delete Selected” to delete the chosen videos.
- Page 11 When recording videos, click the icon to save the photo. 00:00:54 2020-01-03 03:33:16 PM 3. Lock The Current Video When DL12 begins to work, click the icon to lock the current video. The video is about 20s. 00:00:54 2020-01-03 03:33:16 PM Click the lock-icon to unlock the current recording video.
- Page 12 0mp/h 17:23 TUESDAY 2020-03-24 4. Setup Click to enter Settings. 00:00:54 2020-01-03 03:33:16 PM Return Return Resolution Loop recording Audio G-Sensor Parking Guard License Screen Saver Video Encode Frequency Key Voice Volume Boot Sound Stream Media Language Date/Time Format Default Setting...
- Page 13 Resolution: 2K+1080P/1080P+1080P for optional, default is 2K + 1080P. Set the video resolution for recording. Loop Record: 1 Minute / 3 Minutes / 5 Minutes for optional, default is 1 Minute. The files will be saved every 3 minutes if you choose 3 minutes. When the memory card is full, the new files will cover the existed one if the loop recording is on;...
- Page 14 Frequency: 50Hz/60Hz for optional, default is 60Hz. Mirror Image: Off / On for optional, default is on. When Mirror Image turnes on, the principle is just like traditional rear view mirror, image displayed on the screen is opposite. Key Tone: Off / On for optional, default is On. Turn On / Off...
-
Page 15: Play Videos On Computer
Support GPS Module Included Note: MicroSD Card U3 or above is Highly Recommended for DL12 mirror dash cam (MicroSD card is not included). Please format the card in the camera before using this mirror dash cam. PRECAUTIONS 1. Please safekeep, prevent the lens from scratch and dirt. -
Page 16: Q&A
Q&A Q: Why the camera always indicates “no card inserted”? A: 1. Please ensure that the memory card is U3 or above. 2. Format the memory card on computer firstly. When you format it on computer, please choose "FAT32(Default)" on File system, and choose "32 kilobytes" on Allocation unit size. -
Page 17: Contact Us
CONTACT US For any inquires with AKASO products, please feel free to contact us, we will respond within 24 hours. E-mail: cs@akasotech.com Tel: (888) 466-9222 (US) Mon-Fri (except holiday) 9am-5pm (EST) Official website: www.akasotech.com...
