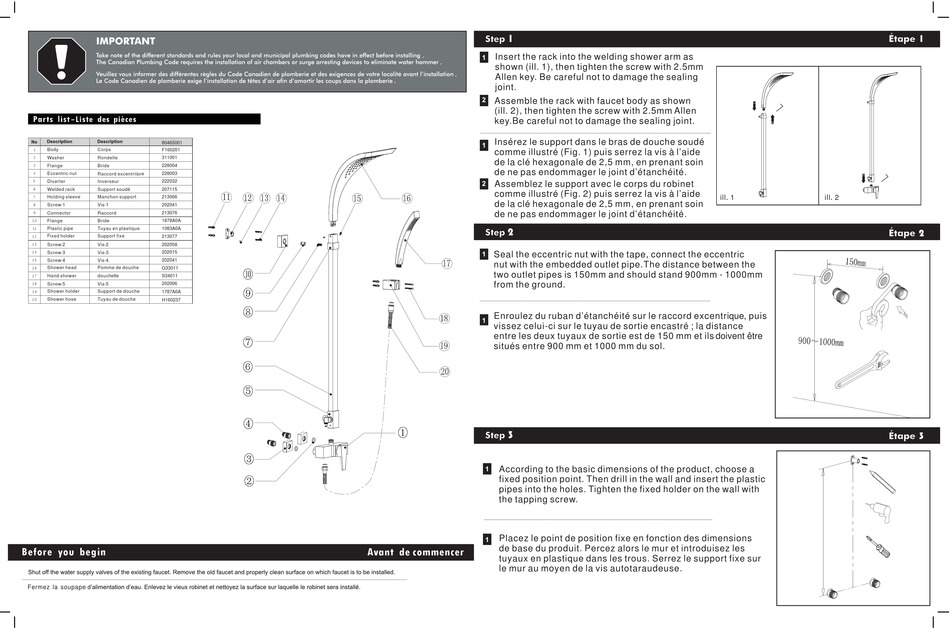

Uberhaus 80465001 Installation Instruction

Shower column

Advertisement

Quick Links

Liste de pieces
s
80465001
1
Body
Corps
F160201
2
Washer
Rondelle
311001
3
Flange
Bride
228004
4
Eccentric nut
Raccord excentr que
228003
i
5
Diverter
Inverseur
222032
6
Welded rack
Support soudé
207115
7
213066
Holding sleeve
Manchon support
8
Screw-1
Vis-1
202041
9
213076
Connector
Raccord
1 0
Flange
Bride
1878A0A
11
Plastic pipe
Tuyau en plastique
1083A0A
F
ixed holder
Support fixe
1 2
213077
1 3
Screw-2
Vis-2
202058
1 4
Screw-3
Vis-3
202015
1 5
Screw-4
Vis-4
202041
1 6
Shower head
Pomme de douche
G33011
1 7
Hand shower
douchette
S34011
1 8
Screw-5
Vis-5
202006
1 9
Shower holder
Support de douche
1787A0A
2 0
Shower hose
Tuyau de douche
H160237
Before you begin
Fermez la soupape
1
.
Insert the rack into the welding shower arm as
.
shown (ill. 1), then tighten the screw with 2.5mm
.
Allen key. Be careful not to damage the sealing
.
joint.
Assemble the rack with faucet body as shown
(ill. 2), then tighten the screw with 2.5mm Allen
key.Be careful not to damage the sealing joint.
Insérez le support dans le bras de douche soudé
comme illustré (Fig. 1) puis serrez la vis à l'aide
de la clé hexagonale de 2,5 mm, en prenant soin
de ne pas endommager le joint d'étanchéité.
Assemblez le support avec le corps du robinet
comme illustré (Fig. 2) puis serrez la vis à l'aide
de la clé hexagonale de 2,5 mm, en prenant soin
de ne pas endommager le joint d'étanchéité.
2
Seal the eccentric nut with the tape, connect the eccentric
nut with the embedded outlet pipe.The distance between the
two outlet pipes is 150mm and should stand 900mm - 1000mm
from the ground.
Enroulez du ruban d'étanchéité sur le raccord excentrique, puis
vissez celui-ci sur le tuyau de sortie encastré ; la distance
entre les deux tuyaux de sortie est de 150 mm et ils
situés entre 900 mm et 1000 mm du sol.
3
According to the basic dimensions of the product, choose a
fixed position point. Then drill in the wall and insert the plastic
pipes into the holes. Tighten the fixed holder on the wall with
the tapping screw.
Placez le point de position fixe en fonction des dimensions
Avant de commencer
de base du produit. Percez alors le mur et introduisez les
tuyaux en plastique dans les trous. Serrez le support fixe sur
le mur au moyen de la vis autotaraudeuse.
ill. 1
ill.2
doivent être
1
2
3
