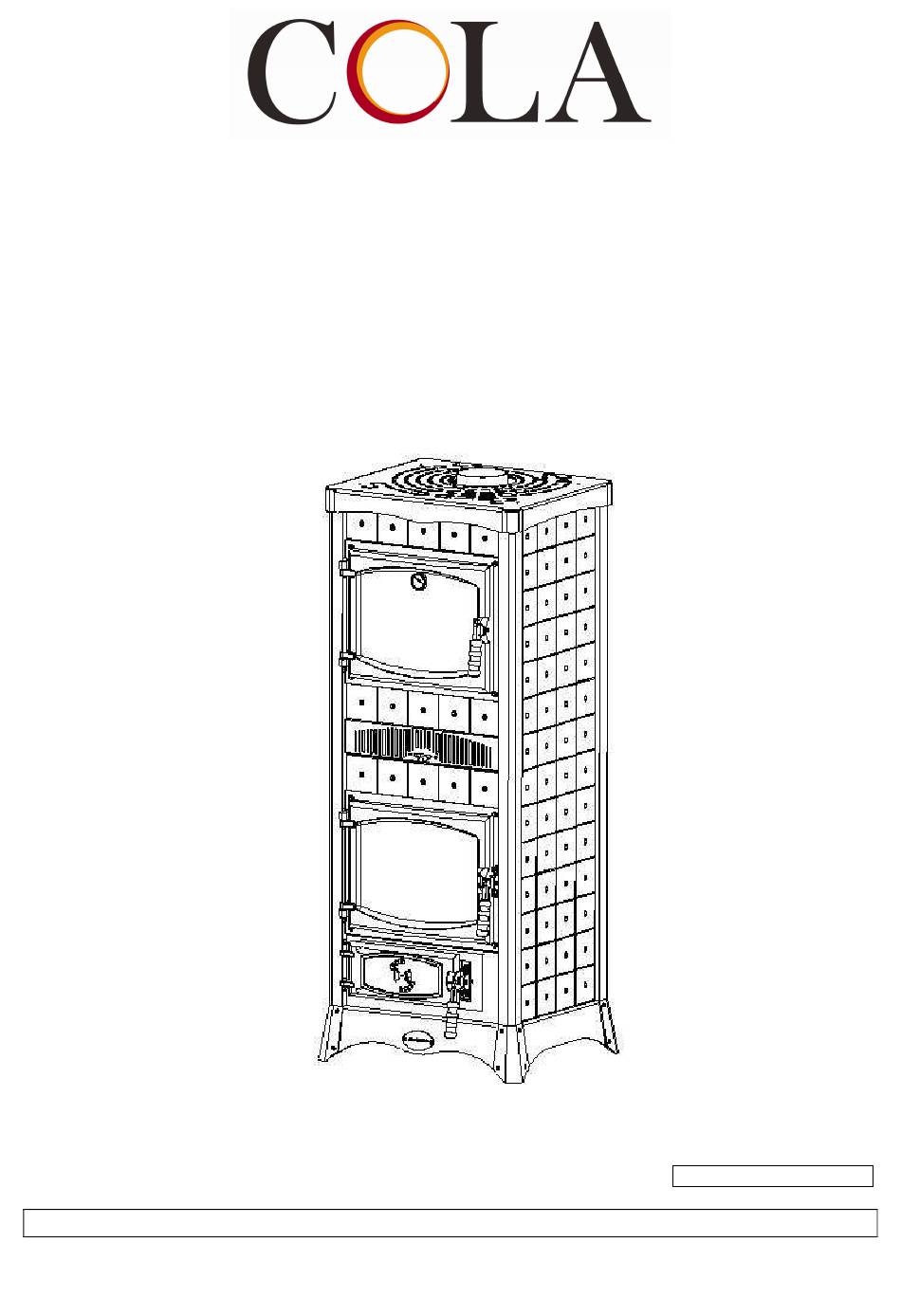

- Page 1 Installation, use and maintenance manual MARY model wood-burning stove with oven 48.41.12.020.GB -07/09 Read the instructions carefully before installation and startup...
-
Page 2: General Information
4.5 Cladding maintenance 5 – TROUBLESHOOTING 5.1 The stove does not work 5.2 Difficult lighting 5.3 Smoke leaks 5.4 The glass gets dirty quickly 5.5 The oven does not heat 6– ENCLOSURES 6.1 Warranty certificate 6.2 "CE" marking information Mary... -
Page 3: Safety Rules
The oven/food-warmer must only be used for its intended purpose, i.e. for heating and/or cooking food; any other use is deemed improper and hazardous. Cola s.r.l. declines any liability for problems, breakage or accidents caused by failure to follow or apply the instructions contained in this manual. -
Page 4: Technical Description
1.3 Technical description The MARY wood-burning stove is designed for natural convection heating of homes and for cooking food in the oven. The stove has been tested with wood fuel and meets the requirements of Standard EN 13240. Structure steel and cast iron... - Page 5 - model; - serial number; - type of fuel; - heat output; - hourly consumption; - flue draught; - max. flue gas temperature; - thermal efficiency; - flue pipe size; - stove external dimensions; - minimum safety distance; - weight. Mary...
-
Page 6: Transport And Installation
2.3 Connection to the flue The MARY stove must be connected to the flue with connection supports located at the top of the stove body and by means of flue pipes readily available on the market. Connection to the chimney must be made using strong and stable pipes, with recommended minimum thickness of 1.2-2 mm. - Page 7 If the flue is not perpendicular to the Fig. 3 Stove-chimney connection chimney it is advisable to make the connection with special steel fittings that allow a maximum slope of 45° . Mary...
- Page 8 With partial feed operation, a patina may form on the glass due to the low temperature in the fire zone. In any case, a continuous fire with low output is not advisable. Mary...
- Page 9 4.1 Removing the ash The MARY wood-burning stove has a removable grate which should be cleared of ash, using the poker supplied, every time before loading fuel. Make sure to periodically empty the ash pan, since the accumulation of ash under the grate hinders the flow of combustion air.
-
Page 10: Troubleshooting
4.5 Cladding maintenance Clean the cladding only when the stove is cold COLA ceramics are handicraft production and therefore may have minor surface imperfections such as tiny spots or slight colour differences. It is advisable to use a soft dry cloth to clean the ceramic surfaces; the use of detergents could highlight any imperfections. -
Page 11: "Ce" Marking Information
"CE" MARKING INFORMATION Cola EN 13240 Solid fuel-burning domestic appliance Solid fuel-burning domestic appliance Ref. MARY Distance from flammable materials 200 mm min Distance from flammable materials CO emission at 13% O2 in fumes 0,09 % CO emission at 13% O2 in fumes Max.
