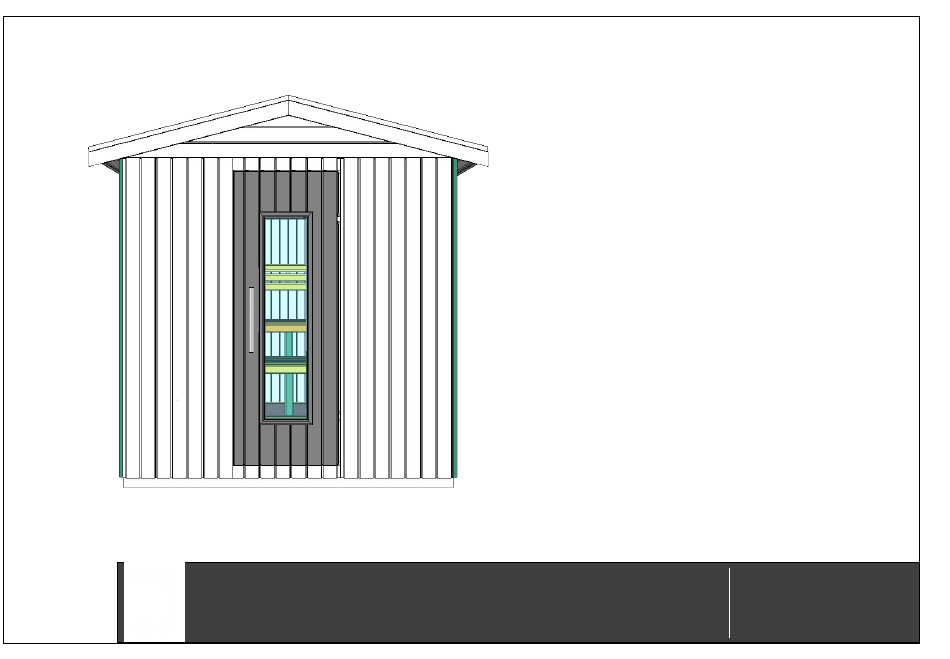

- Page 1 Outdoor Sauna Range Generic Assembly Manual To be read with: • Part Document • Part Schedule • Heater Manual All dimensions in millimeters Oceanic Saunas Ltd Street Name, Suite Number City, State Zip Code 123.456.7890 you@email.com Outdoor Sauna Assembly Manual...
-
Page 2: Pre-Installation Checklist
Part Document and Schedule All Oceanic saunas are supplied with a schedule of parts and a set of drawings specific to your sauna. The part document includes the layout of the panels, drawings for benches etc. If you are unable to find either the part document, schedule or are unsure about any of the steps included in this manual or if you have any comments or suggestions please contact our sales team or technical department on 01902 450 550, sales@oceanic-saunas.co.uk / technical@oceanic-saunas.co.uk... -
Page 3: Base Frame
Fix along the outer edge of the ply sheet using 50mm screws (Fig. 3) 70mm screws Fig 2. Fix Ply Sheets Fig 3. Base Rails 50mm Screw 50mm Screw Ply sheet Base Rail Base Assembly Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual... - Page 4 This panel is not required for saunas where the door is located on the right hand end of a wall. Fig. 2c. Removable Cladding Removable Piece of Cladding Fig 2d. Type III Panel Panel Type II Wall Panel Types Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 5 Fig 3a Full Glass Panel Fig 3b Full Glass Panel Fig 3c Half Glass Panel Fig 3d Half Glass Panel Exterior Interior Exterior Interior Panel Type I Panel Type II Panel Type III Glass Panels Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 6 Fig 4a. Fix Type I and II panels to form a corner Note orientation Panel Type I Panel Type II Panel Type I Panel Type II Corner Piece 80mm Screws Wall Panel Assembly 1 Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 7 This can be fixed once the door is fitted. Type I Type I Fig 5a. Wall Panels Type I Type II Type II Type III Top Rail Type II Type I Type I Wall Panel Assembly 2 Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 8 Note the exterior vent should be lower than the interior. Low Vent (B) Fig6c. High Vent Interior Fig6b. High Vent Exterior Fig6f. Pin Vent Cover 40mm Hole Fig6f. Vent Complete Fig6e. Low Vent Interior Fig6d. Low Vent Exterior Vents Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
-
Page 9: Wiring Example
High Backrest with LED Wiring Panel 3 Wall mounted heater Low Backrest with LED See ‘Install Backrest’ Example hole for Wiring Panel 1 for further details 339 mm heater cable inside Keypad Panel Wiring Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual... - Page 10 Fit the roller catch on the adjacent wall panel in line with the tab using the 30mm screws provided. Fig 8c Side Frame Fig 8d Replace Hinge Screws Fig 8b Top Rail Fig 8e Door Catch 50mm 50mm Roller catch Door Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
-
Page 11: Ceiling Panels
See ‘Backrest installation’ for the backrest LED lighting. Wire up the ceiling lights if you have them. Fig 9b. Cladding above and below door Fig 9c. Gable Frames Short lengths of cladding Fig 9d. Gable Frames Brackets Bracket Ceiling Panels Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual... - Page 12 Fig 10d. Roofing Paper Sheet Layout Fig 10e. Roof Paper Fig 10b. Roof Ply Sheet C Sheet B Sheet A Fig 10f. Side Facia Fig 10c. Soffit Framing Side Facia Soffit Board 75mm 32mm framing Roof Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 13 For the top/centre of the cabin start at the front and fit the sheets perpendicular across the eaves ensuring there is an overlap of at least 50mm with the shingles beneath. Fig 11c. Trim edges Fig 11b. Shingle placement Fig 11d. Centre Pieces Singles Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 14 Locate the 21 x 17mm lengths of exterior cladding with a mitred end to be used as the front and rear facia. Pin into place along the front and rear of eaves. Facia Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 15 Large Bracket Scrap timber Square corner 20mm Fig 13c. Add frame and cross members Fig 13d. Fix Cross Members Spacer 20mm screws Fig 13e. Add frame and cross members Small L Bracket Bench Assembly Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 16 If your parts list shows you have a central bench support , add this now as shown. Use 6x 40mm Screws. Bench Support Fig 14a. Corner L Bench Support Frame Double end frame Fig 14c. Bench Support Fig 14b. Corner Bench Slats Lower Bench Support Bench Assembly 2 Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 17 Pin the 19 x 19mm corner mould vertically in the corners. Measure to allow for the bench rails. Fig15a. Bench Rails High Bench Rail Low Bench Rail Corner Mould Skirt Rail Supports Bench Rails Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 18 For corner ‘L’ Benches fix through the side of the perpendicular bench using 2No 50mm screws and 30mm washers. Fig 16c Add Benches Fig 16d Bench Fixings Fig 16e Corner Bench Fixing Install Benches Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 19 LED tape. Pin Locations LED wiring terminal Top Slat Rail 32 x 9mm with Routered Channel 15mm screw 45mm screw 30mm screw 12mm Hole for Cable Keyhole Bracket 19 x 19mm Spacers Backrest Assembly Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
- Page 20 Sand away any pencil markings. viii. Fit the backrest onto the wall. Adjacent 12mm hole Panel left Centre of conduit Adjacent panel right 299 mm 339 mm 35 mm Bottom of backrest Install Backrests Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
-
Page 21: Power Cable
Note that it is important that the top rail of the heater guard is at least 25mm below the rim of the heater so that it does not receive direct radiation from the rocks. 40mm 70mm 70mm Hole for cable Heater Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual... -
Page 22: Floor Mat
(or covering) rather than the floor mat. Measure and cut down the slats required before fixing together as described above. See Fig 20.3 Adjusted Floor Mat Floor Standing Heater Wall Mount Heter Floor Mat Oceanic Saunas Ltd Outdoor Sauna Asssembley Manual...
