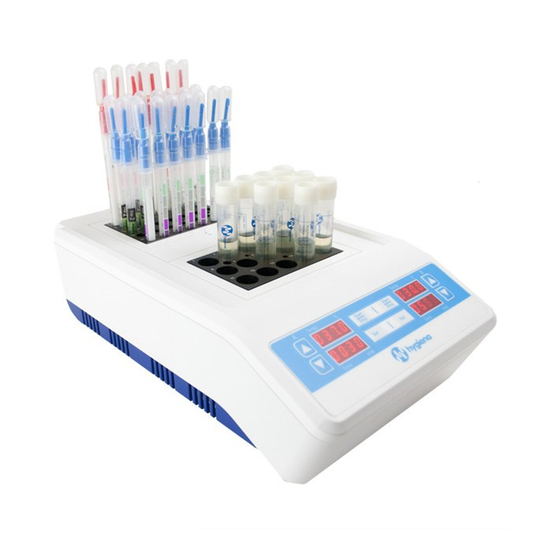

- Page 1 Operation Manual Dual Temperature Digital Dry Block Incubator Catalog No. INCUBATOR2 Rev C. April 2016 - 1 -...
- Page 2 Thank you for your purchase. This manual contains operation information for the Dual Temperature Digital Dry Block Incubator (catalog no. INCUBATOR2). Opening Check Please check the instrument and packing list when you first open the instrument packing case. If you find there is something wrong or missing with the instrument, contact Hygiena at www.Hygiena.com.
- Page 3 If there is something wrong with the Instrument, contact Hygiena. A.C. power grounding should be reliable to safeguard against an electric shock. The 3-pin plug supplied with power cable is a safety device that should be matched with a suitable grounded socket.
- Page 4 Power the instrument off when not in use. For extended non-use, unplug the electric chord and cover the incubator with a cloth to shield from dust. In the case of the following scenarios, pull the connector plug from the jack at once and contact the vendor: ...
-
Page 5: Table Of Contents
Contents SECTION 1 INTRODUCTION ---------------------------------------------------------------------------------- 6 SECTION 2 SPECIFICATIONS -------------------------------------------------------------------------------- 7 NORMAL OPERATING CONDITION: ----------------------------------------------------------------- 7 BASIC PARAMETERS AND CHARACTERISTICS ------------------------------------------------ 7 OPTIONAL BLOCK -----------------------------------------------------------------------------------------8 SECTION 3 BASIC INSTRUCTIONS ------------------------------------------------------------------------ 9 STRUCTURE OVERVIEW -------------------------------------------------------------------------------- 9 KEYPADS ---------------------------------------------------------------------------------------------------- 10 DISPLAY ------------------------------------------------------------------------------------------------------ 10 SECTION 4 OPERATION GUIDE ---------------------------------------------------------------------------- 11 TEMPERATURE AND TIME SETTING --------------------------------------------------------------- 11 RUNNING AND STOPPING A PROGRAM --------------------------------------------------------- 12... -
Page 6: Section 1 Introduction
Operation manual for INCUBATOR2 Section 2 Specifications Section 1 Introduction The Dual Temperature Digital Dry Block Incubator Features: Digital temperature and time displayed in LED Interchangeable metal dry blocks Easy replacement, cleaning and disinfection of blocks Built-in overheating protection ... -
Page 7: Section 2 Specifications
Operation manual for INCUBATOR2 Section 2 Specifications Section 2 Specifications 1. Normal operating conditions: Ambient temperature：5C 35C Relative humidity：≤70% Power supply：AC100-120V～ 50-60Hz 2. Basic parameters and characteristics Basic parameters： Type INCUBATOR2 Parameter RT+5C 105C Temperature range Timing time Max. -
Page 8: Optional Block
Operation manual for INCUBATOR2 Section 2 Specifications 3. Optional products Item No. Type Capacity + Diameter Meas.(mm) AS90925000050 IB001 35*9.1mm 108X72X49 mm AS90925000060 IB002 15*17mm 108X72X49 mm External AS-01181-27 PT1000 sensor AS-01181-28 Lifter... -
Page 9: Section 3 Basic Instructions
Operation manual for INCUBATOR2 Section 3 Basic Instructions Section 3 Basic Instructions This section focuses on the introductions of the structure, keypads and key-functions of the instrument, as well as preparatory work before starting. 1. Incubator structure overview Zone A block... -
Page 10: Keypads
Operation manual for INCUBATOR2 Section 3 Basic Instructions 2. Keypads 3. Display Set key: Used in conjunction with the Down or Up keys to set the temperature and time. Down key: decreases number. Up key: increases number. Start Start/Stop key. -
Page 11: Section 4 Operation Guide
Operation manual for INCUBATOR2 Section 4 Operation Guide Section 4 Operation Guide 1. Temperature and Time Setting a) Press the On/Off button on the back of the instrument; the display flashes 3 times, then goes into the initial state with the sound of “beep”. -
Page 12: Running And Stopping A Program
Operation manual for INCUBATOR2 Section 4 Operation Guide Press “Set” again. Wait 6 seconds to confirm the input temperature and time. Now the temperature will automatically go up to the set temperature. 2. Running and Stopping a Program a) After the temperature and time are set, the instrument temperature will begin to rise up to the set temperature automatically. -
Page 13: Temperature Calibration
Operation manual for INCUBATOR2 Section 4 Operation Guide Temperature Calibration The temperature of the instrument has been calibrated before it was sent to you. If for some reason, there is a deviation between the actual temperature and the displayed temperature, the user can recalibrate the temperature to correct the error. - Page 14 Operation manual for INCUBATOR2 Section 4 Operation Guide Fig. A. Thermometer Olefin oil Cone-shaped well c) Press the “Set” and “” key at the same time for 3 seconds to enter temperature calibration mode. At this point, “ ” is displayed. The temperature displayed is the current temperature.
- Page 15 Operation manual for INCUBATOR2 Section 4 Operation Guide d) Next the instrument will heat to 100°C automatically. When the temperature reaches 100°C constant temperature, the decimal digit begins to flicker, waiting for the calibrated value of 100°C. Let sit for 20 minutes then read out the actual value from the thermometer and modify the display temperature by pressing the ...
- Page 16 Operation manual for INCUBATOR2 Section 4 Operation Guide b) Put the external sensor into a block well. See Figure B. Fig. B. c) To enter the temperature calibration interface, Press the “Set” key without releasing, then press “Start/Stop” key at the same time for 3 seconds.
- Page 17 Operation manual for INCUBATOR2 Section 4 Operation Guide waiting for the calibrated value of 40°C. Incubate for 20 min., then match the display temperature with the temperature displayed on the thermometer. Note: Please read the actual value after 20 minutes temperature to ensure calibration accuracy.
-
Page 18: Temperature Control By External Sensor
Operation manual for INCUBATOR2 Section 4 Operation Guide 4．Temperature control by external sensor a) Insert the external sensor into a fixed well. b) Press the “Start/Stop” key then simultaneously press the “” key and hold for 3 seconds. The external indicator light will go on to indicate that it has entered into the temperature control mode of external Sensor. - Page 19 Operation manual for INCUBATOR2 Section 4 Operation Guide Pull the wrench up and out while connected to the block. d) Unscrew the wrench from the block, and affix it to another block. Then put it onto the instrument. Remove the wrench from the block, then secure the block to the...
-
Page 20: Section 5 Failure Analysis And Troubleshooting
Sensor broken, or “HHHH” displayed, block temperature is alarming “beep” too high Sensor broken No heating Contact Hygiena Heating tube broken Keys don’t work Faulty key Contact Hygiena Questions? Visit www.Hygiena.com for more information. 1-888-HYGIENA (Americas) +44 (0) 1923 818821 (International) -
Page 21: Appendix：wiring Diagram
Appendix：Wiring Diagram （ ） for reference only Block2 HEAT PT100 FAN2 HEAT2 Switch Key and Display MAIN Power BOARD FAN1 HEAT1 HEAT PT100 Block1...
