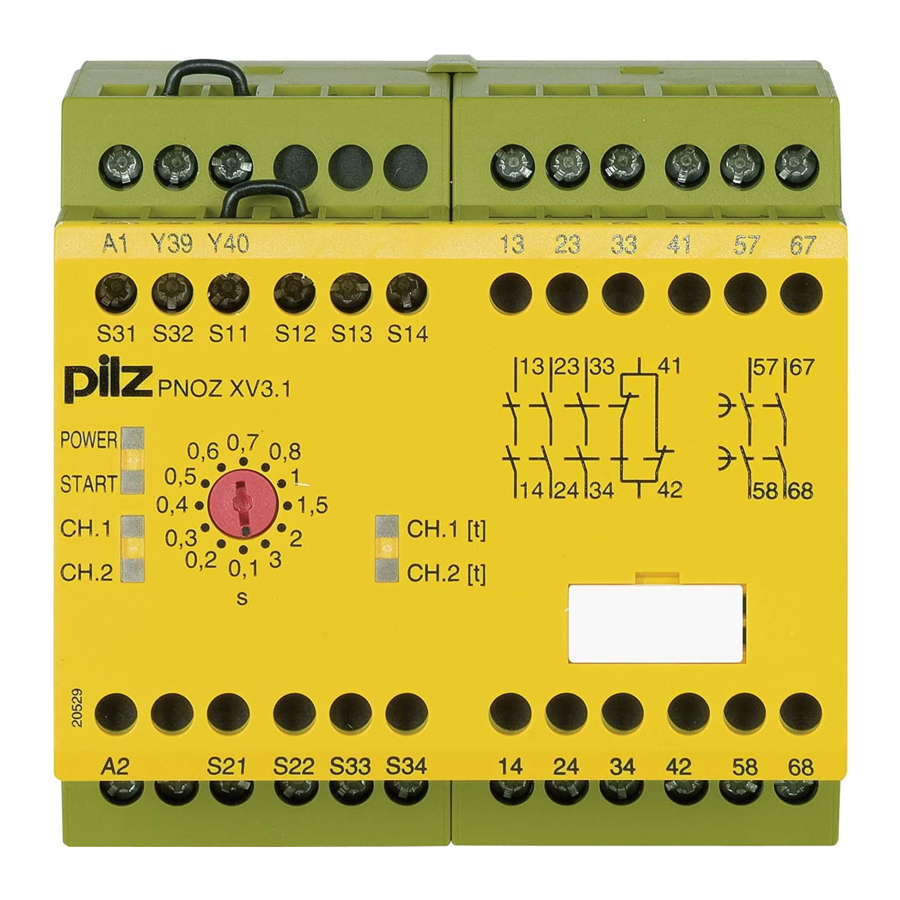

PNOZ XV3.1
}
Safety relays
Operating Manual-20515-EN-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNOZ XV3.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Pilz PNOZ XV3.1

Summary of Contents for Pilz PNOZ XV3.1

  • Page 1 PNOZ XV3.1 Safety relays Operating Manual-20515-EN-08...
  • Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.

  • Page 3: Table Of Contents

    Operation ..........................Status indicators ........................Faults – Interference ......................Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Supplementary data ......................Service life graph ........................Order reference ........................EC declaration of conformity ....................Operating Manual PNOZ XV3.1 20515-EN-08...

  • Page 4: Introduction

    PNOZ XV3.1 Introduction Validity of documentation This documentation is valid for the product PNOZ XV3.1. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.

  • Page 5: Safety

    This gives advice on applications and provides information on special fea- tures. Safety Intended use The safety relay PNOZ XV3.1 provides a safety-related interruption of a safety circuit. The safety relay meets the requirements of EN 60947-5-1 and EN 60204-1 and may be used in applications with: E-STOP pushbuttons...

  • Page 6: Use Of Qualified Personnel

    Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Operating Manual PNOZ XV3.1 20515-EN-08...

  • Page 7: Unit Features

    The circuit is redundant with built-in self-monitoring. The safety function remains effective in the case of a component failure. The correct opening and closing of the safety function relays is tested automatically in each on-off cycle. Operating Manual PNOZ XV3.1 20515-EN-08...

  • Page 8: Block Diagram/Terminal Configuration

    III), Protective separation (overvoltage category II) Function Description The safety relay PNOZ XV3.1 provides a safety-oriented interruption of a safety circuit. When supply voltage is supplied the "POWER" LED is lit. The unit is ready for operation when the reset circuit Y39-Y40 and the start circuit S13-S14 are closed.

  • Page 9: Operating Modes

    Monitored start: Unit is active once the input circuit is closed and once the start circuit is closed after the waiting period has elapsed (see Technical details [ 16]). Increase in the number of available contacts by connecting contact expandsion modules or external contactors/relays. Operating Manual PNOZ XV3.1 20515-EN-08...

  • Page 10: Timing Diagram

    Use the notch on the rear of the unit to attach it to a DIN rail (35 mm). When installed vertically: Secure the unit by using a fixing element (e.g. retaining bracket or end angle). Operating Manual PNOZ XV3.1 | 10 20515-EN-08...

  • Page 11: Wiring

    Important for detection of shorts across contacts: As this function for detecting shorts across contacts is not failsafe, it is tested by Pilz during the final control check. If there is a danger of exceeding the cable length, we recommend the following test once the unit is installed: 1.

  • Page 12: Preparing For Operation

    Safety gate with detection of shorts across contacts NOTICE With single-channel wiring the safety level of your machine/plant may be lower than the safety level of the unit (see Safety characteristic data). Operating Manual PNOZ XV3.1 | 12 20515-EN-08...
  • Page 13 Link or N/C contact Feedback loop Automatic start Monitored start Contacts from external contactors 13 (23, 33) 14 (24, 34) Legend S1/S2: E-STOP/safety gate switch S3: Reset button : Switch operated : Gate open Operating Manual PNOZ XV3.1 | 13 20515-EN-08...

  • Page 14: Operation

    Start circuit is closed. CH.1 Safety contacts of channel 1 are closed. CH.2 Safety contacts of channel 2 are closed. CH.1 [t] Channel 3 safety contacts are closed. CH.2 [t] Channel 4 safety contacts are closed. Operating Manual PNOZ XV3.1 | 14 20515-EN-08...

  • Page 15: Faults - Interference

    LED "POWER" does not light: Short circuit or no supply voltage. In the case of an error, the delay-on de-energisation contacts may open before the delay time has elapsed. Dimensions in mm 75 (2.95") 90 (3.54") 87 (3.42") Operating Manual PNOZ XV3.1 | 15 20515-EN-08...

  • Page 16: Technical Details

    10 Ohm Relay outputs 774530 774532 774534 Number of output con- tacts Safety contacts (N/O), instantaneous Safety contacts (N/O), delayed Auxiliary contacts (N/C) 1 Max. short circuit current 1 kA 1 kA 1 kA Operating Manual PNOZ XV3.1 | 16 20515-EN-08...
  • Page 17 EN 60947-5-1 EN 60947-5-1 EN 60947-5-1 Utilisation category of safety contacts AC15 at 230 V 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V 24 V Max. current Operating Manual PNOZ XV3.1 | 17 20515-EN-08...
  • Page 18 240 A²s 240 A²s 240 A²s Blow-out fuse, quick 10 A 10 A 10 A Blow-out fuse, slow Blow-out fuse, gG 10 A 10 A 10 A Circuit breaker 24 V AC/DC, characteristic Operating Manual PNOZ XV3.1 | 18 20515-EN-08...
  • Page 19 With power failure max. 150 ms 150 ms 150 ms Recovery time at max. switching frequency 1/s After E-STOP 50 ms +tv 50 ms +tv 50 ms +tv After power failure 200 ms 200 ms 200 ms Operating Manual PNOZ XV3.1 | 19 20515-EN-08...
  • Page 20 Protection type Housing IP40 IP40 IP40 Terminals IP20 IP20 IP20 Mounting area (e.g. control cabinet) IP54 IP54 IP54 Mechanical data 774530 774532 774534 Mounting position Mechanical life 10,000,000 cycles 10,000,000 cycles 10,000,000 cycles Operating Manual PNOZ XV3.1 | 20 20515-EN-08...
  • Page 21 -15 %/+10 % Output of external power supply (AC) – 8,5 VA Output of external power supply (DC) 4,5 W Frequency range AC – 50 - 60 Hz Residual ripple DC 160 % 160 % Operating Manual PNOZ XV3.1 | 21 20515-EN-08...
  • Page 22 Min. current 0,01 A 0,01 A Max. current Max. power 2000 VA 2000 VA DC1 at 24 V 24 V Min. current 0,01 A 0,01 A Max. current Max. power 200 W 200 W Operating Manual PNOZ XV3.1 | 22 20515-EN-08...
  • Page 23 DC13 (6 cycles/min) at 24 V 24 V Max. current Utilisation category of auxiliary con- tacts AC15 at 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V Max. current Operating Manual PNOZ XV3.1 | 23 20515-EN-08...
  • Page 24 Conv. therm. current with 2 con- tacts – 7,8 A Conv. therm. current with 3 con- tacts – 6,5 A Conv. therm. current with 4 con- tacts – 5,5 A Conv. therm. current with 5 con- tacts – Operating Manual PNOZ XV3.1 | 24 20515-EN-08...
  • Page 25 -15 %/+15 % +50 ms -15 %/+15 % +50 ms Repetition accuracy Waiting period with a monitored start 300 ms 300 ms Min. start pulse duration with a monitored start 30 ms 30 ms Operating Manual PNOZ XV3.1 | 25 20515-EN-08...
  • Page 26 PPO UL 94 V0 PPO UL 94 V0 Front ABS UL 94 V0 ABS UL 94 V0 PPO UL 94 V0 PPO UL 94 V0 Connection type Screw terminal Screw terminal Mounting type Fixed Fixed Operating Manual PNOZ XV3.1 | 26 20515-EN-08...
  • Page 27 8 mm Dimensions Height 87 mm 87 mm Width 90 mm 90 mm Depth 121 mm 121 mm Weight 500 g 520 g Where standards are undated, the 2020-07 latest editions shall apply. Operating Manual PNOZ XV3.1 | 27 20515-EN-08...
  • Page 28 Number of output contacts Safety contacts (N/O), instant- aneous Safety contacts (N/O), delayed Auxiliary contacts (N/C) Max. short circuit current IK 1 kA 1 kA Utilisation category In accordance with the standard EN 60947-4-1 EN 60947-4-1 Operating Manual PNOZ XV3.1 | 28 20515-EN-08...
  • Page 29 DC13 (6 cycles/min) at 24 V 24 V Max. current Utilisation category of safety con- tacts delayed AC15 at 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V Max. current Operating Manual PNOZ XV3.1 | 29 20515-EN-08...
  • Page 30 10 A 10 A Blow-out fuse, slow Blow-out fuse, gG 10 A 10 A Circuit breaker 24 V AC/DC, characteristic B/C Contact material AgSnO2 + 0,2 µm Au AgSnO2 + 0,2 µm Au Operating Manual PNOZ XV3.1 | 30 20515-EN-08...
  • Page 31 With power failure max. UB 24 V 170 ms 170 ms Recovery time at max. switching frequency 1/s After E-STOP 50 ms +tv 50 ms +tv After power failure on wide- range power supply 1450 ms 1450 ms Operating Manual PNOZ XV3.1 | 31 20515-EN-08...
  • Page 32 Material Bottom PPO UL 94 V0 PPO UL 94 V0 Front ABS UL 94 V0 ABS UL 94 V0 PPO UL 94 V0 PPO UL 94 V0 Connection type Screw terminal Screw terminal Operating Manual PNOZ XV3.1 | 32 20515-EN-08...
  • Page 33 8 mm Dimensions Height 87 mm 87 mm Width 90 mm 90 mm Depth 121 mm 121 mm Weight 520 g 520 g Where standards are undated, the 2020-07 latest editions shall apply. Operating Manual PNOZ XV3.1 | 33 20515-EN-08...

  • Page 34: Safety Characteristic Data

    A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PNOZ XV3.1 | 34 20515-EN-08...

  • Page 35: Supplementary Data

    To increase the service life, sufficient spark suppression must be provided on all output contacts. With capacitive loads, any power surges that occur must be noted. With DC con- tactors, use flywheel diodes for spark suppression. Operating Manual PNOZ XV3.1 | 35 20515-EN-08...

  • Page 36: Order Reference

    European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PNOZ XV3.1...
  • Page 37 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
