exacqVision Z Series Quick Start

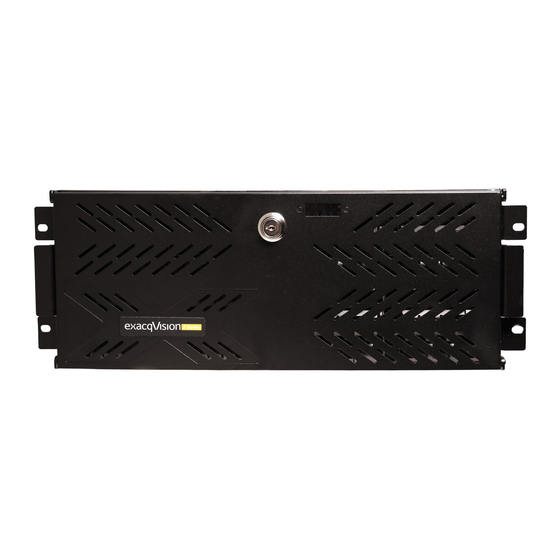

Z Series 4U NVR Quick Start
3

Establish Initial Communications

After installing the server, complete the following steps:
1. Using a directly connected keyboard, monitor, and mouse, configure the server's networking connections:
a. After the eV Client software automatically starts on the server, expand the server device in the tree. Select System
Setup and then the Network tab.
b. For servers with multiple interfaces, select the appropriate NIC port from the drop-down menu at the top of page:
i. If the server is installed on a network using static IP addressing (recommended), select Static, enter the
appropriate settings, and click Apply.
ii. If the server is installed on a network using DHCP (not recommended), select Dynamic and click Apply. After a
brief delay, all four parameter boxes should auto-fill with valid network settings. If not, contact your network
administrator for resolution.
c. Repeat this step for any additional network ports.
2. If the server will be configured through a remote eV client instead of the server, install the client software:
a. Download the latest eV Client software from the Exacq website at
http://downloads.exacq.com/downloads/exacqVisionClient.exe
b. Install the client software on a system administrator computer.
c. Confirm connectivity with the server using the ping command and server IP address. If the client PC cannot
communicate with the server, contact the network administrator.
3. If a remote eV client is being used, add the server into the eV Client configuration:
a. On the system administrator PC, start the eV Client software.
b. Select the Config (Setup) page button.
c. In the system tree, select Add System.
d. Click New and enter the username admin, password admin256, and IP address (static) or hostname (fixed)
configured in previous steps.
e. Click Apply.
i. If the new server appears in the system list table with a status of Connected, the initial server configuration is
complete.
ii. If the server does NOT connect, but server connectivity was confirmed in previous steps, confirm the PC anti-
virus software is not blocking communications with the server IP addresses and ports.
4. Change the default operating system and exacqVision admin and user account passwords:

See www.exacq.com/kb for instructions on changing the operating system password on exacqVision servers.

See Chapter 4 of the exacqVision user manual for instructions on changing exacqVision admin and user passwords.
5. Proceed to the software configuration steps found in the software user manual. The manual can be downloaded from the
Exacq website at http://www.exacq.com/support/specsheets.html.
©2014 ExacqTechnologies
1

Connections

Item #
500-00047
#
www.exacq.com
Z Series 4U NVR Quick Start
MAIN BACK PANEL CONNECTIONS
(Hybrid System shown; see table to identify connectors not included on IP Systems)
8
7a
1a 1b 2 3 4a 4b 4c
Description Notes
1 Power 100-240VAC 50/60Hz (connect 1a and 1b to separate power circuits)
2 PS/2 connectors (two ports) PS/2 keyboard and mouse
3 USB 2.0 (two ports) USB keyboard, mouse, memory device, or DVD burner
DisplayPort (4a), HDMI (4b), DVI-I (4c)
4 Video out (three ports)
A maximum of two video outputs should be used simultaneously
5 USB 2.0/3.0 (four ports) USB keyboard, mouse, memory device, or DVD burner; USB 2.0 (5a) and USB 3.0 (5b)
6 Audio in/out Line in (blue); line out (green); microphone (pink)
7 10/100/1000 Ethernet (two ports) Dual on-board NICs (7a and 7b)
8 Video In Hybrid Systems only; inputs and looping outputs; or inputs 1-64
9 Video Out (up to 4) Hybrid Systems only
10 Auxiliary Connections Hybrid Systems only; see detail on next page
9
7b
5a 5b 6
www.exacq.com
10
