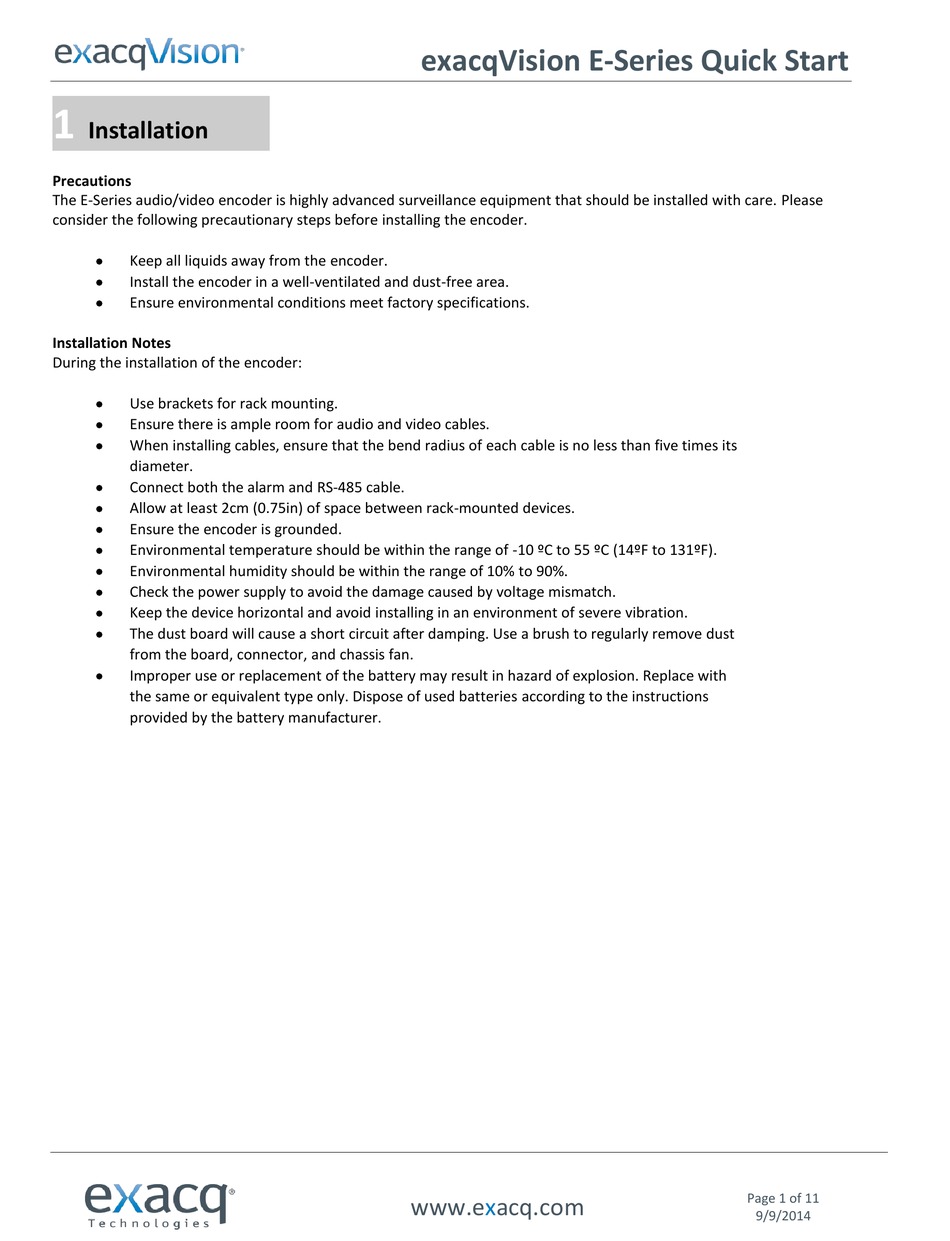

exacqVision E Series Quick Start Manual

1
Installation
Precautions

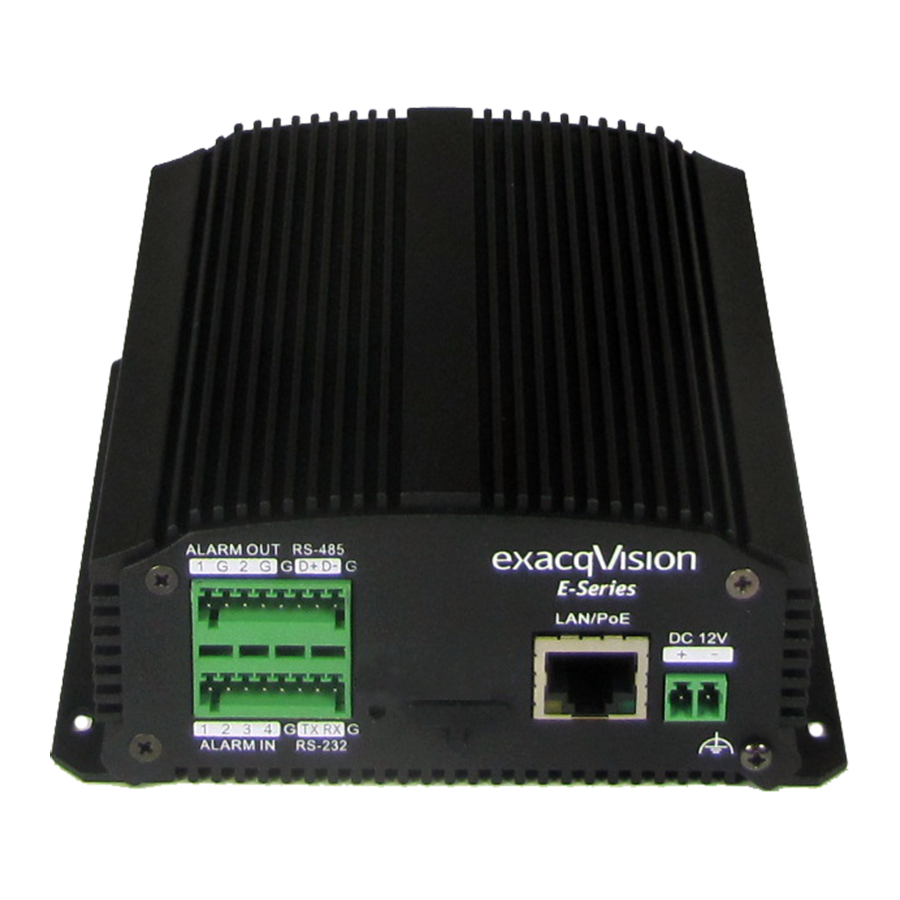

The E-Series audio/video encoder is highly advanced surveillance equipment that should be installed with care. Please
consider the following precautionary steps before installing the encoder.

Keep all liquids away from the encoder.

Install the encoder in a well-ventilated and dust-free area.

Ensure environmental conditions meet factory specifications.
Installation Notes
During the installation of the encoder:

Use brackets for rack mounting.

Ensure there is ample room for audio and video cables.

When installing cables, ensure that the bend radius of each cable is no less than five times its
diameter.

Connect both the alarm and RS-485 cable.

Allow at least 2cm (0.75in) of space between rack-mounted devices.

Ensure the encoder is grounded.

Environmental temperature should be within the range of -10 ºC to 55 ºC (14ºF to 131ºF).

Environmental humidity should be within the range of 10% to 90%.

Check the power supply to avoid the damage caused by voltage mismatch.

Keep the device horizontal and avoid installing in an environment of severe vibration.

The dust board will cause a short circuit after damping. Use a brush to regularly remove dust
from the board, connector, and chassis fan.

Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
