Summary of Contents for AOC I1601C

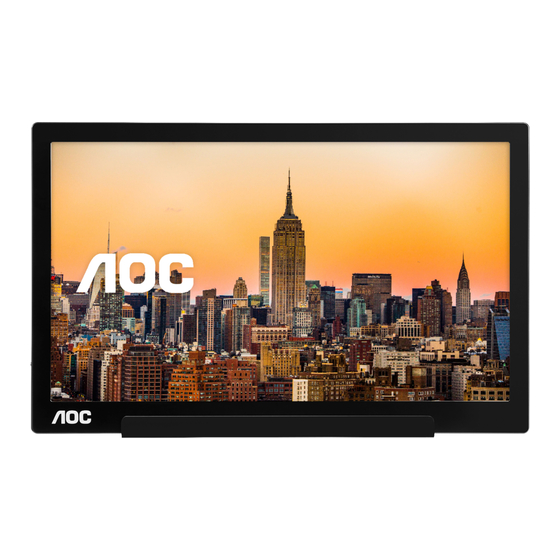

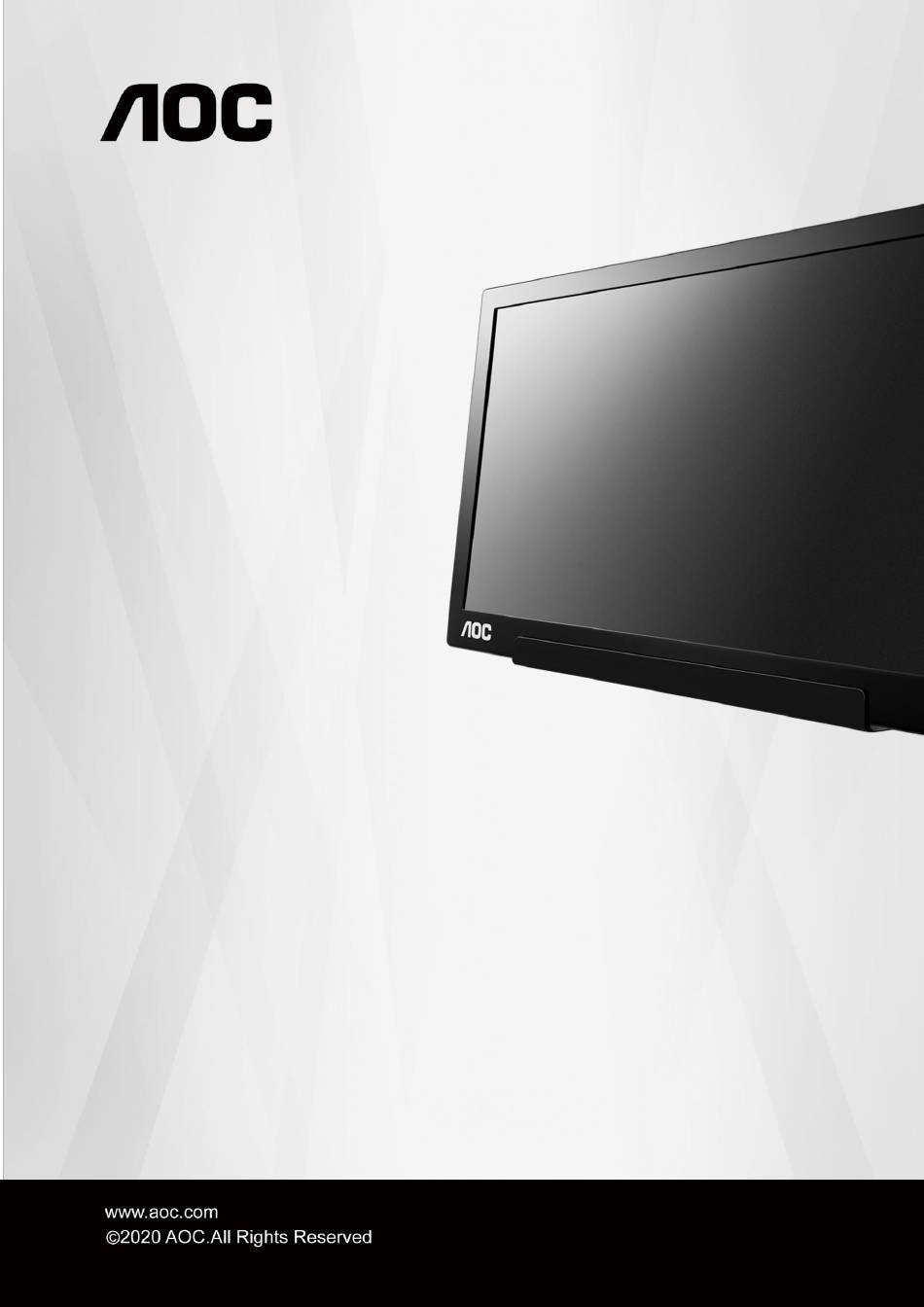

- Page 1 LCD Monitor User Manual I1601C LED backlight...
-
Page 2: Table Of Contents
Safety ..................................3 National Conventions ............................3 Installation ................................4 Cleaning................................5 Other .................................. 6 Setup ..................................7 Contents in Box ..............................7 Adjusting Viewing Angle ............................. 8 Connecting the Monitor ............................9 Adjusting ................................. 10 Hotkeys ................................10 OSD Setting ..............................11 Driver .................................. -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 5: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 6: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 7: Setup
Setup Contents in Box Monitor CD Manual Smart Cover USB Type-c cable... -
Page 8: Adjusting Viewing Angle
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen. AOC I1601C monitor supports an auto-pivot function to keep the display upright as the monitor is rotated between portrait and landscape position. -
Page 9: Connecting The Monitor
Connecting the Monitor Power Button USB Type-C To protect equipment, always turn off the PC and LCD monitor before connecting. Connect one end of the USB cable to the USB Monitor and the other end of USB cable to the computer. Your computer should detect the USB Monitor automatically. -
Page 10: Adjusting
Adjusting Hotkeys Power /Menu/Increase Power/Menu/Increase When Power off, press button to turn on the monitor. When Power on, press button to display OSD or navigate towards the right direction. When Power on, press button continuously about 3 seconds to turn off the monitor. -
Page 11: Osd Setting
OSD Setting Basic and simple instruction on the control keys. 1).Press the bottom key to activate the OSD window. 2). You can now select any one of the functions by quickly repeat-pressing the bottom key . The blue box will navigate towards the right as you press the key. -
Page 12: Driver
Driver i-Menu Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. -
Page 13: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 14: Screen
Screen+ Welcome to “Screen+” software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding panel when you want to access it. It supports multiple monitor display to make your task easier. -
Page 15: Troubleshoot
Troubleshoot This section provides tips for correcting problems, should any occur. It also describes how to contact AOC should you encounter problems that you cannot resolve. Before you call AOC service center, please read the troubleshooting advice in this manual and in your computer User's Manual. You may also want to consult with your system administrator or company technical support staff. -
Page 16: Specification
Non-Operating 5% to 93% (non-condensing) Operating 0~ 5000m(0~ 16404 ft) Altitude: Non-Operating 0~ 12192m (0~ 40000 ft ) Windows 7 Windows 8 Support OS Windows 10 MacBook IOS at least 10.12.1 or more PS: I1601C only as a display device. - Page 17 Compatible with all DP Alt mode PC or Laptop: Recommend list is as the below. Brand Name Model Name Acer SF713-51-M707 Acer Chromebook 14 (CP5-471-312N) Apple New Macbook Pro 15-inch (MLH32TAA) Apple New MacBook Pro 13-inch (MLL42J/A) Apple Macbook MF855TA/A Apple MacBook 12-inch with Retina (MK4M2LL/A) ASUS...
-
Page 18: Preset Display Modes
Preset Display Modes Standard Resolution H. Frequency (kHz) V. Frequency (Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029... -
Page 19: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
