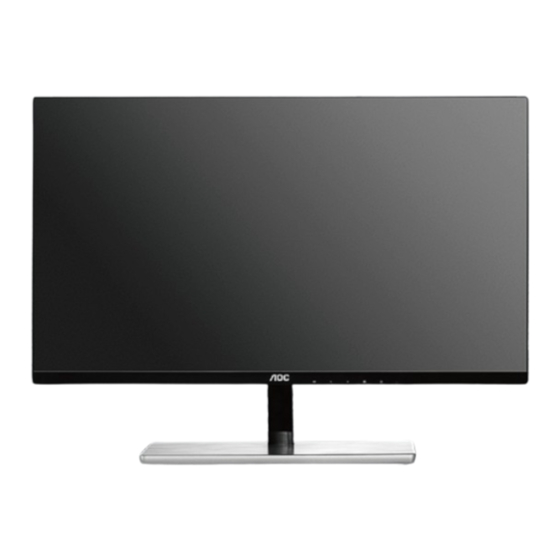

- Page 1 LCD Monitor User Manual I2579V / I2579VM LED Backlight www.aoc.com ©2015 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
................................53 e-Saver ................................54 Screen+ ................................55 Troubleshoot ................................56 Specification ................................58 (I2579V) General Specification ........................58 Preset Display Modes (I2579V) ........................59 (I2579VM) General Specification ........................60 ... - Page 3 Regulation ................................65 FCC Notice ..............................65 WEEE Declaration ............................66 WEEE Declaration for India ..........................66 RoHS Declaration for India ..........................66 EPA Energy Star .............................. 67 Service ..................................68 Warranty Statement for Europe ........................68 Warranty Statement for Middle East and Africa (MEA) ..................70 Warranty Statement for North &...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
Setup Contents in Box Monitor CD Manual Base Power Cable Analog Cable DVI Cable Not all signal cables (Analog,DVI,HDMI,MHL ) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 10: Setup Stand &Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 11: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle as below. -
Page 12: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: I2579V I2579VM DC port D-SUB HDMI-2/MHL HDMI-1/MHL Earphone To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the DC port on the back of the monitor. -
Page 13: Adjusting
Adjusting Setting Optimal Resolution Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization. - Page 14 Click DISPLAY. SLIDE-BAR Set the resolution to Optimal preset resolution...
-
Page 15: Windows 7
Windows 7 For Windows 7: Click START. Click CONTROL PANEL. 3. Click Appearance. Click DISPLAY. - Page 16 5. Set the resolution to Optimal preset resolution SLIDE-BAR...
-
Page 17: Windows Vista
Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization... - Page 18 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...
-
Page 19: Windows Xp
Window ws XP For Wind dows XP: 1 Click ST TART. 2 Click SE ETTINGS. 3 Click CO ONTROL PAN NEL. 4 Click Ap ppearance an nd Themes. click DISPLAY 5 Double... -
Page 20: Windows Me/2000
6 Click SE ETTINGS. resolution SL LIDE-BAR to O 7 Set the Optimal preset t resolution Window ws ME/200 For Wind dows ME/2000 1 Click ST TART. 2 Click SE ETTINGS. 3 Click CO ONTROL PAN NEL. click DISPLAY 4 Double 5 Click SE ETTINGS. -
Page 21: Hotkeys
Hotkeys I2579V I2579VM Source/ Auto/ Exit Source/ Auto/ Exit Clear Vision /< Clear Vision /< Widescreen / 4:3 switch Widescreen / 4:3 switch /> /Volume / > Menu/Enter Menu/Enter Power Power Power Press the Power button to turn on/off the monitor. -
Page 22: Clear Vision
Clear Vision When there is no OSD, Press the “<” button to activate Clear Vision. Use the “<” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “<” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”... -
Page 23: Using "Mhl" (Mobile High-Defintion Link)
Using “MHL(Mobile High-Definition Link)” “MHL” (Mobile High-Definition Link) This feature allows you to enjoy videos and photos(imported from a connected mobile device that supports MHL) on the screen of the product. ● To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer’s website. -
Page 24: Osd Setting
OSD Setting Basic and simple instruction on the control keys. MENU-button to activate the OSD window. Press the Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press < or > to navigate through the sub-menu. Once the desired function is MENU-button to activate. -
Page 25: Luminance
Luminance 1 Press (Menu) to display menu. 2 Press < or > to select (Luminance), and press to enter. 3 Press < or > to select submenu, and press to enter. - Page 26 4 Press < or > to adjust. 5 Press to exit Brightness 0-100 Backlight Adjustment. Contrast 0-100 Contrast from Digital-register. Standard Standard Mode. Text Text Mode. Internet Internet Mode. Eco mode Game Game Mode. Movie Movie Mode. Sports Sports Mode. Gamma1 Adjust to Gamma 1.
-
Page 27: Image Setup
Image Setup 1 Press (Menu) to display menu. 2 Press < or > to select (Image Setup), and press to enter. 3 Press < or > to select submenu, and press to enter. - Page 28 4 Press < or > to adjust. 5 Press to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise. Sharpness 0-100 Adjust picture sharpness. H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture.
-
Page 29: Color Setup
Color Setup 1 Press (Menu) to display menu. 2 Press < or > to select (Color Setup), and press to enter. 3 Press < or > to select submenu, and press to enter. - Page 30 4 Press < or > to adjust. 5 Press to exit Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. Color setup. sRGB Recall SRGB Color Temperature from EEPROM. Red Gain from Digital-register.
-
Page 31: Picture Boost
Picture Boost 1 Press (Menu) to display menu. 2 Press < or > to select (Picture Boost), and press to enter. 3 Press < or > to select submenu, and press to enter. - Page 32 4 Press < or > to adjust. 5 Press to exit Bright Frame on or off Disable or Enable Bright Frame. Frame Size 14-100 Adjust Frame Size. Brightness 0-100 Adjust Frame Brightness. Contrast 0-100 Adjust Frame Contrast. H. position 0-100 Adjust Frame horizontal position.
-
Page 33: Osd Setup
OSD Setup 1 Press (Menu) to display menu. 2 Press < or > to select (OSD Setup), and press to enter. 3 Press < or > to select submenu, and press to enter. - Page 34 4 Press < or > to adjust. 5 Press to exit Language Select the OSD language. Timeout 5-120 Adjust the OSD Timeout. H. Position 0-100 Adjust the horizontal position of OSD. V. Position 0-100 Adjust the vertical position of OSD. Transparence 0-100 Adjust the transparence of OSD.
-
Page 35: Extra
Extra 1 Press (Menu) to display menu. 2 Press < or > to select (Extra), and press to enter. 3 Press < or > to select submenu, and press to enter. - Page 36 Auto / D-SUB / DVI Input Select (I2579V) Select input signal source. D-SUB / HDMI1/MHL1/ Input Select Auto / (I2579V ) HDMI2/MHL2 Auto Config yes or no Auto adjust the picture to default. Off timer 0-24hrs Select DC off time.
-
Page 37: Exit
Exit 1 Press (Menu) to display menu. 2 Press < or > to select (Exit), and press to enter. AUTO 3 Press to exit Exit Exit the main OSD. -
Page 38: Led Indicator
LED Indicator Status LED Color White Full Power Mode Orange Active-off Mode... -
Page 39: Driver
Driver Monitor Driver Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. - Page 40 Click on the “Display” icon. Click on the “Change display settings” button. “ Advanced Settings” button. Click the Click the “Monitor” tab and then click the “Properties” button...
- Page 41 Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. 11. Select "Let me pick from a list of device drivers on my computer".
- Page 42 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 14.
-
Page 43: Windows 7
Windows 7 Start Windows® 7 Click on the 'Start' button and then click on 'Control Panel'. Click on the 'Display' icon. - Page 44 Click on the “Change display settings” button. “ Advanced Settings” button. Click the Click the “Monitor” tab and then click the “Properties” button.
- Page 45 Click the “Driver” tab. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. Select "Let me pick from a list of device drivers on my computer".
- Page 46 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
-
Page 47: Windows Vista
Windows Vista Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization". Click "Personalization" and then "Display Settings". Click "Advanced Settings...". - Page 48 Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". Click "Update Driver..."...
-
Page 49: Windows Xp
Window ws XP Start Windows® X Click on the 'Start' button and th en click on 'Co ontrol Panel'. Selec ct and click on n the category y ‘Appearance and Themes’ Click on the 'Displa ay' Item. - Page 50 Selec ct the 'Settings s' tab then clic ck on the 'Adv anced' button Selec ct 'Monitor' tab If the 'Proper rties' button is inactive, it me eans your mon nitor is properl ly configured. Please stop in nstallation. If the 'Proper rties' button is s active, click o on 'Properties'...
- Page 51 Selec ct the 'Install f rom a list or s pecific locatio n [advanced]' radio button a and then click on the 'Next' button. Selec ct the 'Don't S earch. I will ch hoose the driv ver to install' ra adio button.
-
Page 52: Windows 2000
Windows 2000 Start Windows® 2000 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. If the 'Properties' button is active. -
Page 53: I-Menu
i-Men Welcome to “i-Menu” so oftware by AO OC. i-Menu ma akes it easy to o adjust your m monitor display y setting by us sing on screen me enus instead o of the OSD bu utton on the m monitor. -
Page 54: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 55: Screen
Screen+ Welcome to "Screen+" software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. -
Page 56: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press for auto adjust. - Page 57 Move electrical devices that may cause electrical interference as far away Picture Bounces, Flickers Or from the monitor as possible. Wave Pattern Appears In The Use the maximum refresh rate your monitor is capable of at the resolution Picture you are using. The Computer Power Switch should be in the ON position.
-
Page 58: Specification
Specification General Specification （I2579V） Model name I2579V Driving system TFT Color LCD Viewable Image Size 63.3cm diagonal Pixel pitch 0.288 mm x 0.28578 mm Panel Video R, G, B Analog lnterface &DVI lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Pixel Clock 148.5MHz... -
Page 59: Preset Display Modes (I2579V)
（I2579V） Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640×480@60Hz 31.469 59.940 640×480@67Hz 35.000 66.667 640×480@72Hz 37.861 72.809 640×480@75Hz 37.500 75.000 Dos-mode 720×400@70Hz 31.469 70.087 SVGA 800×600@56Hz 35.156 56.250 SVGA 800×600@60Hz 37.879 60.317 SVGA 800×600@72Hz 48.077 72.188 SVGA 800×600@75Hz 46.875... -
Page 60: General Specification (I2579Vm)
General Specification （I2579VM） Model name I2579VM Driving system TFT Color LCD Viewable Image Size 63.3cm diagonal Pixel pitch 0.288 mm x 0.28578 mm Panel Video R, G, B Analog lnterface &HDMI(MHL) lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Pixel Clock 165MHz Horizontal scan range... -
Page 61: Preset Display Modes (I2579Vm)
（I2579VM） Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640×480@60Hz 31.469 59.940 640×480@67Hz 35.000 66.667 640×480@72Hz 37.861 72.809 640×480@75Hz 37.500 75.000 Dos-mode 720×400@70Hz 31.469 70.087 SVGA 800×600@56Hz 35.156 56.250 SVGA 800×600@60Hz 37.879 60.317 SVGA 800×600@72Hz 48.077 72.188 SVGA 800×600@75Hz 46.875 75.000 832×624@75Hz... -
Page 62: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable 15-Pin Side of the 15-Pin Side of the Pin Number Pin Number Signal Cable Signal Cable Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal Cable 24-Pin Color Display Signal 24-Pin Color Display Signal... - Page 63 19 Pin Color Display Signal Cable Pin No. Signal Na Pin No. Signal Name Pin No. Signal Name TMDS Data a 2+ TMDS Data 0- DDC/CEC Gro ound TMDS Data a 2 Shield TMDS Clock + +5V Power a 2 - TMDS Data TMDS Clock S Shield...
-
Page 64: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 65: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 66: Weee Declaration
E Decla aration Disposal o of Waste Equ ipment by Use ers in Private Household in the European n Union. This symb bol on the pro duct or on its packaging ind dicates that thi is product mus st not be dispo osed of with y your other household... -
Page 67: Epa Energy Star
EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. (FOR EPA CERTIFIED MODELS) -
Page 68: Service
The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: •... - Page 69 If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
-
Page 70: Warranty Statement For Middle East And Africa (Mea)
During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,... - Page 71 • Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center • Improper environments like humidity, water damage and dusts • Damaged by violence, earthquakes and terrorist attacks • Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other...
-
Page 72: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 73 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
- Page 74 *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
