Summary of Contents for AOC I3284VWH

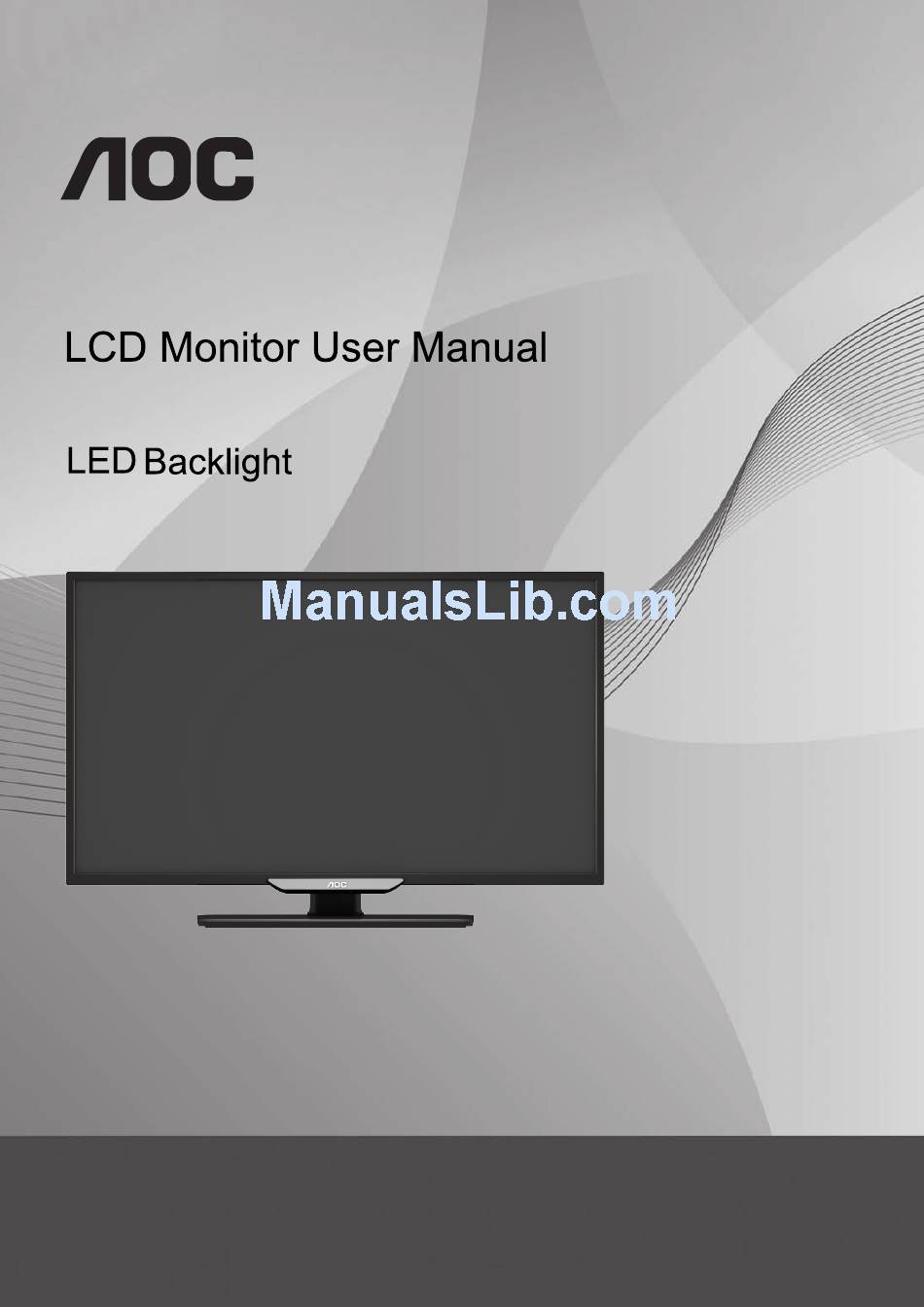

- Page 1 I3284VWH www.aoc.com ©2014 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation................................6 Cleaning ................................7 Other .................................. 8 Setup ..................................9 Contents in Box ............................... 9 Setup Stand & Base ............................10 Connecting the Monitor ............................ 11 Adjusting ................................. 12 Setting Optimal Resolution .......................... - Page 3 RoHS Declaration for India..........................53 EPA Energy Star .............................. 54 Service ..................................55 Warranty Statement for Europe........................55 Warranty Statement for Middle East and Africa (MEA) ...................57 AOC International (Europe) B.V........................59 Warranty Statement for North & South America (excluding Brazil) ............60 EASE PROGRAME ............................62...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Contents In Box
Not al l signal cables s (Analog, DV I, Audio and HDMI cables) w ill be provided d for all countries and region ns. Please check wit h the local dea aler or AOC b ranch office fo or confirmation... -
Page 10: Setup
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove: M6X12mm 100mm 100mm... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: Power HDMI Analog (DB-15 VGA cable) Audio Earphone To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 12: Adjusting
Adjusting Setting Optimal Resolution Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization. - Page 13 Click DISPLAY. Set the resolution to Optimal preset resolution SLIDE-BAR...
-
Page 14: Windows Vista
Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization... - Page 15 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...
-
Page 16: Windows Xp
Window ws XP For Wind dows XP: 1 Click ST TART. 2 Click SE ETTINGS. 3 Click CO ONTROL PAN NEL. 4 Click Ap ppearance an nd Themes. 5 Double click DISPLAY... -
Page 17: Windows Me/2000
6 Click SE ETTINGS. 7 Set the resolution SL LIDE-BAR to O Optimal preset t resolution Window ws ME/200 For Wind dows ME/2000 1 Click ST TART. 2 Click SE ETTINGS. 3 Click CO ONTROL PAN NEL. 4 Double click DISPLAY 5 Click SE ETTINGS. -
Page 18: Hotkeys
Hotkeys Sourc e/Auto/Exit Menu/Enter Volume Clear Vision Power Power Press the Power button to turn on/off the monitor. Volume When there is no OSD, press Volume adjust volume. Auto / Exit When there is no OSD, press Auto / Exit button continuously about 3 second to do auto configure. Source hot key When the OSD is closed, press Source button will be Source hot key function. - Page 19 Clear Vision When there is no OSD, Press the left button to activate Clear Vision. Use the left or right buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold left button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 20: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Image Setup Color Setup Picture Boost OSD Setup Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive Medium Press the MENU button to activate the OSD window. Press left button or right button to navigate through the functions. -
Page 21: Luminance
Luminance Luminance Image Setup Color Setup Picture Boost OSD Setup Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive Medium 1 Press (Menu) to display menu. 2 Press left button or right button to select (Luminance), and press to enter. -
Page 22: Image Setup
Image Setup Image Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Clock H. Position Phase V. Position Sharpness 1 Press (Menu) to display menu. 2 Press left button or right button to select (Image Setup), and press to enter. 3 Press left button or right button to select submenu, and press to enter. -
Page 23: Color Setup
Color Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Temp. Warm DCB Mode Green DCB Demo Blue 1 Press (Menu) to display menu. 2 Press left button or right button to select (Color Setup), and press to enter. -
Page 24: Picture Boost
Picture Boost Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position 1 Press (Menu) to display menu. 2 Press left button or right button to select (Picture Boost), and press to enter. -
Page 25: Osd Setup
OSD Setup OSD Setup Extra Exit Luminance Image Setup Color Setup Picture Boost Language English H. Position Transparence Timeout V. Position Break Reminder 1 Press (Menu) to display menu. 2 Press left button or right button to select (OSD Setup), and press to enter. -
Page 26: Extra
Extra Extra Exit Luminance Image Setup Color Setup Picture Boost OSD Setup Input Select Auto Image Ratio 4 : 3 Resolution : 1024(H)X768(V) Auto Config. DDC/CI H. Frequency : 60KHz Off Timer Reset V. Frequency : 60Hz 1 Press (Menu) to display menu. 2 Press left button or right button to select (Extra), and press to enter. -
Page 27: Exit
Exit Exit Luminance Image Setup Color Setup Picture Boost OSD Setup Extra 1 Press (Menu) to display menu. 2 Press left button or right button to select (Exit), and press to enter. 3 Press to exit Exit Exit the main OSD. LED Indicator Status LED Color... -
Page 28: Driver
Driver Monitor Driver Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. - Page 29 Click on the “Display” icon. Click on the “Change display settings” button. “ Click the Advanced Settings” button. button Click the “Monitor” tab and then click the “Properties”...
- Page 30 Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. 11. Select "Let me pick from a list of device drivers on my computer".
- Page 31 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 14.
-
Page 32: Windows 7
Windows 7 Start Windows® 7 Click on the 'Start' button and then click on 'Control Panel'. Click on the 'Display' icon. - Page 33 Click on the “Change display settings” button. “ Click the Advanced Settings” button. button. Click the “Monitor” tab and then click the “Properties”...
- Page 34 Click the “Driver” tab. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. Select "Let me pick from a list of device drivers on my computer".
- Page 35 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
-
Page 36: Windows Vista
Windows Vista Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization". Click "Personalization" and then "Display Settings". Click "Advanced Settings...". - Page 37 Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". Click "Update Driver..."...
-
Page 38: Windows Xp
Window ws XP Start Windows® X Click on the 'Start' button and th en click on 'Co ontrol Panel'. Selec ct and click on n the category y ‘Appearance and Themes’ Click on the 'Displa ay' Item. - Page 39 Selec ct the 'Settings s' tab then clic ck on the 'Adv anced' button Selec ct 'Monitor' tab If the 'Proper rties' button is inactive, it me eans your mon nitor is properl ly configured. Please stop in nstallation. If the 'Proper rties' button is s active, click o on 'Properties'...
- Page 40 Selec ct the 'Install f rom a list or s pecific locatio n [advanced]' radio button a and then click on the 'Next' button. Selec ct the 'Don't S earch. I will ch hoose the driv ver to install' ra adio button.
-
Page 41: Windows 2000
Windows 2000 Start Windows® 2000 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. If the 'Properties' button is active. -
Page 42: I-Menu
i-Men Welcome to “i-Menu” so oftware by AO OC. i-Menu ma akes it easy to o adjust your m monitor display y setting by us sing on screen me enus instead o of the OSD bu utton on the m monitor. -
Page 43: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 44: Screen
Screen+ Welcome to "Screen+" software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. -
Page 45: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press for auto adjust. - Page 46 Move electrical devices that may cause electrical interference as far away Picture Bounces, Flickers Or from the monitor as possible. Wave Pattern Appears In The Use the maximum refresh rate your monitor is capable of at the resolution Picture you are using. The Computer Power Switch should be in the ON position.
-
Page 47: Specification
Specification General Specification I3284VWH Model name Driving system TFT Color LCD Viewable Image Size 80.1cm diagonal 0.36375(H)mm x 0.36375(V)mm Pixel pitch Panel Video R, G, B Analog lnterface & HDMI lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock... -
Page 48: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) IBM MODES 640x350@70Hz 31.469 70.087 640x480@60Hz 31.469 59.940 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.00 IBM MODES 640x480@67Hz 35.000 66.667 MAC MODE VGA 720x400@70Hz 31.469 70.087 800x600@56Hz 35.156 56.250 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077... -
Page 49: Pin Assignments
Pin Assignments 15-Pin Side of the 15-Pin Side of the Pin Number Pin Number Signal Cable Signal Cable Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal 24-Pin Color Display Signal Pin Number Pin Number Cable... - Page 50 Pin No. Signal Na Pin No. Signal Name Pin No. Signal Name TMDS Data a 2+ TMDS Data 0 DDC/CEC Gro ound TMDS Data a 2 Shield TMDS Clock + +5V Power TMDS Data TMDS Clock S Shield Hot Plug Dete TMDS Data a 1+ TMDS Clock...
-
Page 51: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 52: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 53: Weee Declaration
E Decla aration Disposal o of Waste Equ ipment by Use ers in Private Household in the European n Union. This symb bol on the pro duct or on its packaging ind dicates that thi is product mus st not be dispo osed of with y your other household... -
Page 54: Epa Energy Star
EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. (FOR EPA CERTIFIED MODELS) -
Page 55: Service
The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: •... - Page 56 If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
-
Page 57: Warranty Statement For Middle East And Africa (Mea)
During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,... - Page 58 • Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center • Improper environments like humidity, water damage and dusts • Damaged by violence, earthquakes and terrorist attacks • Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other...
-
Page 59: Aoc International (Europe) B.v
No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. -
Page 60: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 61 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
-
Page 62: Ease Programe
*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
