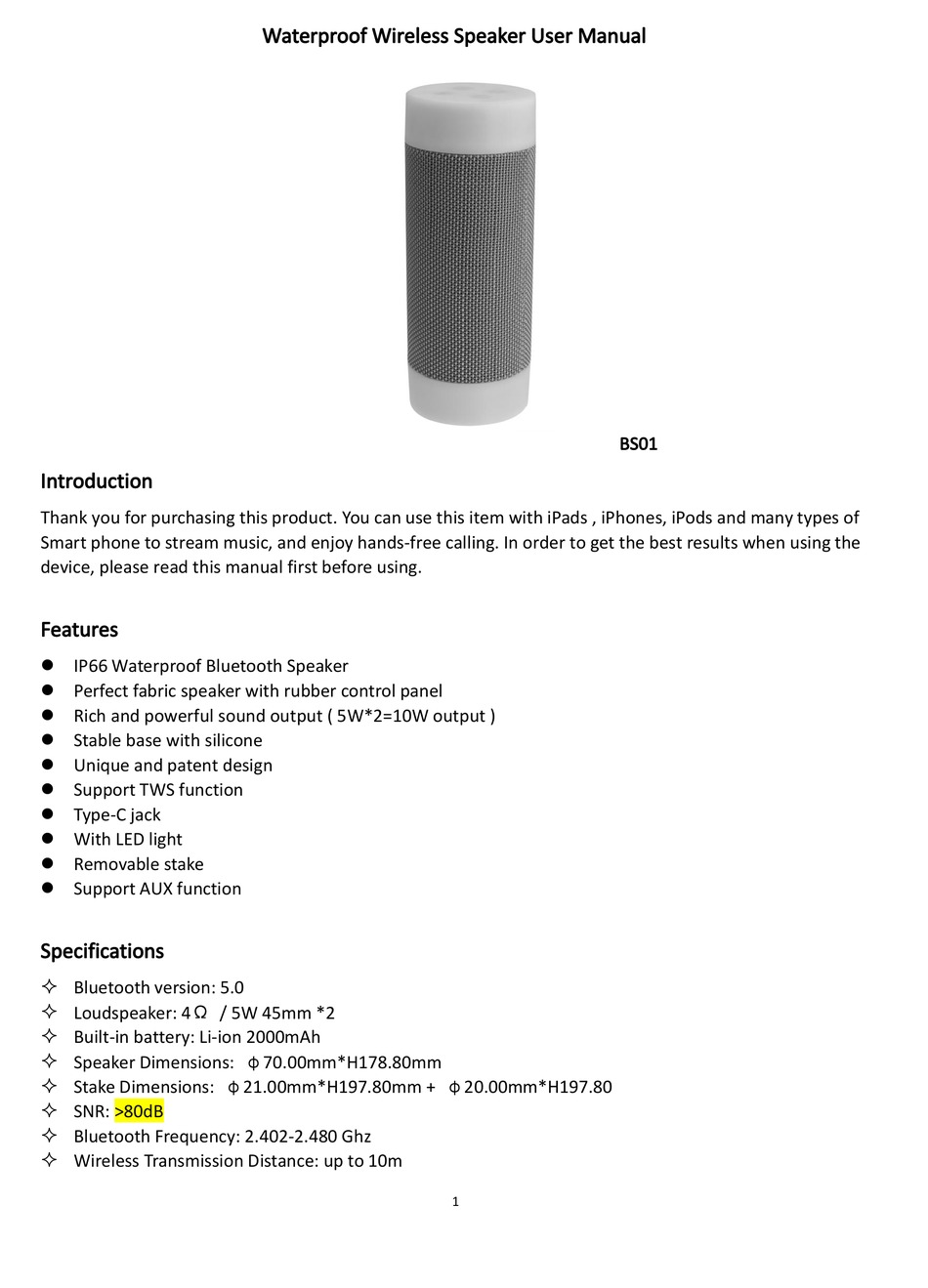

Waterproof Wireless Speaker User Manual
BS01
Introduction
Thank you for purchasing this product. You can use this item with iPads , iPhones, iPods and many types of
Smart phone to stream music, and enjoy hands-free calling. In order to get the best results when using the
device, please read this manual first before using.
Features
IP66 Waterproof Bluetooth Speaker
Perfect fabric speaker with rubber control panel
Rich and powerful sound output ( 5W*2=10W output )
Stable base with silicone
Unique and patent design
Support TWS function
Type-C jack
With LED light
Removable stake
Support AUX function
Specifications
Bluetooth version: 5.0
Loudspeaker: 4Ω / 5W 45mm *2
Built-in battery: Li-ion 2000mAh
Speaker Dimensions: φ70.00mm*H178.80mm
Stake Dimensions: φ21.00mm*H197.80mm + φ20.00mm*H197.80
SNR: >80dB
Bluetooth Frequency: 2.402-2.480 Ghz
Wireless Transmission Distance: up to 10m
1
Advertisement
Table of Contents
Related Manuals for KINGTA TECHNOLOGY BS01
Summary of Contents for KINGTA TECHNOLOGY BS01
- Page 1 Waterproof Wireless Speaker User Manual BS01 Introduction Thank you for purchasing this product. You can use this item with iPads , iPhones, iPods and many types of Smart phone to stream music, and enjoy hands-free calling. In order to get the best results when using the device, please read this manual first before using.
- Page 2 Charging time : Approx. 3 hours Weight: kg Charging: 5 V, 500mA Package contents 1* Waterproof IP66 speaker 1* USB to Type-C charging cable - 50cm 1* 3.5mm to 3.5mm AUX cable - 50cm 2* Removable stakes 1* User manual Important Safety Precautions When using your Bluetooth Mobile Speaker, basic safety precautions should always be followed, including...
- Page 3 A Quick Look At Your Speaker 1. Phone Button: A) Accepting or ending a call (during music playback included): Upon hearing the incoming call tone, press the Phone Button once to answer the call. This will also pause your music. Press the Phone Button again to end the call.
- Page 4 Setting the lighting mode: Short press on the Lighting Effects button cycles the speaker lighting between Off and 5 effect modes. A) Slow transition for all LED colors B) Solid white(LED color) C) Dancing mode to the music D) Each LED color on its own E) Blinking white 3.
- Page 5 Connection waiting mode 1. If the speaker is powered on and no Bluetooth device is available for pairing, the speaker will enter ' Connection Waiting Mode'. If a Bluetooth device becomes available, press the On/Off button to connect automatically. 2. If no Bluetooth device becomes available, the speaker will power off automatically after ten minutes.
- Page 6 Trouble shooting 1. The speaker does not turn on. A) Charge the speaker. If the speaker does not turn on even after charging, contact customer service at www.xxxx.com 2. The speaker does not charge. A) Check whether the USB charging cable has been properly connected to the speaker and the power source. B) Check whether the PC power is on and that it is properly connected.
- Page 7 FCC Requirement changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
