Celestion FTR Range FTR15-3070E Specifications

FTR15-3070E
• 400Wrms continuous power handling (measured to AES Standard)
• Flexirol™ technology for greater excursion control
• Saturated gap technology for lower harmonic distortion
• Low frequency response, down to 40Hz
• Smart chassis design minimises acoustic distortion
• Specially treated weather-resistant cone

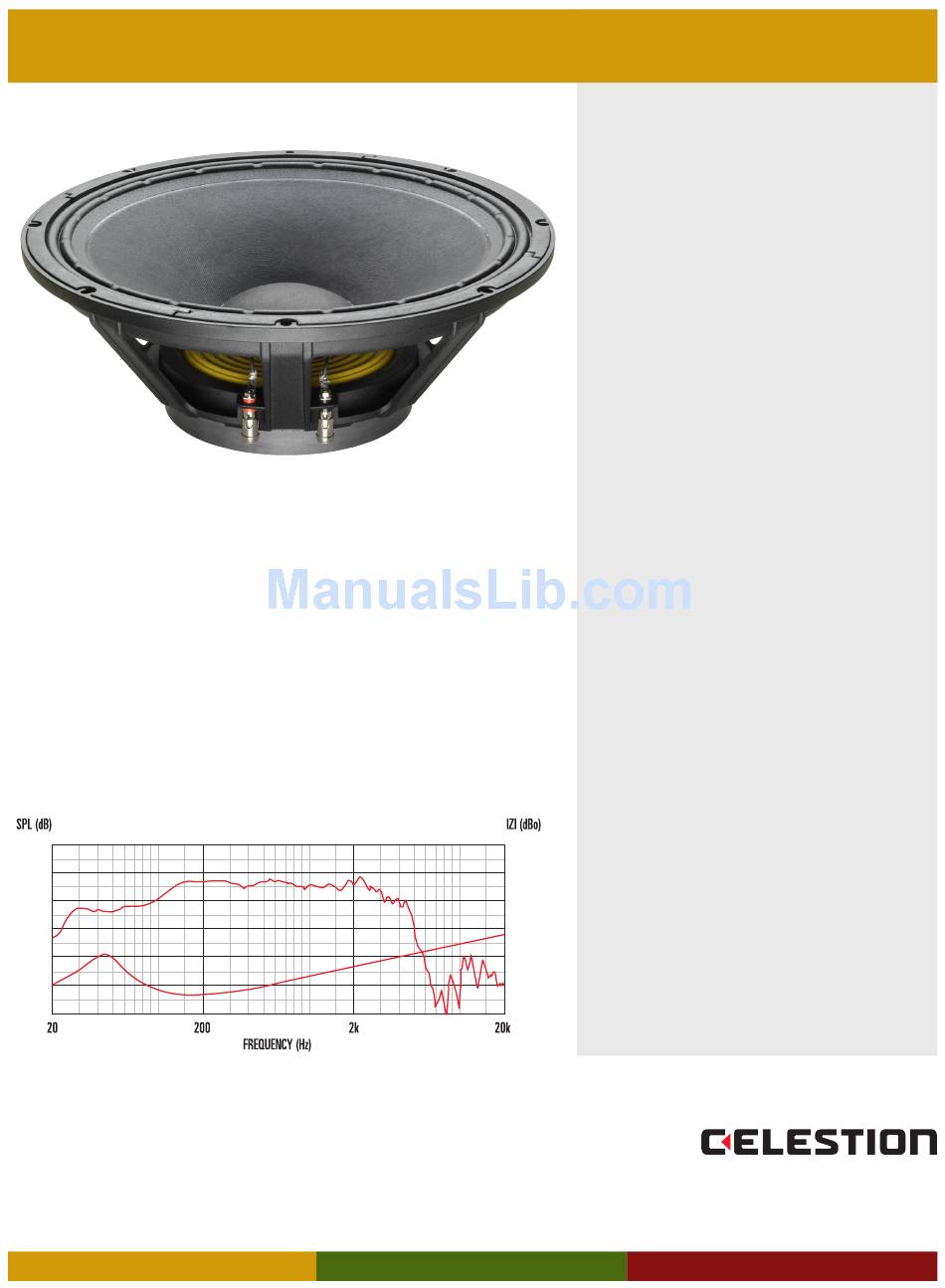

Frequency Response and Impedance Curves
110
90
70
Celestion International Ltd, Claydon Business Park, Great Blakenham, Ipswich IP6 ONL, UK
+44 (0)1473 835300 sales@celestion.com www.celestionprofessional.com
Celestion adopts a progressive policy and reserve the right to alter drive unit specifications and/or appearance without prior notice 08/05
70
50
30
Measured - 1W @ 1m, 2π
General Specifications
Nominal diameter (mm/in) .......................................381/15
Power Rating (AES, W rms)...........................................400
Nominal impedance ( Ω ) ...................................................8
Voice coil diameter (mm/in) ...................................76.2/3.0
Magnet type .............................................................Ferrite
Chassis type ...............................................Cast aluminium
Sensitivity (dB) ...............................................................97
Frequency range (Hz) ............................................40-4000
Coil material..................................................Round copper
Former material..................................................Glass fibre
Cone material.................................Glass loaded paper with
...........................................weather resistant impregnation
Surround material............................................Cloth-sealed
Suspension...............................................................Single
Xmax (mm/in) .......................................................5.5/0.22
Gap depth (mm/in)................................................9.0/0.35
Voice coil winding width (mm/in)..........................20.0/0.79
Small Signal Parameters
D (m/in)..............................................................0.33/8.38
F (Hz) ........................................................................45.3
s
M (g/oz)........................................................74.54/2.63
md
M (g/oz).....................................................14.149/0.499
air
Q ............................................................................3.07
ms
Q .............................................................................0.46
es
Q .............................................................................0.40
ts
R ( Ω ) ........................................................................5.36
e
V (lt/ft 3 ) ........................................................143.85/5.08
as
BI (Tm) .....................................................................17.24
C (mm/N) ................................................................0.14
ms
R (kg/s) ...................................................................8.22
ms
L (mH) ........................................................................ 1.3
e
Mounting Information
Overall diameter (mm/in) ....................................385/15.16
Overall depth (mm/in)...........................................161/6.34
Cut-out diameter (mm/in) ...................................351/13.82
Mounting slot dimensions (mm/in)..........7 x 10/0.28 x 0.39
Number of mounting slots ................................................8
Mounting slot PCD range (mm/in) .....365-375/14.37-14.76
Unit weight (kg/lb).................................................6.4/14.1
Packed Dimensions & Weight
Single pack size W x D x H (mm/in) ...........435 x 435 x 200
............................................................./17.1 x 17.1 x 7.9
Single pack weight (kg/lb) .....................................7.7/17.0
Multipack (36) size W x D x H (mm/in) ..........1210 x 1050 x
.....................................................980/47.6 x 41.3 x 35.4
Multipack (36) weight (kg/lb) .................................278/613
