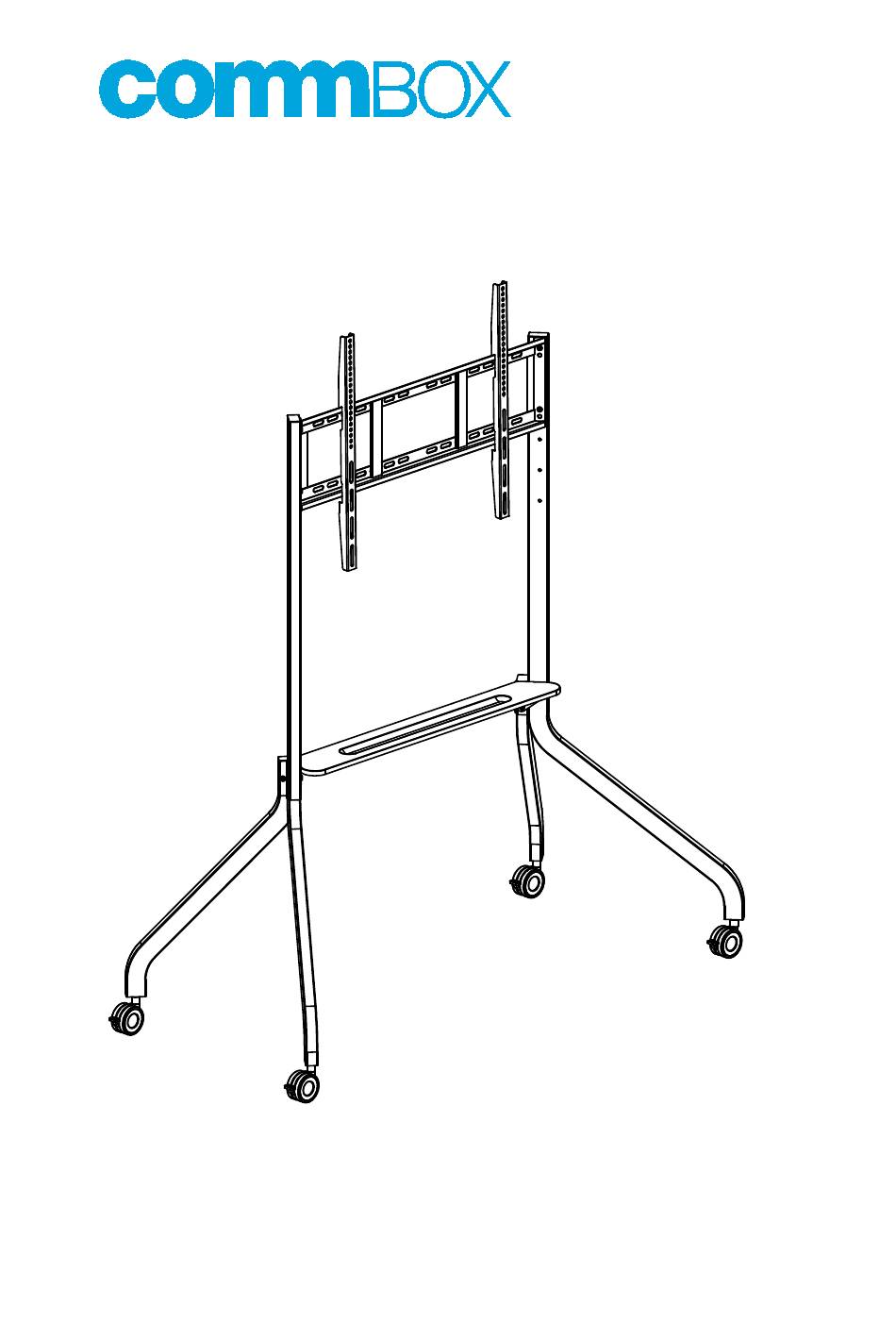

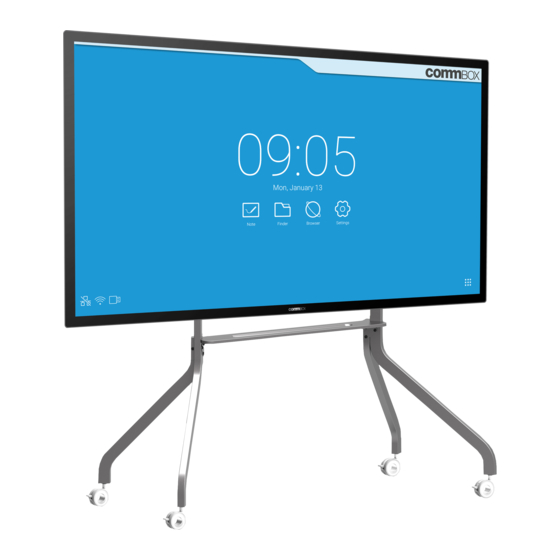

- Page 1 Elegance Installation Manual SKU:CBMOBE Suitable for 55" to 86" Screens Load capacity 80 Kg...
- Page 2 Parts Identification: E- Bracket 2pcs D- Right rear C- Left rear leg 1pc leg 1pc F- Tray 1pc G- Wall plate 1pc A- Left front B- Right front leg 1pc Hardware ldentification Hex bolt M8*40 4PCS M8*16 12PCS Hex bolt 4PCS M10 Washer Ø...
- Page 3 Step 1: Assemble 5 wheels to four legs(A,B,C,D) (as figure below) Step 2: Assemble C left rear leg to A left front leg, and assemble D right rear leg to B right front leg (as figure below)
- Page 4 Step 3:Install the wall panel G on upper column A,B (as figure below) Step 4: Assemble 2pcs suitable bolts to the column C.D, do not lock: Then hang the tray F on the column and lock tightly by 6pcs bolts (As figure below) 5mm reference size...
- Page 5 Step 5: Attach bracket E to the back of the interactive smart panel with included screws , then hang the panel on the wall panel G, and lock the safet screw.(As figure below) e/f/g...
- Page 6 Step 6: Finished.(as figure below)
- Page 7 Product dimensions:...
