High Flo Heated Respiratory Humidifier
User Manual
Vincent Medical Manufacturing Co., Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inspired O2FLO and is the answer not in the manual?

Questions and answers

Related Manuals for Vincent Medical Manufacturing inspired O2FLO

Summary of Contents for Vincent Medical Manufacturing inspired O2FLO

  • Page 1 High Flo Heated Respiratory Humidifier Vincent Medical Manufacturing Co., Ltd. Flat/RM B2, 7/F., Hang Fung Industrial Building, Phase 2, 2G Hok Yuen Street, Hung Hom, Kowloon, Hong Kong Tel: +852 2365 5688 User Manual Fax: +852 2765 8428 +852 2365 5688 +852 2186 1010 Vincent Medical Manufacturing Co., Ltd...
  • Page 2 Please keep this manual for future reference. This manual and its corresponding intellectual property rights belong to Vincent Medical Manufacturing Co., Ltd. Without written consent, any individu- al or organization must not copy, modify, or translate any part of this manual.

  • Page 3: Table Of Contents

    Contents 1. Warnings and Cautions 4. Product Maintenance 1.1 Intended Use 4.1 Filter Replacement 1.2 Product Features 4.2 Main Unit Cleaning inspired™ O2FLO Parts, Features and Speci cation 4.3 Temperature Probe Cleaning and Disinfection 2.1 inspired™ O2FLO Main Unit 4.4 Troubleshooting 2.2 Package Content 4.5 Maintenance Statement 2.3 Optional Medical Accessories (Sold Separately)

  • Page 4: Warnings And Cautions

    1. Warnings and Cautions Warnings • The device is for use with spontaneously breathing patients and not for life support. Read this manual before use. Keep this instruction manual available for future reference. • Continuous monitoring of blood oxygen concentration of the patient is required while using this device.
  • Page 5 • The operator or responsible department should contact Vincent Medical or a • Do not apply excessive force to the device. Vincent Medical representative: • Do not drop or subject the device to strong impacts or shocks. —> for assistance, if needed, in setting up, using or maintaining the device, or; •...
  • Page 6 Explanation of Symbols Safety Classification • Type of protection against electric shocks: Class • Degree of protection against electric shock: Type BF applied parts (Patients will come Refer to instruction Consult instructions for use manual in direct contact with nasal cannula during treatment.) •...

  • Page 7: Intended Use

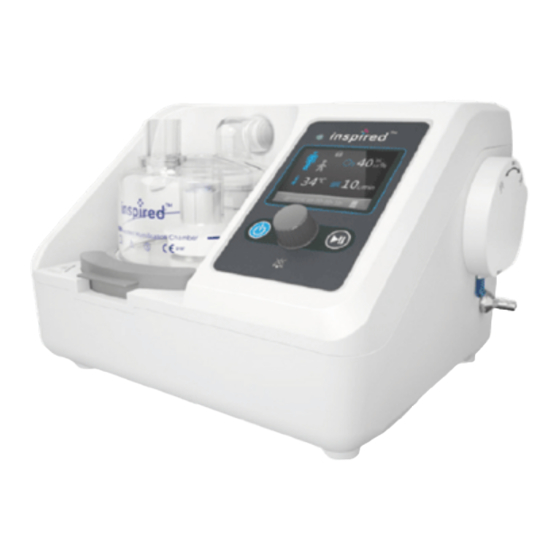

    1.1 Intended Use 2. inspired™ O2FLO Parts, Features The inspired™ O2FLO is intended to deliver warmed and humidified respiratory gases and Speci cation to spontaneously breathing patients with a flow rate from 2LPM to 60LPM and is capable of providing high flow therapy. The device can be used in the emergency 2.1 inspired™...

  • Page 8: Package Content

    2.2 Package Content Name Function Press and hold for 2 seconds to turn on or o the inspired™ Item Unit ① Stand-by Button O2FLO. inspired™ O2FLO 1 PC a. Rotate clockwise or counter-clockwise to highlight settings. Heater Connection Cable 1 PC b.
  • Page 9 Maximum Maximum Single Single Drawing & Product Name HC/HU Period Drawing & Product Name HC/HU Period of Use of Use 51006728 HC & HU 14 days 510-091 Paediatric Heated Breathing Circuit 51007895 HC & HU 14 days Heated Breathing Circuit Kit (3PIN Adult) 51006765 HC &...

  • Page 10: Control Panel

    2.4 Control Panel Icons Icon Name Function Select to run in Adult Mode. Adult breathing circuit Adult Mode and adult high ow nasal cannula must be used in Status LED Adult Mode. Select to run in Paediatric Mode. Paediatric breathing Paediatric Mode circuit and paediatric high ow nasal cannula must be LCD Display...

  • Page 11: Speci Cation

    2.5 Specification 3. inspired™ O2FLO Operating Instruction Power Input 100-240V , 50/60Hz 3.1 Preparation before Use Power 300VA 1) Install the autofeed humidification chamber by pressing down the chamber lock and Flow Rate Range (Adult Mode) 10~60L/min sliding the chamber into position sitting on the heater plate. Once the chamber is in the correct position, the chamber lock will click into place with the chamber inlet Flow Rate Range (Paediatric Mode) 2~25L/min...
  • Page 12 Warning: Flowmeter Temperature Heater probe port (blue) • Replace chamber if water fill exceeds maximun level. connection Temperature probe • Disconnect water supply when machine is not running. cable • Do not use tap water, saline water or glucose water. Use sterile water for inhalation only. •...

  • Page 13: Device Setup

    5) Parameter Setting 3.2 Device Setup Step 1: Rotate the control knob to highlight the lock icon Press control knob to unlock 1) Plug in the power cord. 2) Press and hold the power button for 2 Step 2: Rotate the control knob to highlight the mode icon seconds to start the inspired™...
  • Page 14 Flow to Patient (L/min) If oxygen supply has not been turned Flow- meter Ensure oxygen is off and oxygen concentration is higher (L/min) not flowing than 25%, a window will appear. User FiO2: must discontinue oxygen supply before stopping the device from running. Run time 00 00 00 15 8) Adjusting oxygen concentration levels Connect the oxygen tube between the owmeter (connected to oxygen supply) and...

  • Page 15: Humidi Cation Treatment

    9) Adjusting settings during operation. Step 5: When the unit is running, “Dew Point Follow the steps 1~3 to change dew point Temperature”, “Flow Rate”, “Oxygen temperature or oxygen concentration Concentration Alarm Upper Limit”, and alarm limits. “Oxygen Concentration Alarm Lower Limit” If no action has been made for 10 minutes, can be adjusted.

  • Page 16: Alarms

    • Time Setting • Device Information Time Setting Select and highlight “Time”. Press the control Select and highlight “Info”. Press the control knob to enter the time settings page. Set knob to show device information including High Flow Heated time Y-M-D-H-M-S. Date: 2000-01-01 serial number, model number and software...
  • Page 17 • Alarm Alert List Alarm Alarm Silence Meaning Delays Action Alarm Alarm Silence Information Priority Able Meaning Delays Action Information Priority Able Adult Mode selected Check if the breathing circuit Press the pause button to stop the when peadiatric Incompatible unit running.

  • Page 18: After Use

    * When the alarm occurs, please follow the action in Alarm Alert List and Troubleshooting to Alarm Alarm Silence Meaning Delays Action clear the alarm. Information Priority Able If the dew point temp. is 2°C below the target temp., • Checking alarm system functionality decrease the target ow rate.

  • Page 19: Data Record Software

    3.7 Data Record Software Edit patient information. Name, age and gender are required. The SD card in the SD card slot allows real time usage data of the machine to be recorded. Help The SD card can be removed by pressing the SD card in. It will then spring out. Time Setting Basic Info.
  • Page 20 Alarm Information and work information An example of Usage Time Chart is shown below. Note: A warning will be displayed on the LCD screen when the log becomes full. Basic Info. Usage Time Detail Charts Alarm Info Work Info Help Usage Time Start Setting Alarm Info Work Info...

  • Page 21: Product Maintenance

    4.2 Main Unit Cleaning 4. Product Maintenance Clean main unit, heater connection cable and VUN-300 connection cable with 75% ethanol solvent to wipe the surface of equipment. Warning: Do not immerse the main unit in liquid. The device should be properly maintained throughout its expected service life. Visual Warning: Do not use corrosive solvents to clean the surface of the main unit.

  • Page 22: Troubleshooting

    4.5 Maintenance Statement For any repair or change of components, please contact Vincent Medical or your local authorized supplier. Vincent Medical will provide device related documents to assist service personnel in parts repair. Installers and operators must follow the instructions of installation, operation, inspec- The temperature probe can withstand about 500 cycles of cleaning and disinfec- tion and maintenance.

  • Page 23: Main Unit Leakage Test

    4.7 Main Unit Leakage Test 5. EMC Information Install a VHC60 chamber to the device. Connect the spike to a water bag. Tightly cover the chamber outlet with cap. Run the machine ensuring no gas is escaping through the chamber outlet. The stable flow rate displayed on screen should be less than 1 L/min The electromagnetic compatibility (EMC) of the inspired™...

  • Page 24: Guidance & Declaration - Electromagnetic Immunity

    5.3 Guidance & Declaration - Electromagnetic Immunity 5.2 Guidance & Declaration - Electromagnetic Immunity Concerning Conducted RF & Radiated RF Guidance & Declaration - Electromagnetic Immunity Guidance & Declaration - Electromagnetic Immunity The model VUN-001 is intended for use in the electromagnetic environment specified The model VUN-001 is intended for use in the electromagnetic environment specified below.

  • Page 25: Recommended Separation Distances Between Portable

    0,23 0,38 0,38 0,73 Customer Service Contact Information Vincent Medical Manufacturing Co., Ltd. Flat/RM B2, 7/F., Hang Fung Industrial Building, Phase 2, 2G Hok Yuen Street, Hung Hom, Kowloon, Hong Kong Tel: +852 2186 1010 E-mail: service@inspired-medical.com For transmitters rated at a maximum output power not listed above, the recommend- Website: www.inspired-medical.com...
