Summary of Contents for Vincent Medical Manufacturing inspired VHB10A

  • Page 1 Vincent Medical Manufacturing Co., Ltd.
  • Page 3 1.0 Introduction 2.0 Specifications 2.1 Power Requirements 2.2 Dimension and Weight 2.3 Environment 2.4 Useful Information 2.5 Average Failure-Free Operation Time 3.0 Foreseeable Safety Warnings 3.1 Attentions, Cautions and Warnings 3.2 Symbols 3.3 Product Assembly Drawing 3.4 Explanation of Symbols on the User Interface (front label) 4.0 Temperature Control 4.1 Temperature Setting Range 4.2 VHB10A Humidifier Power...
  • Page 4 6.0 Safety Characteristics 6.1 Mechanical Protection Against Overheating 7.0 General Maintenance 7.1 Basic Inspection 7.2 Cleaning the Humidifier 7.3 Storage and Transportation 8.0 Trouble-Shooting 9.0 Performance Parameters of VHB10A Humidifier 10.0 EMC Related Explanation 10.1 Guidance and Manufacturer Declaration Electromagnetic Emissions 10.2 Guidance and Manufacturer Declaration-Electromagnetic Immunity-for ALL ME EQUIPMENT and ME SYSTEMS 10.3 Guidance and Manufacturer Declaration-Electromagnetic...

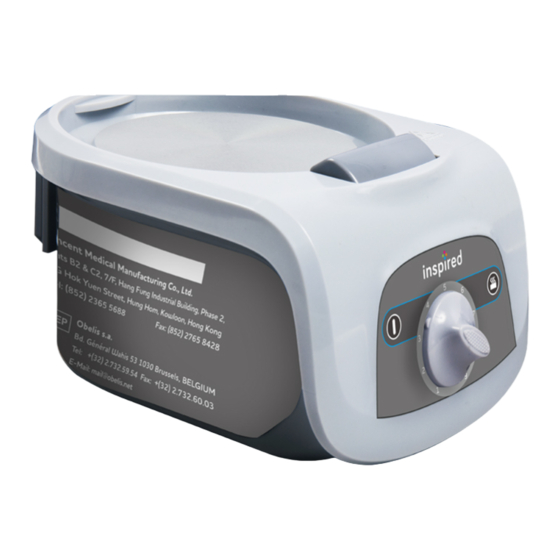

  • Page 5 Introduction VHB10A Humidifier is a temperature controlled type humidifier, it is intended to be used with Ventilator or Air-supply device by connecting a humidifier with humidification chamber and breathing circuit between Ventilator and Air-supply device, heated humidification is supplied to the patient end.
  • Page 6 Maintenance and Inspection should be carried out by qualified and trained technicians. Use parts recommended by Vincent Medical Manufacturing Co., Ltd. Use appropriate power source, ensure the correct grounding is done. 2.5 Average Failure-Free Operation Time is 1,000 hours Read carefully and understand this operator manual thoroughly before using the VHB10A.These information are applicable to the humidifier and...
  • Page 7 steps and techniques that are regarded as important and needed to be emphasized. Warning: This equipment can only be used by trained personnel: the humidifier and its accessories can only be used under the prescriptions and guidance of physicians, and be operated by the trained clinicians / physicians.
  • Page 8 Warning: Operation: Before connecting the equipment to the patient, make sure the ventilator or the air delivering device is operating normally, and is inspected for proper flow and pressure. Warning: Danger of Explosion: Do not use the equipment with the flammable gas or anesthetic agents, as such use may lead to explosion.
  • Page 9 Warning: Maintenance or repair: The maintenance or repair should be carried out by a qualified technician that is familiar with the equipment, electronic circuits and medical electrical equipments, and is trained for mainte- nance or repair. As danger of electric shock may occur, all repair works should be done by appropriate personnel.
  • Page 10 to use breathing circuits with water traps. After a period of time, if use condensed water will be generated in the breathing circuit. The condensed water should be removed from the breathing circuit carefully. It is recommended that the breathing circuit should be installed with a water trap to help remove the condensed water.
  • Page 11 Heater plate Micro switch Internal Heater Cord clamp Bracket temp. detector assembly bracket plate assembly Chamber lock Main PCB Screw Bottom case Stretch gasket Button assembly Connecting Registered Thermostat Spring Power switch Washer line information label assembly Button Transpatent Top case Screw Transformer seat...
  • Page 12 3.4 Explanation of the symbols on user interface (front label) VHB10A User interface Temperature Setting Range The range for heater plate temperature setting: 45℃~80℃ 4.1.1 Power Indicator When power switch is on, the left power indicator will Iight on in green continuously. 4.1.2 Heating Indicator When the humidification chamber is installed to the humidifier, the indicator on the right will...
  • Page 13 5.0 Installation and Operating Instruction Installation of VHB10A Humidifier and Chamber. 5.1.1 Use the accessories provided with the equipment for the installation. 5.1.2 Inspect the humidifier, ensure the humidifier is clean and dry. 5.1.3 Add sterilized water into the chamber, until the water level reach the maximum water level line indicated on the chamber.
  • Page 14 5.1.5 Connect the air supply breathing tube to the inlet of the chamber. 5.1.6 Connect the inspiratory limb to the outlet of the chamber Water trap INSP Breathing tube circuit Humidifier Water trap Heater base 5.1.7 Install the temperature monitoring device (thermometer, temperature sensor, etc.) to the patient end of the inspiratory limb.
  • Page 15 5) Do not use the device with the flammable anesthetic gases, as this may cause explosion. 6) Use the device only with the Vincent Medical Manufacturing Co., Ltd. humidification chambers and breathing circuits as recommended by the manufacturer.
  • Page 16 the operation mode of the humidifier. Heater plate temperature setting range: 45 ~ 80 degree Celsius. 5.2.5 Refer to the relevant section of this manual for the humidifier control, monitor, alarm and setting information. 5.2.6 After warm up (warm up means gas temperature reach the setting temperature from 23±2℃, which takes approximately 15 ~ 20 minutes for the gas temperature to be stabilize), confirm and ensure the gas is delivered to the patient end through the inspiratory tube...
  • Page 17 be positioned at a lower level. It is also recommended that the breathing circuit should be equipped with water trap to collect condensed water. 4) Do not touch the heater plate. The surface temperature of the heater plate may exceed 85 ℃. 5) Before connecting the breathing circuit to patient, make sure the temperature indicated in the patient airway is correct.
  • Page 18 2) Do not touch the heater plate, the surface temperature of the heater plate may exceed 85 ℃. 5.4 Replace the Filter paper in the VHC25 humidilication chamber (lf applicable) Regarding to the detail of install/remove the filter paper in the humidifi- cation chamber, please refer to the instructions for VHC25 chamber.

  • Page 19: Storage And Transportation

    Storage and transportation between 15%~80% no power 3) Contact local suppler Vincent Medical Manufacturing Co., Ltd 1 The humidification 1) Use the VHC chamber is not installed series chamber as correctly,so the recommended by microswitch under the Vincent Medical heater plate is not Manufacturing Co., Ltd.
  • Page 20 length of compatible 2018-07-09 A10022177 REV.B Page: 18 of 24...
  • Page 21 RF emissions CLSPR 11 RF emissions CLSPR 11 Harmonic emissions IEC 61000-3-2 IEC 61000-3-3 IEC60601-1:1998 IEC 61000-4-2 2018-07-09 A10022177 REV.B Page: 19 of 24...
  • Page 22 Electrostatic fast transient / burst IEC 61000-4-4 Surge IEC 61000-4-5 IEC 61000-4-11 2018-07-09 A10022177 REV.B Page: 20 of 24...
  • Page 23 IEC 61000-4-8 IEC61000-1:1988 IEC 61000-4-6 IEC 61000-4-3 2018-07-09 A10022177 REV.B Page: 21 of 24...
  • Page 24 2018-07-09 A10022177 REV.B Page: 22 of 24...
  • Page 25 2018-07-09 A10022177 REV.B Page: 23 of 24...
  • Page 26 1. When using the VHB10A, the user must install and use the equipment according to the EMC information provided in the accompanying docu- ments. 2. Portable and mobile RF communication equipments can affect the normal operation of VHB10A, so they should be away from VHB10A when VHB10A is in operation.
  • Page 28 Tel: +852 2186 1010 Fax: +852 2765 8428 E-mail: service@inspired-medical.com Website: www.inspired-medical.com Vincent Medical Manufacturing Co., Ltd. Flat/RM B2, 7/F., Hang Fung Industrial Building, Phase 2, 2G Hok Yuen Street, Hung Hom, Kowloon, Hong Kong Tel: +852 2365 5688 Fax: +852 2765 8428...
