Manual for WSNFM400A00 NFC module
1. Introduction
WSNFM400A00 is applied to 13.56MHz contactless communication, including NFC functions.
The core chipsets are from TI, part number TRF7970A and MSP430F5529.
1. 1 Product Information
- Model name : WSNFM400A00
- Operation Temperature : -20℃ ~ +70℃
- Power : +5V ±10% (+4.5V ~ +5.5V)
2. Hardware Architecture:
2.1 Main Chipset Information
Item
NFC Transceiver IC
Mixed Signal
MICROCONTROLLER
2.2 Circuit Block Diagram
The major internal and external block diagram of WSNFM400A is illustrated in Figure 1-1.

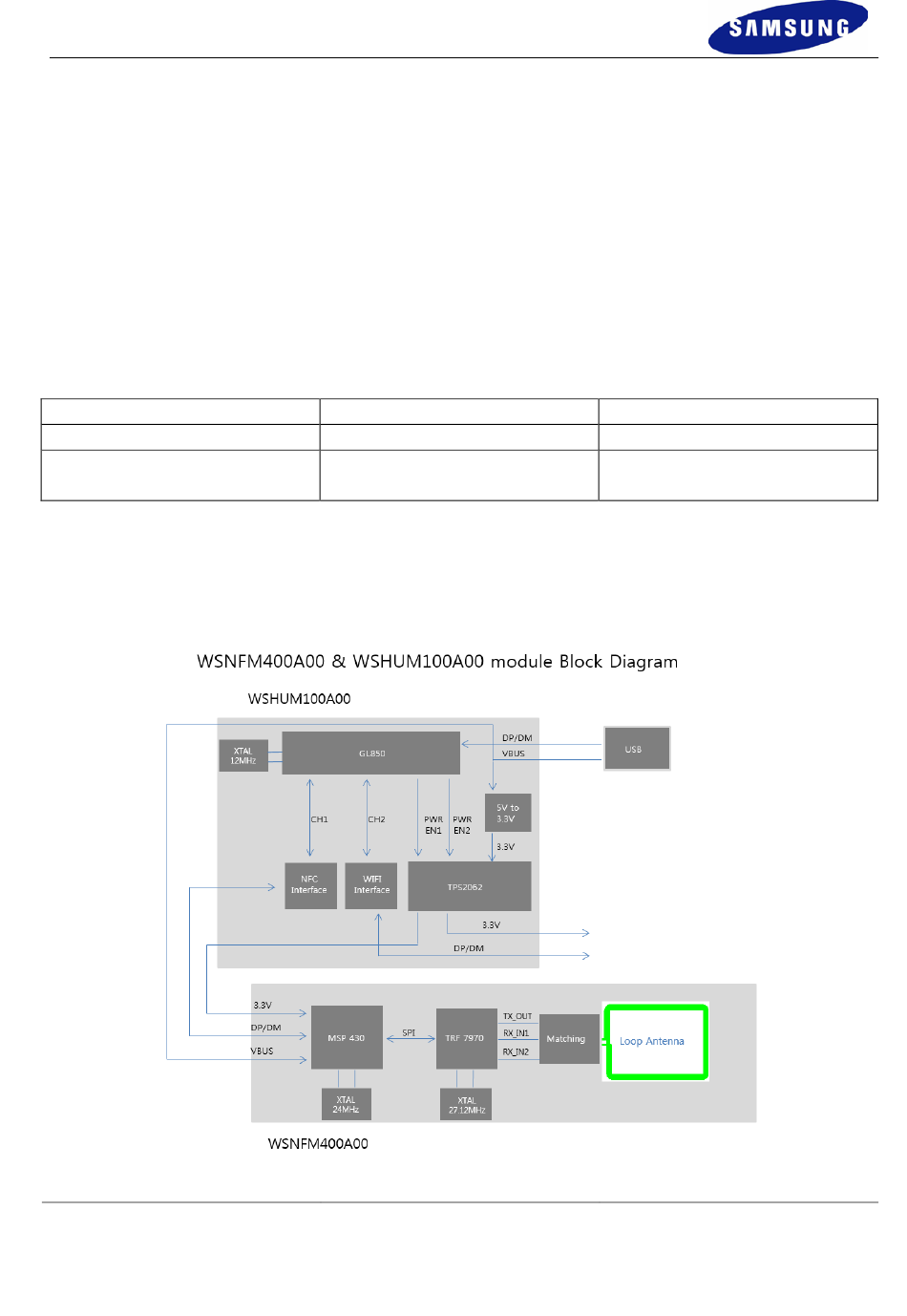

Figure 1-1 WSNFM400A00 block diagram and System Interface
Version 1.0
Vendor
Texas Instruments
Texas Instruments
Samsung Electronics
Part Number
TRF7970A
MSP430F5529
