Ultra View AP-W19 User Manual

19” widescreen lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated LCD display solutions
User Manual
19" Widescreen LCD
AP-W19 / HAP-W19
Aluminum front bezel
NAP-W19 / HNAP-W19
Front NEMA4 / IP65
DP-W19 / HDP-W19
Aluminum Front Panel
OP-W19 / HOP-W19
Universal Mounting Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-W19-Q221V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-W19 and is the answer not in the manual?

Questions and answers

Related Manuals for Ultra View AP-W19

Summary of Contents for Ultra View AP-W19

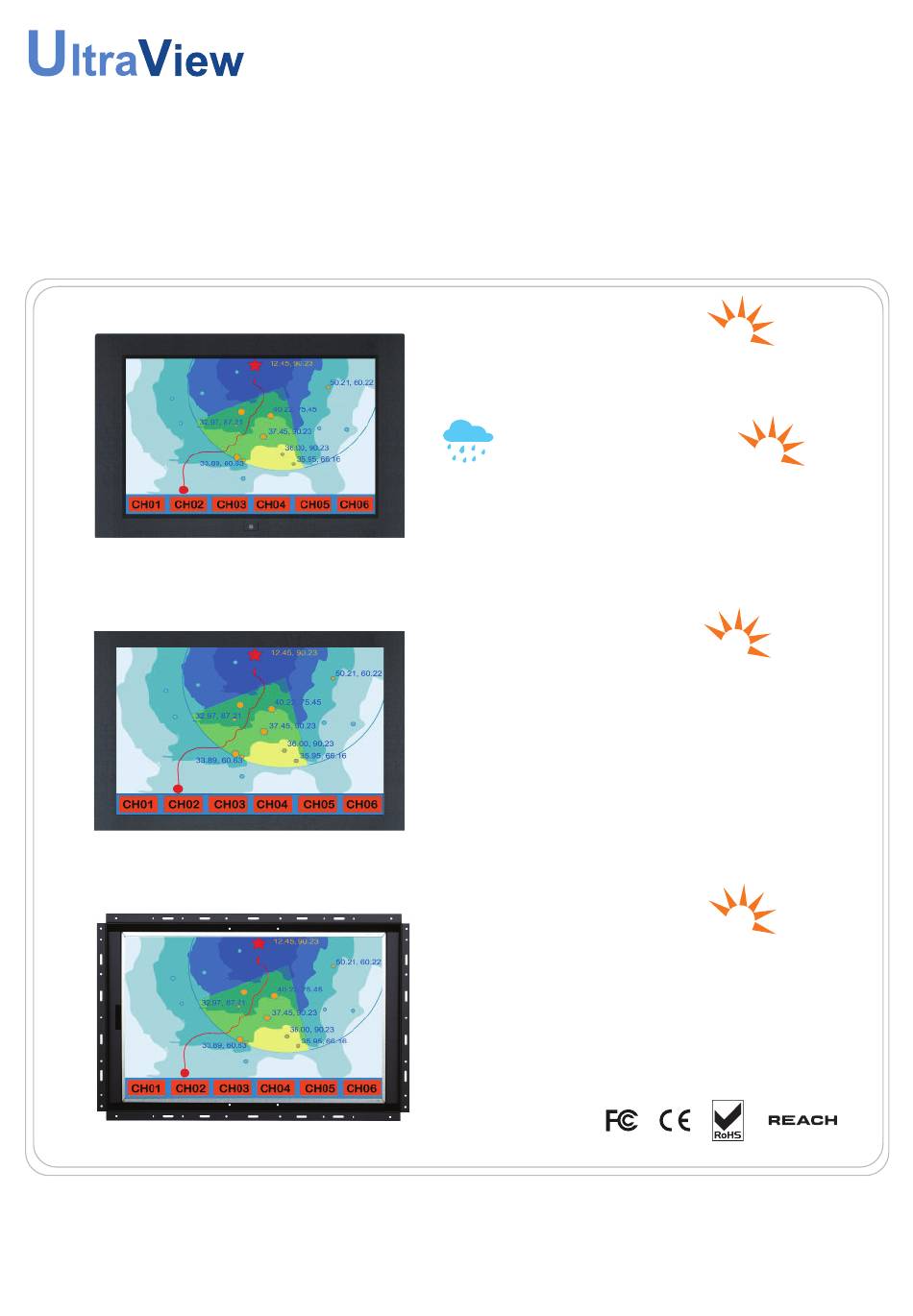

  • Page 1 LCD display solutions User Manual 19” Widescreen LCD AP-W19 / HAP-W19 Aluminum front bezel NAP-W19 / HNAP-W19 Front NEMA4 / IP65 DP-W19 / HDP-W19 Aluminum Front Panel OP-W19 / HOP-W19 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-621-W19-Q221V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, June 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-W19 / NAP-W19 / HAP-W19 / HNAP-W19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-W19 / HDP-W19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 >...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Ap-W19 / Nap-W19 / Hap-W19 / Hnap-W19

    < Part 1 > AP-W19 / NAP-W19 / HAP-W19 / HNAP-W19 < 1.1 > Package Content 19" Widescreen LCD Display AP-W19 / NAP-W19 HAP-W19 / HNAP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1...

  • Page 6: Structure Diagram & Dimension

    < 1.2 > Structure Diagram Front view Side View AP-W19 / NAP-W19 HAP-W19 / HNAP-W19 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker ( for HDMI, Audio or TV option )
  • Page 7 < 1.2 > Dimension 19" Widescreen LCD Display Front View Side View AP-W19 / NAP-W19 HAP-W19 / HNAP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q221V1 www.austin-hughes.com...
  • Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
  • Page 9 < Part 2 > DP-W19 / HDP-W19 19" Widescreen LCD Display < 2.1 > Package Content DP-W19 / HDP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O...
  • Page 10 < 2.2 > Structure Diagram Front view Side View DP-W19 / HDP-W19 Bottom view Rear case LCD panel Rear view 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight DP-W19...

  • Page 11: Part. 2 > Dp-W19 / Hdp-W19

    19" Widescreen LCD Display < 2.2 > Dimension Front View Side View DP-W19 / HDP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q221V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA mount Installation - DP / HDP M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-W19-Q221V1 www.austin-hughes.com...

  • Page 13: Package Content

    < Part 3 > OP-W19 / HOP-W19 < 3.1 > Package Content 19" Widescreen LCD Display OP-W19 / HOP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View OP-W19 / HOP-W19 Bottom view Rear case LCD panel Audio speaker ( for HDMI, Audio or TV option ) Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension...

  • Page 15: Part. 3 > Op-W19 / Hop-W19

    < 3.2 > Dimension 19" Widescreen LCD Display Front View Side View OP-W19 / HOP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q221V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not pro- vided UM-UV-621-W19-Q221V1 P.12 www.austin-hughes.com...
  • Page 17 Intentionally Left Blank UM-UV-621-W19-Q221V1 P.13 www.austin-hughes.com...

  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations Mechanical Design AP-W19 / NAP-W19 / DP-W19 / OP-W19 / HAP-W19 HNAP-W19 HDP-W19 HOP-W19 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005...
  • Page 19 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi cation AP-W19 / NAP-W19 / DP-W19 / OP-W19 / HAP-W19 HNAP-W19 HDP-W19 HOP-W19 Product ( W x D x H ) 508.5 x 65.6 x 338.1...
  • Page 20 Intentionally Left Blank UM-UV-621-W19-Q221V1 P.16 www.austin-hughes.com...

  • Page 21: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 19" Widescreen LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 22 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 23 < 4.2 > On-screen Display Operation ( OSD ) 19" Widescreen LCD Display Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )

  • Page 24: Option Table

    < Part 5 > Options < 5.1 > Option Table AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ SDI *** ✓ ✓ ✓ ✓ ✓ ✓ HDMI * or DVI-D ✓ ✓ ✓ ✓ ✓ ✓ S-Video * + Composite ( BNC ) ✓...
  • Page 25 < 5.2 > Options : 3G / HD / SD-SDI input 19" Widescreen LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 26 < 5.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
  • Page 27 < 5.4 > Options : 19" Widescreen LCD Display AV2.2D Upgrade Options - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
  • Page 28 < 5.5 > AV3.0 Upgrade Options : - HMDI ( HDMI 1.3 / HDCP 1.3 - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in &...

  • Page 29: Projected Capacitive ( 10-Point Touch )

    < 5.6 > Options : Touchscreen & driver 19" Widescreen LCD Display W19" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive Technology Projected Capacitive 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±...
  • Page 30 < 5.6 > Options : Touchscreen & driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
  • Page 31 < 5.7 > Options : DC Power 19" Widescreen LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...

  • Page 32: Tv ( Analog )

    < 5.8 > Options : TV ( Analog ) Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller.
  • Page 33 How to Use RC-2 Remote Controller 19" Widescreen LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 34: Options For Sunlight Readable : Auto Dimming

    < 5.9 > Options for Sunlight Readable : Auto Dimming DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 35 19" Widescreen LCD Display 250 cd/m Brightness 1000 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-W19 HAP-W19 6mm aluminum front bezel 6mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-W19...
  • Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-W19-Q221V1 P.32 www.austin-hughes.com...
