Ultra View AP-K23 User Manual

23” 4k 3480 x 2160 lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated LCD display solutions
User Manual
23" 4K 3480 x 2160 LCD
AP-K23
Aluminum front bezel
NAP-K23
Front NEMA4 / IP65
DP-K23
Aluminum front cover
OP-K23
Universal open frame
Designed and manufactured by Austin Hughes
UM-UV-621-K23-Q119V2
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-K23 and is the answer not in the manual?

Questions and answers

Related Manuals for Ultra View AP-K23

Summary of Contents for Ultra View AP-K23

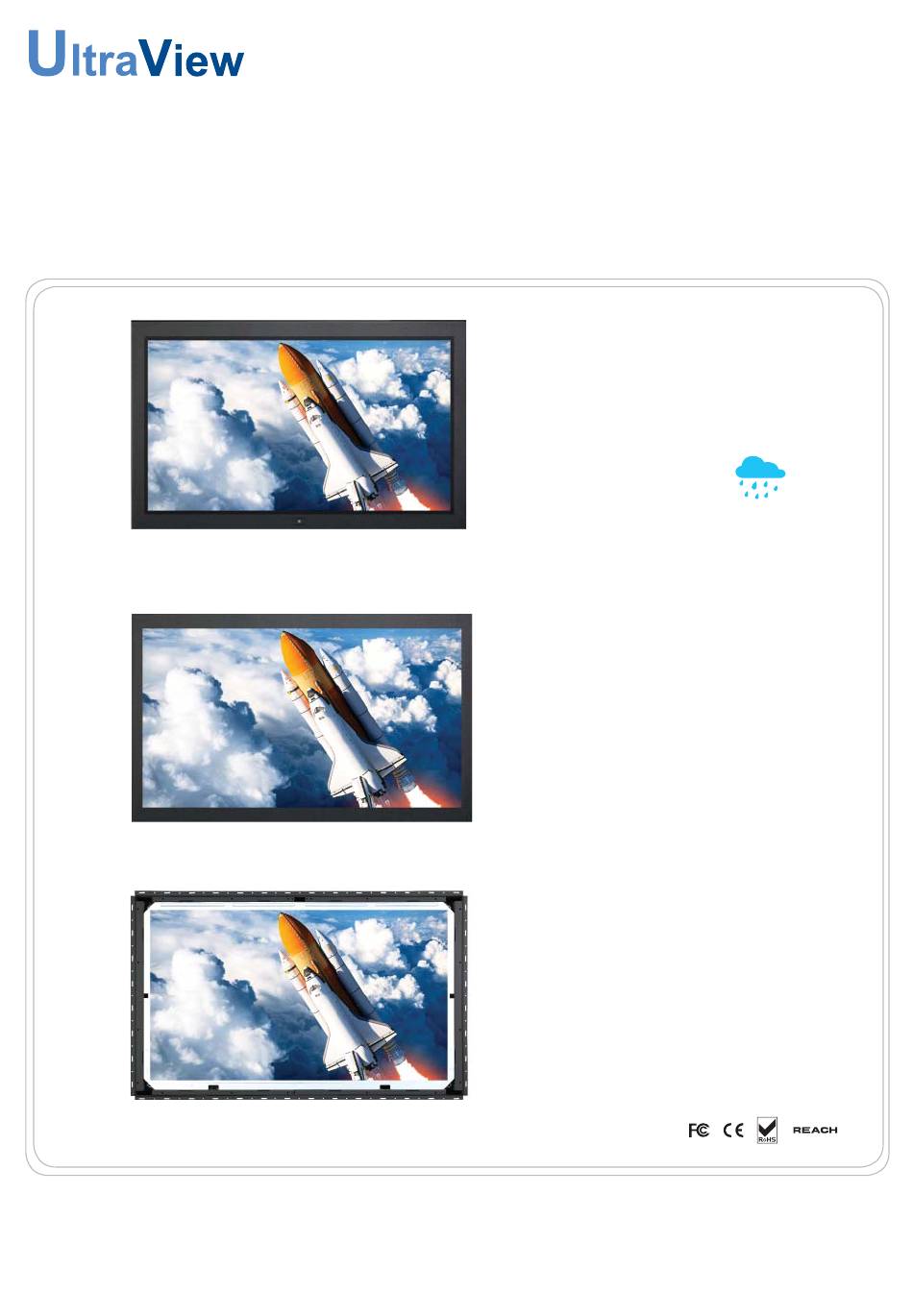

  • Page 1 LCD display solutions User Manual 23” 4K 3480 x 2160 LCD AP-K23 Aluminum front bezel NAP-K23 Front NEMA4 / IP65 DP-K23 Aluminum front cover OP-K23 Universal open frame Designed and manufactured by Austin Hughes UM-UV-621-K23-Q119V2 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, March 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-K23 / NAP-K23 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-K23 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 >...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > AP-K23 / NAP-K23 < 1.1 > Package Content 23” 4K LCD Display AP-K23 / NAP-K23 23” 4K LCD display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack...
  • Page 6 < 1.2 > Structure Diagram Front view Side View AP-K23 NAP-K23 Bottom view Rear case LCD panel Rear view 6mm aluminum front bazel Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)

  • Page 7: Ap-K23 / Nap-K23

    < 1.2 > Dimension 23” 4K LCD Display Front View Side View AP-K23 NAP-K23 UNIT : mm Rear View 1mm = 0.03937 inch Bottom View UM-UV-621-K23-Q119V2 www.austin-hughes.com...
  • Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 9: Package Content

    < Part 2 > DP-K23 23” 4K LCD Display < 2.1 > Package Content DP-K23 23” 4K LCD display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K23-Q119V2 www.austin-hughes.com...

  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side View DP-K23 Bottom view Rear view Rear case LCD panel Front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 562.4 x 59.6 x 341.6 mm...

  • Page 11: Part. 2 > Dp-K23

    < 2.2 > Dimension 23” 4K LCD Display Front View Side View DP-K23 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K23-Q119V2 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA Installation VESA mount ( 100*100mm ) ■ Hardware and M6*4 pcs for VESA mount are not provided UM-UV-621-K23-Q119V2 www.austin-hughes.com...

  • Page 13: Package Content

    < Part 3 > OP-K23 < 3.1 > Package Content 23” 4K LCD Display OP-K23 23” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K23-Q119V2 www.austin-hughes.com...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View OP-K23 Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 581.4 x 57.6 x 360.6 mm...

  • Page 15: Part. 3 > Op-K23

    < 3.2 > Dimension 23” 4K LCD Display Front View Side View OP-K23 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K23-Q119V2 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) Hardware and M6*4 pcs for VESA mounting are not provided UM-UV-621-K23-Q119V2 P.12 www.austin-hughes.com...

  • Page 17: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 23” 4K LCD Display Mechanical Design AP-K23 NAP-K23 DP-K23 OP-K23 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 18 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi cation AP-K23 / NAP-K23 DP-K23 OP-K23 Product ( W x D x H ) 584.2 x 63.6 x 363.6 562.4 x 59.6 x 341.6 581.4 x 57.6 x 360.6...

  • Page 19: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 23” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) 23” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 23 23” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 24: Options

    < Part 5 > Options < 5.1 > Option Table Options AP / NAP Remote controller ✓ ✓ ✓ ✓ ✓ ✓ MCS multi-screen control ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ DC Power ✓ ✓ ✓ MIL-type / lockable connector ✓...

  • Page 25: Remote Controller ( Rc-2 )

    < 5.2 > Remote Controller ( RC-2 ) 23” 4K LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
  • Page 26 < 5.3 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 27 < 5.4 > Options : MCS 23” 4K LCD Display More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...

  • Page 28: Touchscreen & Driver

    < 5.5 > Options : Touchscreen & driver K23" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive IR-06 Infrared Technology Projected Capacitive 5-Wire Resistive Infrared Touch Point Single Input Type Pen, Finger, Finger of Finger or Capacitive Stylus Finger or Stylus gloved hand activation Resolution 4096 x 4096...
  • Page 29 < 5.5 > Options : Touchscreen & driver 23” 4K LCD Display TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2.

  • Page 30: Mil-Type Or Lockable Connector

    < 5.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
  • Page 31 < 5.8 > Options : Quad Display 23” 4K LCD Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate 1.0 Vpp, 75 Ohm x 4 Camera Input Video Input...
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-K23-Q119V2 P.28 www.austin-hughes.com...
